Quick Details
-
Hydraulic Cylinder Brand:
-
Caterpillar
-
Hydraulic Pump Brand:
-
Caterpillar
-
Hydraulic Valve Brand:
-
Caterpillar
-
Engine Brand:
-
Caterpillar
-
Condition:
-
Used
-
original:
-
100% Japan
-
Brand Name:
-
Caterpillar
-
Dimension(Long * Breadth * High):
-
4260*2130*2986mm
Quick Details
-
Year:
-
2016
-
Place of Origin:
-
Japan
-
Machine Weight:
-
10250 KG
-
Hydraulic Cylinder Brand:
-
Caterpillar
-
Hydraulic Pump Brand:
-
Caterpillar
-
Hydraulic Valve Brand:
-
Caterpillar
-
Engine Brand:
-
Caterpillar
-
Condition:
-
Used
-
original:
-
100% Japan
-
Brand Name:
-
Caterpillar
-
Dimension(Long * Breadth * High):
-
4260*2130*2986mm

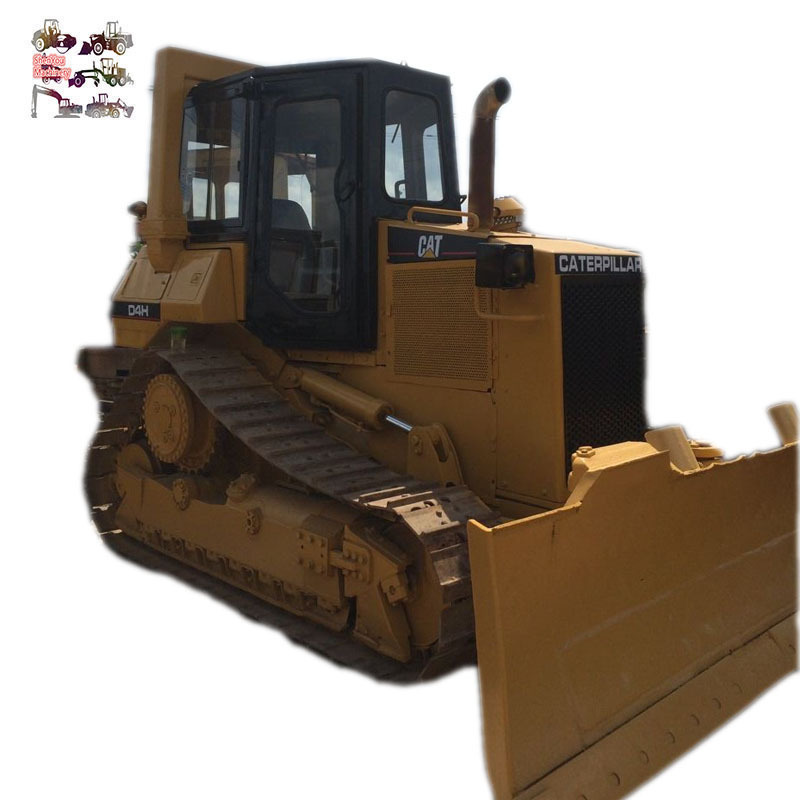

Caterpillar D4H
Used bulldozer for sale
Cheap bulldozer
Location: Shanghai China
Year: 2016
Place of Origin: Japan
Well serviced and maintenance
Low working hours
Guarantee: One year
Specification
|
Engine |
||
|
Make |
Caterpillar |
|
|
Model |
3204 |
|
|
Gross Power |
99 hp |
73.8 kw |
|
Net Power |
95 hp |
70.8 kw |
|
Power Measured @ |
2200 rpm |
|
|
Displacement |
317.3 cu in |
5.2 L |
|
Number of Cylinders |
4 |
|
|
Aspiration |
turbocharged |
|
|
Operational |
||
|
Operating Weight |
22597.4 lb |
10250 kg |
|
Fuel Capacity |
44.1 gal |
167 L |
|
Cooling System Fluid Capacity |
7.1 gal |
27 L |
|
Engine Oil Capacity |
4 gal |
15 L |
|
Hydraulic Fluid Capacity |
17.8 gal |
67.3 L |
|
Final Drives Fluid Capacity |
1.6 gal |
6 L |
|
Operating Voltage |
V |
|
|
Transmission |
||
|
Type |
planetary power shift |
|
|
Number of Forward Gears |
3 |
|
|
Number of Reverse Gears |
3 |
|
|
Max Speed - Forward |
6.3 mph |
10.2 km/h |
|
Max Speed - Reverse |
7.6 mph |
12.2 km/h |
|
Undercarriage |
||
|
Ground Pressure |
7.1 psi |
49.2 kPa |
|
Ground Contact Area |
3168 in2 |
2 m2 |
|
Standard Shoe Size |
18.1 in |
460 mm |
|
Number of Shoes per Side |
39 |
|
|
Number of Track Rollers per Side |
7 |
|
|
Track Gauge |
5.5 ft in |
1680 mm |
|
Hydraulic System |
||
|
Pump type |
Variable-displacement piston pump senses implement load |
|
|
Relief Valve Pressure |
2700 psi |
18615.8 kPa |
|
Pump Flow Capacity |
25 gal/min |
94.6 L/min |
|
Standard Blade |
||
|
Width |
8.5 ft in |
2584 mm |
|
Height |
38 in |
965 mm |
|
Capacity |
2.5 yd3 |
1.9 m3 |
|
Cutting Depth |
16.3 in |
414 mm |
Excellent running condition, be ready to work
Payment Terms: By TT Bank Transfer, 30% deposit+ 70% balance
Delivery time: within 7 working days after your payment
