Quick Details
-
Brand Name:
-
Aetv or OEM
-
Standard or Nonstandard:
-
Standard
-
type:
-
Temperature and Pressure Relief Valve
-
certificate:
-
CE
-
Brass:
-
CW617
Quick Details
-
Port Size:
-
DN15 DN20
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
A101
-
Brand Name:
-
Aetv or OEM
-
Standard or Nonstandard:
-
Standard
-
type:
-
Temperature and Pressure Relief Valve
-
certificate:
-
CE
-
Brass:
-
CW617

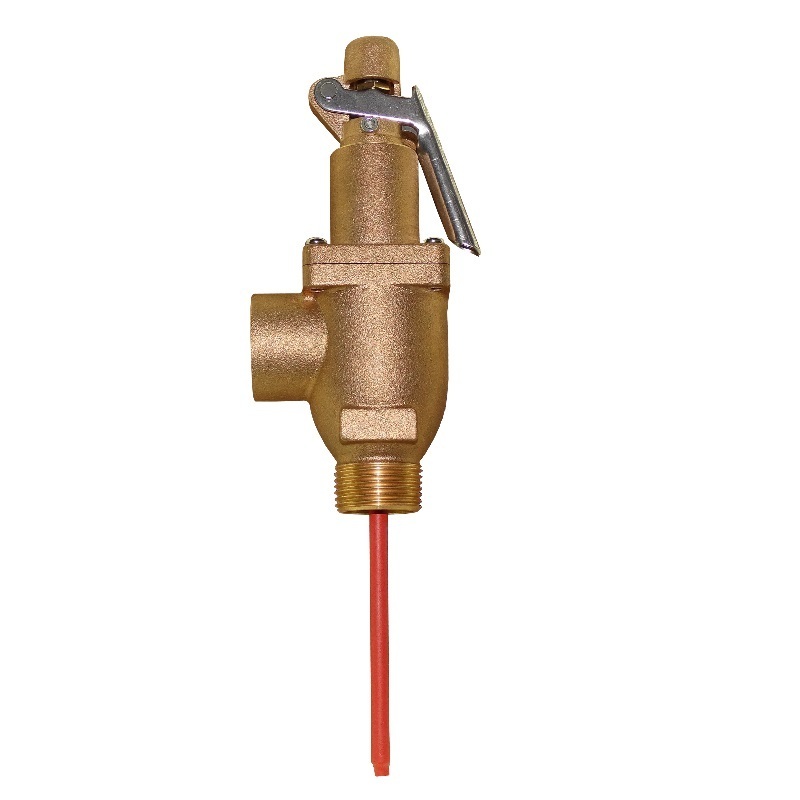

AETV solar water heater brass TP valve
Temperature and Pressure Relief Valve
Application:
Temperature and Pressure Relief Valves are used in Pressurized solar water heater, gas heater, electric water heater, fuel oil water heater, , sensitive function heater, and so on.
Technical Parameters:
Set pressure (MPa):0.5,0.6,0.7,0.8,1.0 differential: +5%,-10% of the set pressure
Set Temperature: to 99
℃(as requested) differential: 99°C-5°C; other set Temperature is ±5°
C
| No. | Description | Material |
| 1 | Temperature sensing element | TP2 |
| 2 | Valve body | CW617N |
| 3 |
Gasket nut |
CW617N |
| 4 | Gasket | NBR |
| 5 | Valva seat | CW617N |
| 6 | Spring | SS304 |
| 7 | Pin Roll | CW617N |
| 8 | Nut | CW617N |
| 9 | Pressure regulating nut | CW617N |
| 10 | O-ring | NBR |
| 11 | Gasket Ring | SS304 |
| 12 | Lever | SS304 |
We can produce stainless steel T&P valve.
Please contact us.
