- Product Details
- {{item.text}}
Quick Details
-
Processor Core:
-
Dual Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YCT
-
Model Number:
-
YCT-079
-
Power:
-
15W
-
Operating System:
-
Win7/8/10
-
Processor Type:
-
J1900 /J4125/ i3 i5 i7
-
Video Card:
-
In-tel H-D Graphics
-
Hard disk interface:
-
SATA2
-
Graphics card interface:
-
PCI-E
-
Video memory capacity:
-
8GB
-
Chip type:
-
HD5550
-
OS:
-
Win 10 System
-
Size:
-
192x125x54mm
-
WIFI:
-
2.4GHz/5.0GHz Wifi Optional
-
CPU:
-
Quad Core I3 I5 I7
-
LAN:
-
2* RJ45 LAN
-
SSD:
-
Msata 128GB 256GB 512GB
Quick Details
-
Use:
-
Industrial
-
Hard Drive Type:
-
SSD+HDD
-
Video Memory Type:
-
With the main memory
-
Processor Core:
-
Dual Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YCT
-
Model Number:
-
YCT-079
-
Power:
-
15W
-
Operating System:
-
Win7/8/10
-
Processor Type:
-
J1900 /J4125/ i3 i5 i7
-
Video Card:
-
In-tel H-D Graphics
-
Hard disk interface:
-
SATA2
-
Graphics card interface:
-
PCI-E
-
Video memory capacity:
-
8GB
-
Chip type:
-
HD5550
-
OS:
-
Win 10 System
-
Size:
-
192x125x54mm
-
WIFI:
-
2.4GHz/5.0GHz Wifi Optional
-
CPU:
-
Quad Core I3 I5 I7
-
LAN:
-
2* RJ45 LAN
-
SSD:
-
Msata 128GB 256GB 512GB
1. We are a factory direct seller with complete certificates and support OEM/ODM.
2. The price is favorable and the product model sare complete.
If you are interested in our products, please feel free to contact Wei qing.
Email : yctkj123@163.com
Phone/Wechat/Whatsapp:+86-17724708558
Phone/Wechat/Whatsapp:+86-17724708558
New Intel Core i3 i5 i7 Quad Core J4125 Dual LAN with GPIO Support 9~36V Power For Win10/11/ Linux Industrial Mini Pc
Product Description
Specification
|
Basic Information:
|
|
|
|
|
||||
|
Processor
|
In-tel Ce-leron Processor N2840,1M Cache, 2.58 GHz,2 Cores 2 Threads,TDP:7.5 W
In-tel Ce-leron Processor J1900,2M Cache, 2.41 GHz,4 Cores 4 Threads,TDP:10W
In-tel Ce-leron Processor J4125,4M Cache, 2.7 GHz,4 Cores 4 Threads,TDP:10 W
In-tel Co-re i3-4005U Processor,3M Cache, 1.70 GHz,2 Core 4 Threads,TDP:15 W
In-tel Co-re i3-5005U Processor,3M Cache, 2.00 GHz,2 Core 4 Threads,TDP:15 W
In-tel Co-re i5-4200U Processor,3M Cache, 2.60 GHz,2 Core 4 Threads,TDP:15 W
In-tel Co-re i5 5200U Processor,3M Cache, 2.70 GHz,2 Core 4 Threads,TDP:15 W
In-tel C-ore i7-4500U Processor,4M Cache, 3.00 GHz,2 Core 4 Threads,TDP:15 W
In-tel C-ore i7-5500U Processor,4M Cache, 3.00 GHz,2 Core 4 Threads,TDP:15 W
|
|
|
|
||||
|
Display
|
N2840：Intel(R) HD Graphics
J1900：Intel(R) HD Graphics
J4125：Intel(R)UHD Graphics 600
i3-5005U：Intel HD Graphics 5500
i5-4200U：Intel HD Graphics 4400
i5 5200U：Intel HD Graphics 5500
i7-4500U：Intel HD Graphics 4400
i7-5500U：Intel HD Graphics 5500
|
|
|
|
||||
|
Memory
|
2GB/4GB/8GB DDR3L 1333/1600MHz 1.35V
1*204-pim SO-DIMM Maximum capacity:8G |
|
|
|
||||
|
Hard Disk
|
SSD:1*Full Height mSATA socket,16GB/30GB/60GB/120GB/240GB/500GB/1TB mSATA SSD
HDD:Support SATA2.5"HDD |
|
|
|
||||
|
Support OS
|
Official Win11/10/8/7/Linux/ ubuntu/CENTOS, etc. Notice: we pre-install Win7/8/10/11 OS for testing only, If you need legal genuine
Win7/8/10/11 OS or other OS like Linux, Ubuntu, Pfsense..., please contact us in time |
|
|
|
||||
|

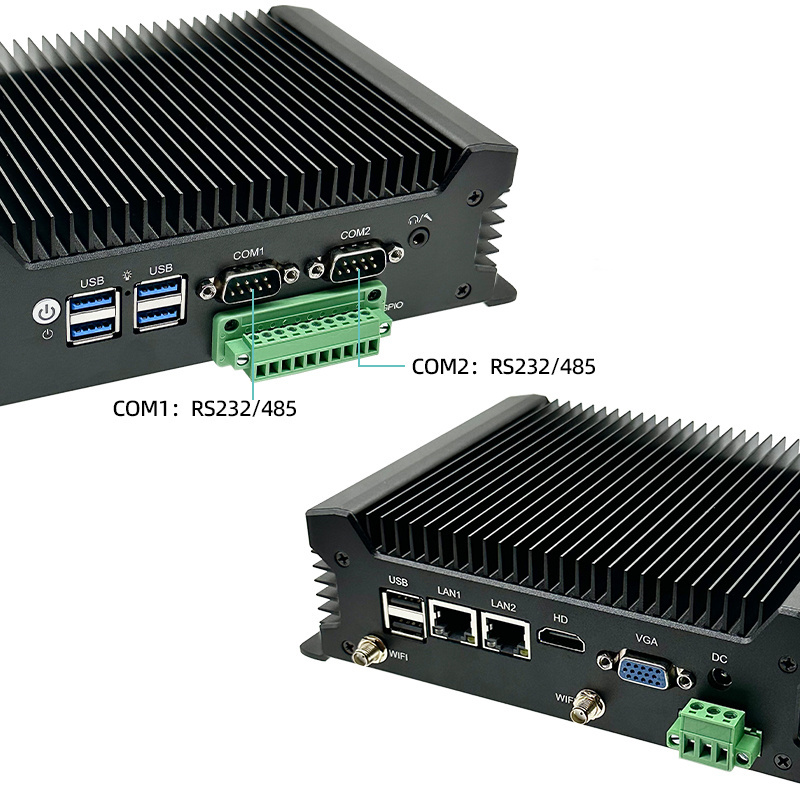

Port
|
4 or 2 xUSB2.0
4xUSB3.0 2xLAN 1xH-D 1xVGA 1xAUD 1x Switch |
|
|
|
||||
|
Audio
|
Main system:Adopt Realtek ALC662 audio control chip, support dual channel, stereo, Line out
|
|
|
|
||||
|
Extension
|
Mini-PCIe:1* Half Height Mini PCIe for wifi / BT module
|
|
|
|
||||
|
Power Requirement
|
DC 12V 5A（3A）/60W(AC TO DC,100~240V)
|
|
|
|
||||
|
Working Environment
|
Operating Temperature ‘-20-65℃
Storage Temperature 15℃-35℃ Relative Humidity 5%~95% (non-condensing) |
|
|
|
||||
|
Size
|
N2840/J1900/J4125:135*125*40mm
i3/i5/i7:180*125*55mm
|
|
|
|
||||
|
Package Contents
|
1 x Mini PC
1 x User manual
1 x Power adapter
1 x VESE mount
1 x WIFI antennas
|
|
|
|
||||
