Quick Details
-
Brand Name:
-
Ysenmed
-
Model Number:
-
YSX1005E
-
Material:
-
dental x ray machine
-
Quality Certification:
-
iso
-
Type:
-
Oral Therapy Equipments & Accessories
-
Mains Resistance:
-
<1.5ohm at 220 V
-
Convenient:
-
Available for adult and children
-
Anodic Current:
-
4-10 mA,Direct Current
-
Focus size: 0.5*0.5mm:
-
0.5*0.5mm
-
Column Heigth:
-
230cm
-
Displacement:
-
90 cm, from 90 to 180 cm
-
Inherent Filtration:
-
2.5 mm Al
-
X-ray generator:
-
High frequency dc at 20 Khz
-
Power Supply:
-
220V,50/60Hz,10
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ysenmed
-
Model Number:
-
YSX1005E
-
Material:
-
dental x ray machine
-
Quality Certification:
-
iso
-
Type:
-
Oral Therapy Equipments & Accessories
-
Mains Resistance:
-
<1.5ohm at 220 V
-
Convenient:
-
Available for adult and children
-
Anodic Current:
-
4-10 mA,Direct Current
-
Focus size: 0.5*0.5mm:
-
0.5*0.5mm
-
Column Heigth:
-
230cm
-
Displacement:
-
90 cm, from 90 to 180 cm
-
Inherent Filtration:
-
2.5 mm Al
-
X-ray generator:
-
High frequency dc at 20 Khz
-
Power Supply:
-
220V,50/60Hz,10

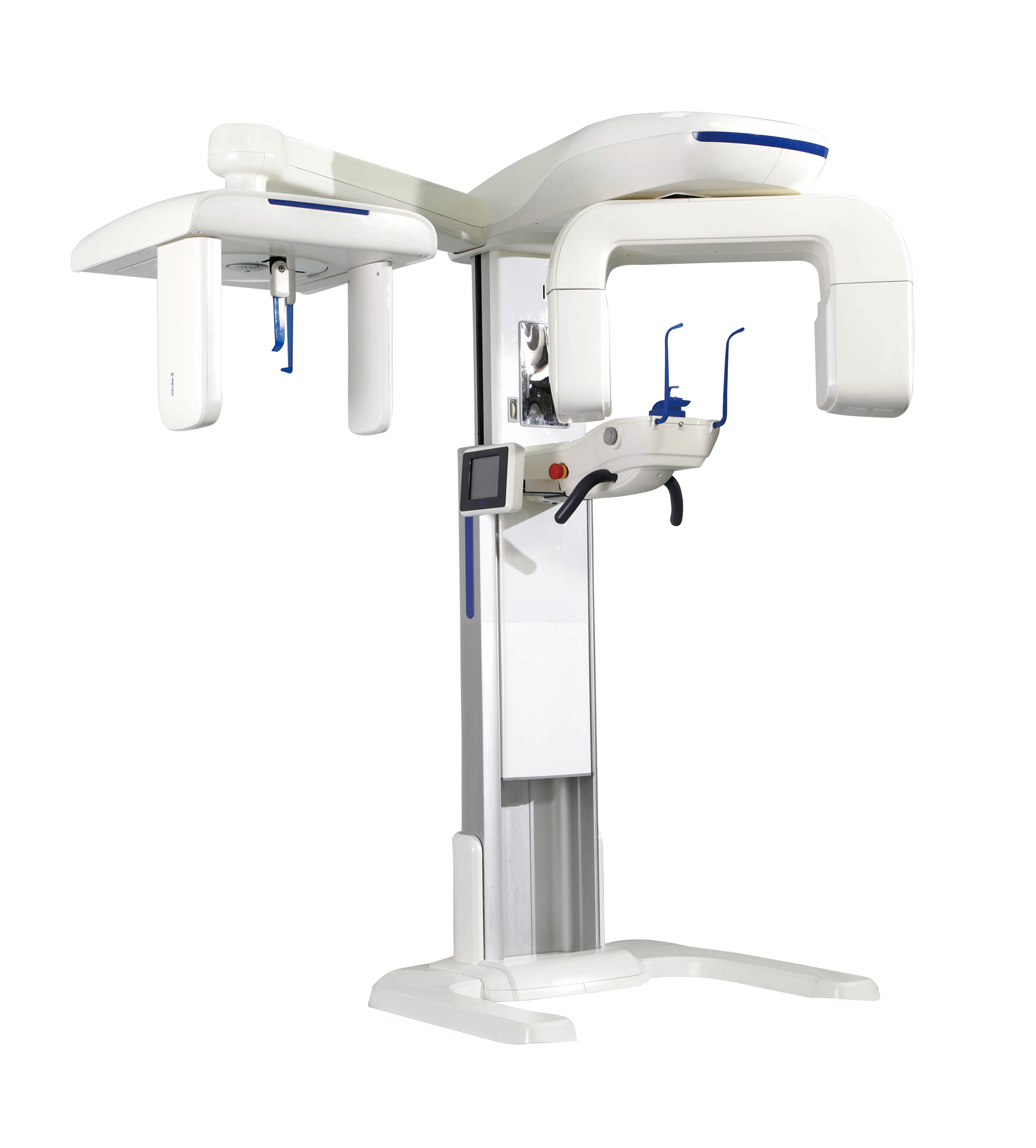

YSX1005E cephalometric function panoramic dental x ray machine
hot cephalometric function panoramic dental
x ray machine YSX1005
Specialty
High voltage Generator, minimum radiation for patient.
Patient positioning with chin rest and reference with bit
Available for adult, children, left, right or frontal partial
views and upper jaw joints, lower jawbone.
Technology Parameters
IEC classification: Class I, type BF
Power supply:230V 50/60HZ 10A
Mains resistance: < 20ohm at 20V
X-Ray generator: Multi-pulse at 10kHz
Anodic Voltage:60-86KV Constant Potential
| Item | Technical parameter |
| Input Voltage | 220V±10% 50Hz±1Hz fuse less than1Ω |
| Input power | Instantaneous loading:2500W |
| Standby mode: 110W 0.5A | |
| Fuse | 15A (Ø6x30) |
| Anode voltage | auto 60kV - 88kW |
| Manual 60kV - 88kW | |
| Anode current | Panorama: 12mA±20% |
| TMJ 12mA±20% | |
| X-ray tube | X-ray generator: High frequency |
| DC generator | |
| Focus | 0.5 X 0.5mm |
| Zoom in | 1.20-1.30 |
| Total filtering | 2.5mmAL |
| Exposure time | Panoramic 14s |
| TMJ 3s × 4 | |
| Film size | 150 × 300mm |
| X-ray cassette | 150mm, 300mm |
| X-ray intensifying | MSL-40 |
| Vertical range of tube head | 853 - 1643mm |
| Lifting device | manualelectrom agnetism locked |
| Net weight | 160KG |
