Laminar Flow Cabinet – is used only for sample protection.
Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through
a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream.
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
Horizontal Laminar Flow Cabinet BBS-H1300 BBS-H1800
-
External Size:
-
1300*820*2040mm
-
Air Velocity:
-
0.3~0.6m/s
-
Package Size(W*D*H):
-
1450*1060*1650mm
-
Noise:
-
≤65dB(A)
-
Power Supply:
-
AC220V±10%, 50/60Hz; 110V±10%, 60Hz
-
Suction inlet diameter:
-
375mm
-
Rated power:
-
180 w
-
Gross weight:
-
254 kg
-
Optional Accessory:
-
Electric height adjustable base stand
Quick Details
-
Weight (KG):
-
254
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BIOBASE
-
Product name:
-
Horizontal Laminar Flow Cabinet BBS-H1300 BBS-H1800
-
External Size:
-
1300*820*2040mm
-
Air Velocity:
-
0.3~0.6m/s
-
Package Size(W*D*H):
-
1450*1060*1650mm
-
Noise:
-
≤65dB(A)
-
Power Supply:
-
AC220V±10%, 50/60Hz; 110V±10%, 60Hz
-
Suction inlet diameter:
-
375mm
-
Rated power:
-
180 w
-
Gross weight:
-
254 kg
-
Optional Accessory:
-
Electric height adjustable base stand

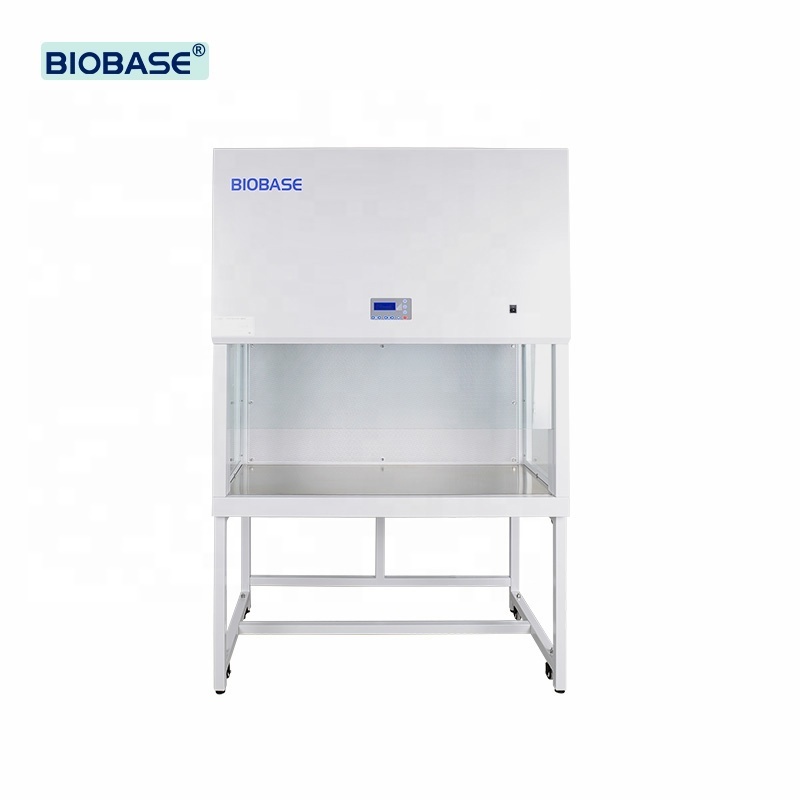

BIOBASE Horizontal Laminar Flow Cabinet
BBS-H1300 BBS-H1800
Models
|
Model
|
BBS-H1300
|
BBS-H1800
|
|
|
External Size（W*D*H）
|
1300*820*2040mm
|
1800*820*2070mm
|
|
|
Internal Size（W*D*H）
|
1200*500*570mm
|
1700*500*570mm
|
|
|
Work Surface Height
|
750mm
|
|
|
|
Display
|
LCD Display
|
|
|
|
Airflow Velocity
|
Average of 0.3~0.5m/s
|
|
|
|
Material
|
Main Body: Cold-rolled steel with anti-bacteria powder coating
|
|
|
|
|
Work Table: 304 stainless steel
|
|
|
|
|
Side and Front Window: 5mm toughened glass, anti-UV
|
|
|
|
Pre-filter
|
Polyester fiber, washable
|
|
|
|
HEPA Filter
|
99.995% efficiency at 0.3μm
|
|
|
|
Noise
|
<65dB
|
|
|
|
Front Window
|
Motorized
|
|
|
|
Max Opening
|
430mm
|
|
|
|
LED Lamp
|
12W*1
|
16W*2
|
|
|
UV Lamp
|
30W*1
|
30W*1
|
|
|
|
Emission of 253.7 nanometers
|
|
|
|
Consumption
|
400W
|
500W
|
|
|
Waterproof Socket
|
Two, total load≤500W
|
|
|
|
Caster
|
Universal caster with leveling feet
|
|
|
|
Power Supply
|
AC220V±10%, 50/60Hz; 110V±10%, 60Hz
|
|
|
|
Standard Accessory
|
LED lamp;
UV lamp*2; Base stand; Gas Tap; Waterproof socket*2; Water Tap (only for BBS-H1800). |
|
|
|
Optional Accessory
|
Electric height adjustable base stand
|
|
|
|
Gross Weight
|
254kg
|
328kg
|
|
|
Package Size（W*D*H）
|
1450*1060*1650mm
|
1950*1060*1600mm
|
|
