Quick Details
-
Product Name:
-
C9300L-24T-E
-
Product Description:
-
9300 24-port data only,Network Essentials
-
Switching capacity:
-
208 Gbps on 24-port Gigabit Ethernet model
-
Stacking bandwidth:
-
480 Gbps
-
Total number of MAC addresses:
-
32,000
-
DRAM:
-
8 GB
-
Flash:
-
16 GB
-
Forwarding rate:
-
154.76 Mpps
-
Dimensions (H x W x D):
-
1.73 x 17.5 x 17.5 Inches
-
Warranty:
-
12 Months
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Place of Origin:
-
China
-
Product Name:
-
C9300L-24T-E
-
Product Description:
-
9300 24-port data only,Network Essentials
-
Switching capacity:
-
208 Gbps on 24-port Gigabit Ethernet model
-
Stacking bandwidth:
-
480 Gbps
-
Total number of MAC addresses:
-
32,000
-
DRAM:
-
8 GB
-
Flash:
-
16 GB
-
Forwarding rate:
-
154.76 Mpps
-
Dimensions (H x W x D):
-
1.73 x 17.5 x 17.5 Inches
-
Warranty:
-
12 Months

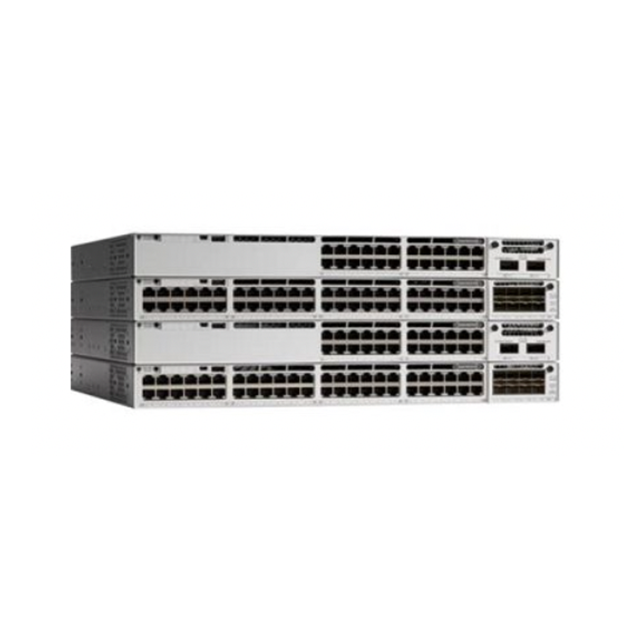

C9300-24T-E - Switch Catalyst 9300
Specification
|
Product Description
|
Catalyst 9300 24-port data only, Network Essentials
|
|
|
Default AC power supply
|
350W AC
|
|
|
Default power supply
|
PWR-C1-350WAC-P/2
|
|
|
Switching capacity
|
208 Gbps on 24-port Gigabit Ethernet model
|
|
|
Stacking bandwidth
|
480 Gbps
|
|
|
Packet buffer per SKU
|
16 MB buffer for 24- or 48-port Gigabit Ethernet models
|
|
|
FNF entries
|
64,000 flow on 24- and 48-port Gigabit Ethernet models
|
|
|
DRAM
|
8 GB
|
|
|
Flash
|
16 GB
|
|
|
Wireless bandwidth per switch
|
Up to 48 Gbps on 24-port Gigabit Ethernet model
|
|
|
Forwarding rate
|
154.76 Mpps
|
|
|
Dimensions (H x W x D)
|
1.73 x 17.5 x 17.5 Inches
|
|
|
Weight
|
16.33 Pounds
|
|
|
We supply most of parts above, contact me for further information.
My Skype Whats App or Email: +86 18923725190 ; keyuetimes@gmail.com |
|
|
comparison between C9300-24T-E and C9300-24P-A.
|
Product Code
|
C9300-24T-E
|
C9300-24P-A
|
|
Product Description
|
Catalyst 9300 24-port data only,
Network Essentials
|
Catalyst 9300 24-port PoE+,
Network Advantage
|
|
Total 10/100/1000 or Multigigabit copper ports
|
24
|
24 POE+
|
|
Default AC power supply
|
350W AC
|
715W AC
|
|
Available PoE power
|
--
|
445W
|
|
Dimensions (H x W x D)
|
1.73 x 17.5 x 17.5 Inches
|
1.73 x 17.5 x 17.5 Inches
|
|
Weight
|
16.33 Pounds
|
16.33 Pounds
|
Product Description
The Catalyst 9300 Series Switches are Cisco’s lead stackable enterprise switching platform built for security, IoT,
mobility, and cloud. C9300-24T-E is 24-port data only, Network Essentials Switch of 9300 series. Catalyst 9300 Series are the next generation of the industry’s most widely deployed switching platform. At 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.
mobility, and cloud. C9300-24T-E is 24-port data only, Network Essentials Switch of 9300 series. Catalyst 9300 Series are the next generation of the industry’s most widely deployed switching platform. At 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.
The Catalyst 9300 Series is made up of nineteen modular uplink switch models and fourteen fixed uplink switch models.
Catalyst 9300 Series switches support dual redundant power supplies. The switches ship with one power supply by default, and the second power supply can be purchased when the switch is ordered or at a later time. If only one power supply is installed, it should always be in power supply bay #1. The switches also ship with three field-replaceable fans.
Power Supplies
are common across the Catalyst 9300 Series.
Catalyst 9300 Series switch models are designed for
stacking
switches as a single virtual switch, enabling customers to have a single management plane and control plane for up to 448 access ports.
