Quick Details
-
Brand Name:
-
SKZ
-
Model Number:
-
SKZ162A
-
Product name:
-
Lab ISO6330 ISO5077 fabric shrinkage temperature test instrument
-
Test items:
-
Used to determine the dimensional change of fabrics, clothing
-
Test items1:
-
or other textiles after washing.
-
Rated charging capacity:
-
5kg
-
Inner drum diameter:
-
(520 ± 1) mm
-
Inner drum depth:
-
(315 ± 1) mm
-
Normal rotation interval:
-
(12 ± 0.1) s
-
Digital setting, stepless speed:
-
40-800rpm
-
High-speed dehydration:
-
(800 ± 20) rpm
-
Standard:
-
ISO6330 ISO5077
Quick Details
-
Warranty:
-
12 months
-
Power:
-
Electronic
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SKZ
-
Model Number:
-
SKZ162A
-
Product name:
-
Lab ISO6330 ISO5077 fabric shrinkage temperature test instrument
-
Test items:
-
Used to determine the dimensional change of fabrics, clothing
-
Test items1:
-
or other textiles after washing.
-
Rated charging capacity:
-
5kg
-
Inner drum diameter:
-
(520 ± 1) mm
-
Inner drum depth:
-
(315 ± 1) mm
-
Normal rotation interval:
-
(12 ± 0.1) s
-
Digital setting, stepless speed:
-
40-800rpm
-
High-speed dehydration:
-
(800 ± 20) rpm
-
Standard:
-
ISO6330 ISO5077
Product Description

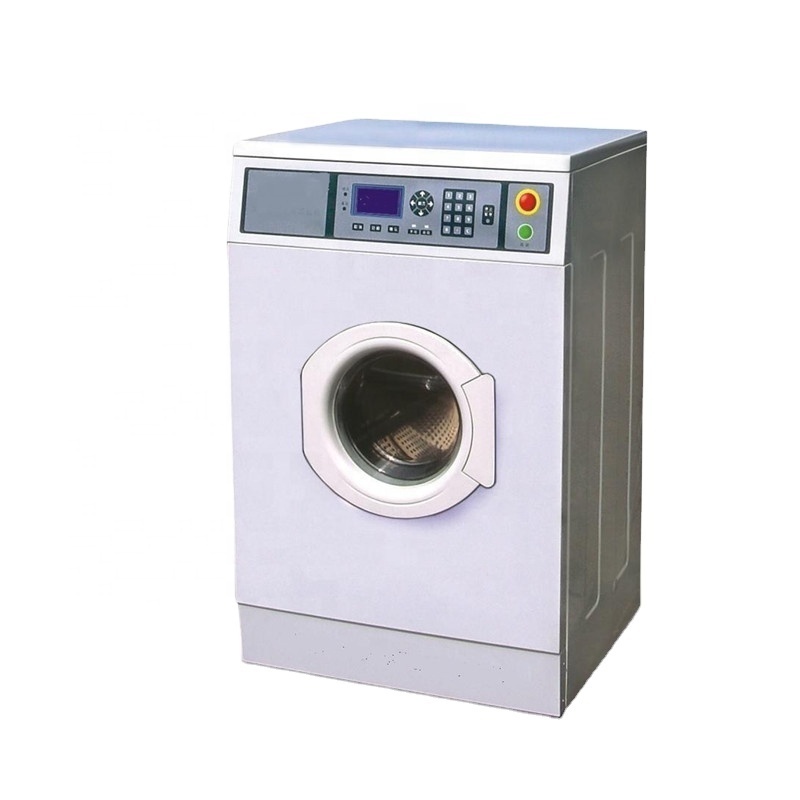

Lab ISO6330 ISO5077 fabric shrinkage temperature test instrument
The shrinkage temperature test instrument, shrinkage temperature laboratory equipment and shrinkage temperature apparatus of product is suitable for lab.
Used to determine the dimensional change of fabrics, clothing or other textiles after washing.
Standard:
ISO6330/5077, FZ/T70009, Bs4923, EN25077/26330, JIS L1909, IWSTM31 IEC456 M&S
Feature:
1. Import vector variable frequency variable speed motor, high-speed dehydration coefficient, digital setting.
2. Built-in multiple sets of conventional standard program, the client can be used directly. Support multiple sets of self-programming and provide programming storage.
3. All independent suspension drum technology, high shock resistance, ultra-quiet operation, no need to foot fixed.
4. Large-size LCD English menu operation
5.32 industrial-grade imported microcontroller intelligent control to ensure a smooth operation for a long time.
6. High-precision contact pole piece water level controller, to ensure accurate and reliable water level.
The shrinkage temperature test instrument, shrinkage temperature laboratory equipment and shrinkage temperature apparatus of product is suitable for lab.
Used to determine the dimensional change of fabrics, clothing or other textiles after washing.
Standard:
ISO6330/5077, FZ/T70009, Bs4923, EN25077/26330, JIS L1909, IWSTM31 IEC456 M&S
Feature:
1. Import vector variable frequency variable speed motor, high-speed dehydration coefficient, digital setting.
2. Built-in multiple sets of conventional standard program, the client can be used directly. Support multiple sets of self-programming and provide programming storage.
3. All independent suspension drum technology, high shock resistance, ultra-quiet operation, no need to foot fixed.
4. Large-size LCD English menu operation
5.32 industrial-grade imported microcontroller intelligent control to ensure a smooth operation for a long time.
6. High-precision contact pole piece water level controller, to ensure accurate and reliable water level.
Specification
|
Item
|
Value
|
|
Rated charging capacity
|
5kg
|
|
Inner drum diameter
|
(520 ± 1) mm
|
|
Inner drum depth
|
(315 ± 1) mm
|
|
Lift piece
|
Number: 3 pieces
|
|
|
Height: (53 ± 1) mm
|
|
|
Length: extends to the entire depth of the inner drum
|
|
|
Space 1200
|
|
Outer cylinder diameter
|
(554 ± 1) mm
|
|
Rotation
|
Normal rotation interval: (12 ± 0.1) s
|
|
|
Normal stop interval: (3 ± 0.1) s
|
|
|
Gentle turning interval: (8 ± 0.1) s
|
|
|
Gentle stop interval: (7 ± 0.1) s
|
|
|
Gentle rotation interval: (3 ± 0.1) s
|
|
|
Gentle stop time interval: (12 ± 0.1) s
|
|
Speed
|
Digital setting, stepless speed up to 40-800rpm
|
|
|
In the program: Wash (52 ± 1) rpm
|
|
|
Slow dehydration (500 ± 20) rpm
|
|
|
High-speed dehydration (800 ± 20) rpm
|
|
Water supply system
|
Water flow (20 ± 2) L / min (inlet water pressure should be higher than 150KP)
|
|
|
Water level detection 2 files 100mm and 130mm (tolerance ≤ 3mm)
|
|
|
Drainage speed> 30L / min
|
|
Temperature detection
|
temperature sensor, digital setting range: room temperature -99 ℃ ± 1 ℃, resolution 0.1 ℃
|
|
Washing program
|
23 sets of automatic washing program, another set of self-editing archive washing process, manual single control flow
|
|
Heating power
|
5.4 ± 2% KW
|
|
Power
|
AC220V 50Hz 6.5KW
|
|
Dimensions
|
(750 × 700 × 1200) mm
|
|
Weight
|
200Kg
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
