- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Power:
-
7.5
-
Dimension(L*W*H):
-
3200x1600x1700mm
-
Sheet Thickness (mm):
-
1.2mm
-
NAME:
-
square duct seam closing machine / duct zipper
-
DIA:
-
1500mm
-
Model:
-
HFJ-12
-
electrics:
-
schneider
-
Voltage:
-
customized
-
After Warranty Service:
-
Video technical support
Quick Details
-
Brand Name:
-
ebone
-
Condition:
-
new
-
Weight:
-
2000 kg
-
Place of Origin:
-
China
-
Power:
-
7.5
-
Dimension(L*W*H):
-
3200x1600x1700mm
-
Sheet Thickness (mm):
-
1.2mm
-
NAME:
-
square duct seam closing machine / duct zipper
-
DIA:
-
1500mm
-
Model:
-
HFJ-12
-
electrics:
-
schneider
-
Voltage:
-
customized
-
After Warranty Service:
-
Video technical support
Product Overview
Performance Features
This machine can be used with duct forming line,T12 transverse flange duct machine and Pittsburgh lock machine. The ideal duct connection includes united joint and right-angle side The linking machine HFJ12 or HFJ15 works out seam of high quality without help of other auxiliary connecting tool. The process does nothing to hurt the surface of the work piece with low noise. The finished seam is close, even and effective. Plates in different thicknesses are workable and can be finished quickly and safely. The duct closing machine works out seam of high quality without help of other connection tool.The process does nothing to hurt the surface of the work piece with low noise. The finished seam is closed and effective. Plates in different thickness are workable and can be finished quickly and safely.
This machine can be used with duct forming line,T12 transverse flange duct machine and Pittsburgh lock machine. The ideal duct connection includes united joint and right-angle side The linking machine HFJ12 or HFJ15 works out seam of high quality without help of other auxiliary connecting tool. The process does nothing to hurt the surface of the work piece with low noise. The finished seam is close, even and effective. Plates in different thicknesses are workable and can be finished quickly and safely. The duct closing machine works out seam of high quality without help of other connection tool.The process does nothing to hurt the surface of the work piece with low noise. The finished seam is closed and effective. Plates in different thickness are workable and can be finished quickly and safely.
PRODUCT CONFIGURATION

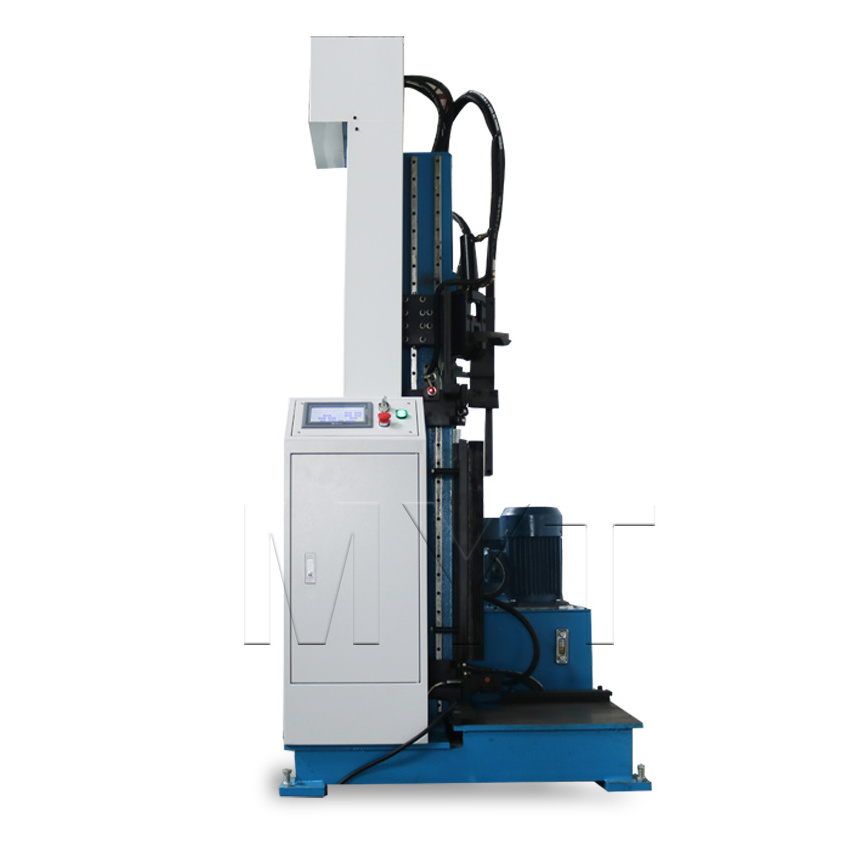

front side of machine
right side of seam closing machine
Electrics Schneider brand
CNC touch screen
Clamps for square duct
Hydraulic clamp
Hydraulic pump and valve
Finished products
PRODUCT SPECIFICATIONS
|
Model
|
HFJ-12
|
|
Fit form
|
Two-way seam
|
|
Processing plate thickness
|
0.8-1.2 mm
|
|
Processing duct length
|
1000-1500 mm
|
|
Hydraulic motor power
|
4 KW
|
|
Hydraulic system pressure
|
10 MPa
|
|
Hydraulic pump model
|
GPY-11.5
|
|
Hydraulic motor model
|
BMR-125-2AD
|
|
Transmission chain specification
|
08B-2
|
|
Dimensions
|
1090×960×2240 mm
|
|
Weight
|
718 kg
|
|
The power of cutting motor
|
4KW
|
|
Electrical
|
380V/50Hz/3PH Customizable voltage
|
|
Working pressure
|
0.5-0.7Mpa
|
