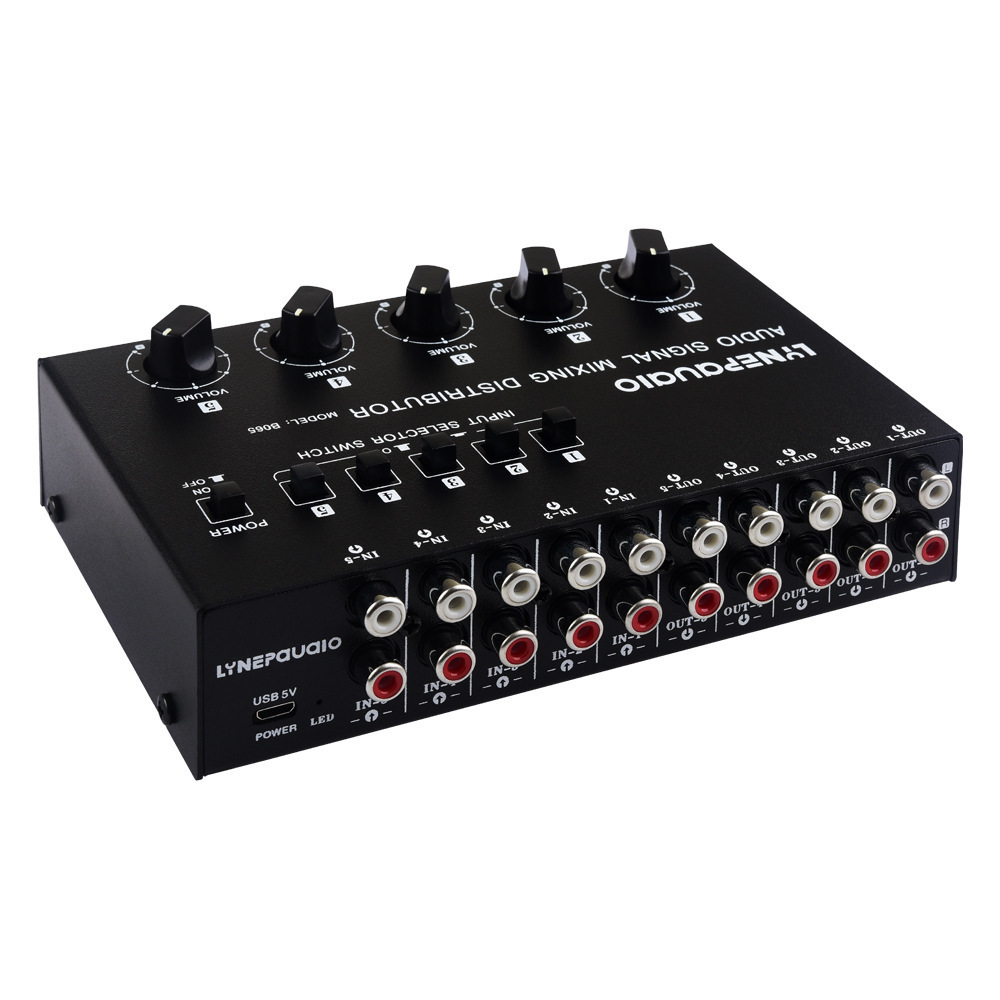

5 In 5 Out Audio Frequency Signal Select Sound Mixing Distribute Device/Input Independent Switch/ RCA Interface

5 sets stereophonic select input (each one set input with independent switch, able to start at the same time and mix together to input, also able to close one set independently).
5 sets stereophonic output at the same time (each one set output with independent volume switch adjustment).
Solve the problem that multiply equipment input and multiply equipment output at the same time.
5 sets output sound at the same time and amplify gain +15dB.
Simple installation: input and output, able to be used once inserted, convenient to install, input and output signal no consumption, then can enjoy different hearing experience.

Interface: RCA interface
Power supply: USB 5V supply power
Input and output impedance: 10K ohm - 50K ohm
Frequency responding: 20 - 20kHz.
Distortion: less than 0.002%
Output consumption: less than 0.01dB
Signal gain: +15dB
Signal-noise ratio S/N: more than 98dB
Input and output interface: standard RCA interface
Input passageway quantity: 5 sets stereophonic select input (5 sets input able to start at the same time and mix together to input, also able to close one set independently)
Output passageway: 5 sets stereophonic output (each one set output with independent volume adjustment)
Control switch: input and output adopt self lock switch, accurately select manually shift
Output select shift passageway: 5 passageways
Colour: black
Material: metal

Package Contents:
1 * Audio signal mix splitter

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
