Quick Details
-
Type:
-
Self Drilling Screw Making Machine
-
Product name:
-
Self Drilling Screw Forming Machine
-
Speed:
-
150-520pcs/min
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
using life:
-
more than 20years
-
Working time:
-
can be 24hours working one day
-
Feature:
-
High speed ,low noisy ,long service life
-
Service:
-
Life-long time technical support .
-
Keyword:
-
Screw Point End Forming Machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
China (Mainland)
-
Weight (KG):
-
3000
-
Type:
-
Self Drilling Screw Making Machine
-
Product name:
-
Self Drilling Screw Forming Machine
-
Speed:
-
150-520pcs/min
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
using life:
-
more than 20years
-
Working time:
-
can be 24hours working one day
-
Feature:
-
High speed ,low noisy ,long service life
-
Service:
-
Life-long time technical support .
-
Keyword:
-
Screw Point End Forming Machine

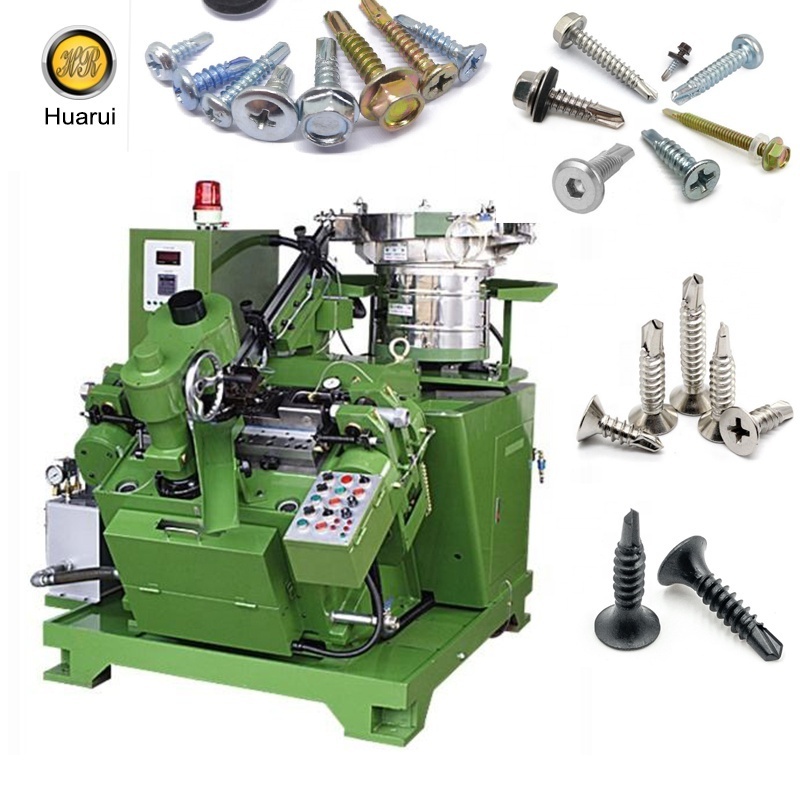

Automatic Self Drilling Screw Making Machine Self Drilling Screw Forming Machine
Process flow
Screw heading machine--self-drilling screw tail forming machine--Thread rolling machine--Screw and washer combination machine.
Screw heading machine
:
Self-drilling screw making machine:
|
Model |
HR 14-1 3 0L |
|
Speed |
120-520PCS/Minute |
|
Main Motor |
7.5KW(10HP) |
|
Oil pump motor |
0.75KW(1HP) |
|
elevator motor |
0.2KW(1/4HP) |
|
Inverter |
7.5KW |
|
Brake System |
Air-Pressure Clutch |
|
Auto-action controller |
PLC Controller |
|
Abnormal auto-action |
Automatically detect abnormal man-machine interfac e display |
|
Vibrator Feeder |
620mm,Plus Silent PU Gelatin Spraying |
|
Wire Diameter |
#6(2.8)~#14(5.45)NO.1-NO.6 |
|
Screw Length |
9.5mm~1 3 0mm |
|
Machine Size (L*W*H) |
1950mm * 1650mm * 1650mm |
|
Machine weight |
(approx)2180KG |
Thread rolling machine
Screw and washer combination machine
Clients Visiting
Packaging & Shipping
FAQ
1. Make response to customer's inquiry or requirement within 24 hours.
2. Assist customer to select the most suitable machine and give them our professional suggestion.
3. Produce machine by our experienced team according to customer requirement.
4. Provide customer operation manual or video for machine to help them operate machine more efficiently.
5. Provide customer layout of workshop with machine to help them install machine.
6. Assign engineer to assist customer to install machine.
7. Offer 2 year guarantee for all our machines.
