Quick Details
-
Dimension(L*W*H):
-
2180*1505*2285mm
-
Power (kW):
-
4
-
Weight (KG):
-
3500 KG
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
findmc-tools
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2180*1505*2285mm
-
Power (kW):
-
4
-
Weight (KG):
-
3500 KG
|

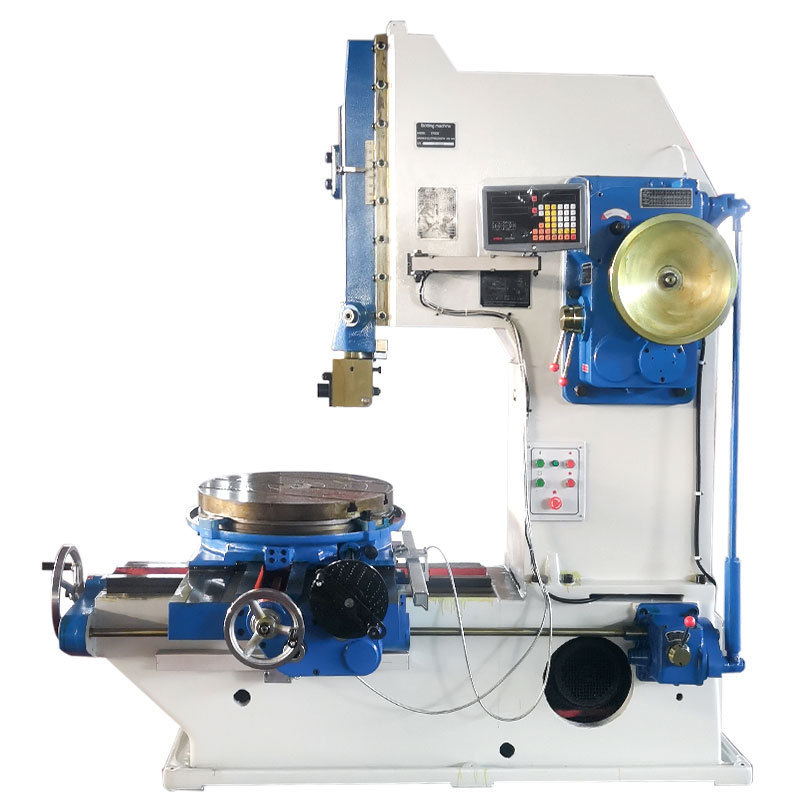

Model |
B5032 |
|
Max.slotting length |
320mm |
|
Max.dimensions of work piec e (L*H) |
600*320mm |
|
Max.weight of work piece |
500kg |
|
Max.cutting force |
7500N |
|
No.of strokes per minute |
20.32.50.80.r.p.m |
|
Vertical a d justment of ram |
315mm |
|
Inclination of ram |
0-8 ° |
|
Distance between tool holding surface and column front |
600mm |
|
Max.tool shank size (W*H) |
25*40mm |
|
Table diameter |
630mm |
|
Distance between table surface and low end of ram |
490mm |
|
Max.longitudinal travel of table |
480/630mm |
|
Max.cross travel of table |
480/560mm |
|
Max.Rotary angle of table |
±360 ° |
|
Range of table longitudinal and cross power feeds |
|
|
Range of table power feeds |
0.052-0.783 |
|
Power of rapid drive motor |
4kw |
|
Rotating speed of main drive motor |
960r.p.m |
|
Overall dimensions (L*W*H) |
2180*1505*2285mm |
|
Weight(approx) |
3500kg |
