Quick Details
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RUNDE
-
Weight (KG):
-
2100
Products Description
Product Paramenters
|

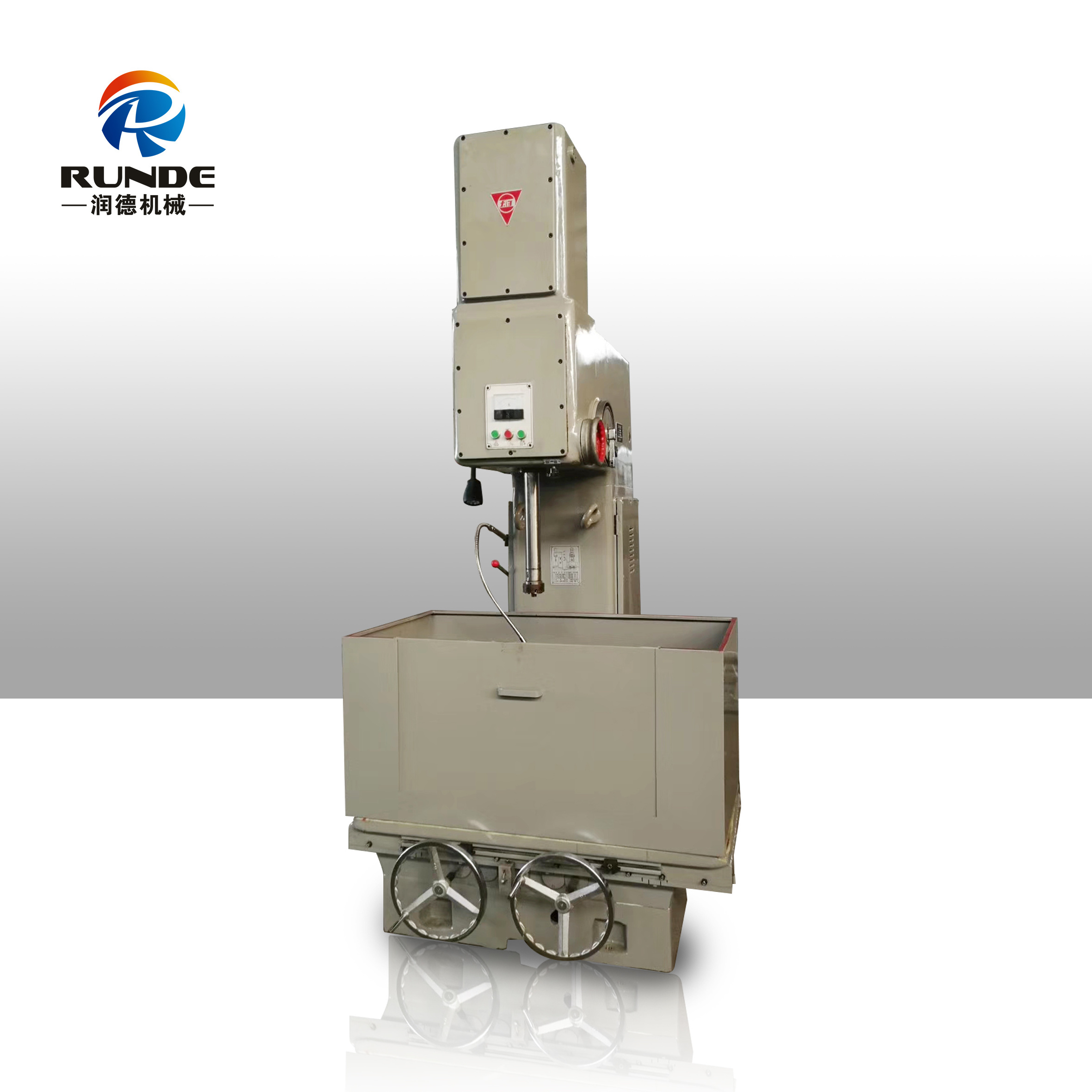

PRODUCT MODEL |
|
M4215
|
|
Honing diameter
|
mm
|
50-150
|
|
Maximum honing depth
|
mm
|
400
|
|
Spindle speed (Level 4)
|
r/min
|
112、160、224、315
|
|
Max.spindle stroke
|
mm
|
370
|
|
Spindle reciprocating speed (stepless）
|
M/Min
|
3-18
|
|
Distance from the rear end face of the spindle extension rod to the worktable
|
mm
|
475-845
|
|
Table stroke longitudinal x transverse:
|
mm
|
800*60
|
|
Dimension of worktable
|
mm
|
480*1100
|
|
Worktable Height
|
mm
|
470
|
|
Motor for spindle rotation
|
Kw
|
2.2
|
|
Motor for hydraulic pump
|
Kw
|
2.2
|
|
Cooling pump motor
|
Kw
|
0.125
|
|
Overall dimension of machine tool (length × wide × High)
|
mm
|
1320*1680*2675
|
|
Net weight / gross weight of machine tool
|
Kg
|
2100
|
