Quick Details
-
Power (kW):
-
2.2
-
Machine dimensions(L*W*H):
-
110x85x220 CM
-
Product name:
-
Studs Insertion Press Machine
-
Throat depth:
-
500MM
-
Net weight:
-
530
-
Function:
-
STUDS INSERTION
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
USUN
-
Weight (KG):
-
630
-
Power (kW):
-
2.2
-
Machine dimensions(L*W*H):
-
110x85x220 CM
-
Product name:
-
Studs Insertion Press Machine
-
Throat depth:
-
500MM
-
Net weight:
-
530
-
Function:
-
STUDS INSERTION

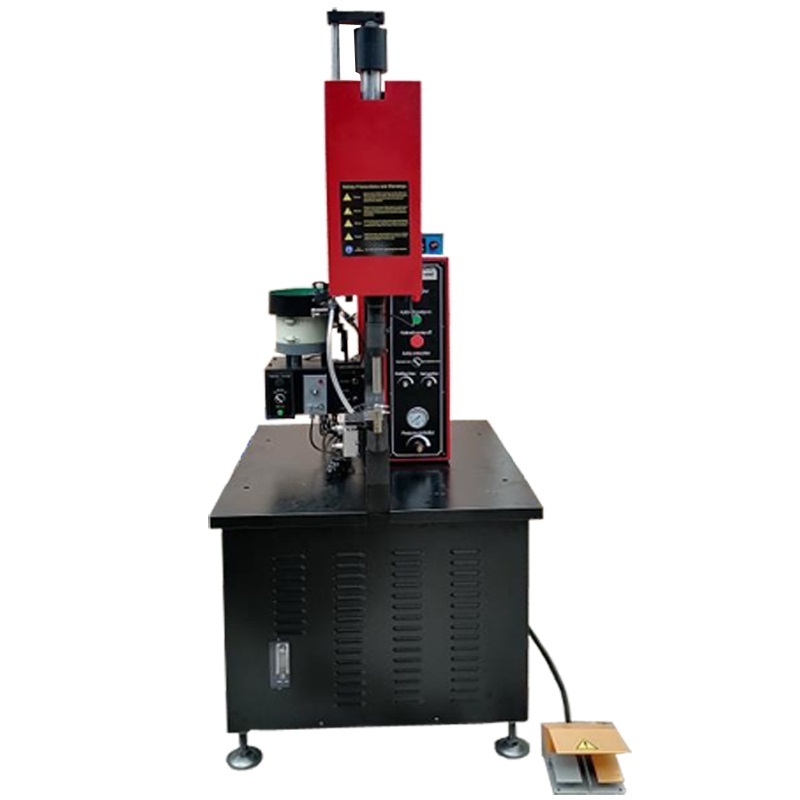

Promotional Best Quality C frame 6-8 Tons auto-feeding hydraulic fastener
insertion press machine for bolts or nuts or standoff or screws
1)ULYP Series C-frame console pressess are specialized riveting equipments without rivets. In stead of all previous methods
which have involved economic and technical problems, they will join different materials by means of a deep drawing-pressing process, and which do so without damage to the surface, purely by displacing and forming.
2) It assures you with high productive efficiency as well as full process automaticly monitoring and joining strength checking.
3) In the process of pressing , sheet metals of different thicknesses or materials, even with adhesives or other intermediate layers are fully joined.
4) In industrial applications,Its available of clinching for single sheet thicknesses of 0.5 mm up to a total layer thickness of
11.0 mm and up to 7500 N tensile strength. In laboratory tests significantly higher values have already been achieved!
Product Main features
1) Compact structure, clean design
2) Increased productivity with automatic feeding system and multi-point riveting
3) Large anti-ejecting forces and anti-torsion torques
4) High flexibility with height-adjustable
5) High stroke frequency High stroke frequency
6) Easy maintenance and changeable
7) Available for riveting nuts diameter larger than M10
Product Specifcation
1.Riveting ability (Nut below M10 ,bolt below M8 and srew below M6 carbon steel material riveting fastener)
2.Turned edge tapping thread (below M6 carbon steel material turned edge tapping thread technology)
3.Convex hull formation(formation arear diameter below 45MM techonlogy
4.No rivet screw conjunction(total thickness below 4.0MM carbon steel material no rivet screw conjunction technology)
5.Pierce out lock rivet conjunction (total thickness below 4.0MM carbon steel material pierce out lock rivet
conjunction technology
)
Performance parameters
|
Point diameter (mm) |
Sheet thickness (mm) |
Shear strength (N) |
Tensile strength (N) |
Punching force (KN) |
|
Φ3 |
0.5-1.5 |
260-520 |
130-360 |
7-15 |
|
Φ4 |
0.6-2.0 |
710-1300 |
350-850 |
13-28 |
|
Φ5 |
0.9-2.5 |
750-2000 |
200-1000 |
15-30 |
|
Φ6 |
1.0-3.0 |
560-3400 |
300-2200 |
12-40 |
|
Φ8 |
1.6-6.0 |
510-6200 |
290-2800 |
18-60 |
|
Φ10 |
1.75-7.0 |
1600-8500 |
800-6200 |
36-105 |
|
Φ12 |
4.0-11.0 |
2700-10000 |
1100-7500 |
61-125 |
Main Technical parameters
|
Type |
ULYP |
|
Max. pressing force |
40-10KN |
|
Power source |
Compressed air from air compressor |
|
Power supply |
220V/ 50Hz |
|
Max. total stroke |
100 mm |
|
Compressed air |
5-8 Bar |
|
Weight |
600 KGS |
