- Product Details
- {{item.text}}
Quick Details
-
WIFI:
-
NO
-
Network:
-
433Mhz
-
Customized support:
-
logo
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Diese
-
Model Number:
-
Socketwb03+WP07
-
Working voltage:
-
AC 100~240V
-
Frequency:
-
433Mhz
-
Max current:
-
16A
-
Load Power:
-
3000W
-
Working Mode:
-
Toggle mode,Latched mode
-
Socket Size:
-
85*48mm
-
Support encoding:
-
1527 Learning code /2262 fixed code
-
Socket Weight:
-
92g
-
Distance:
-
50M (theoretical distance)
-
Features:
-
Mini 16 Amps 3000 watts Wireless Socket
Quick Details
-
Rated Voltage:
-
AC 85~240V
-
Rated Current:
-
16A
-
Application:
-
Residential / General-Purpose
-
WIFI:
-
NO
-
Network:
-
433Mhz
-
Customized support:
-
logo
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Diese
-
Model Number:
-
Socketwb03+WP07
-
Working voltage:
-
AC 100~240V
-
Frequency:
-
433Mhz
-
Max current:
-
16A
-
Load Power:
-
3000W
-
Working Mode:
-
Toggle mode,Latched mode
-
Socket Size:
-
85*48mm
-
Support encoding:
-
1527 Learning code /2262 fixed code
-
Socket Weight:
-
92g
-
Distance:
-
50M (theoretical distance)
-
Features:
-
Mini 16 Amps 3000 watts Wireless Socket

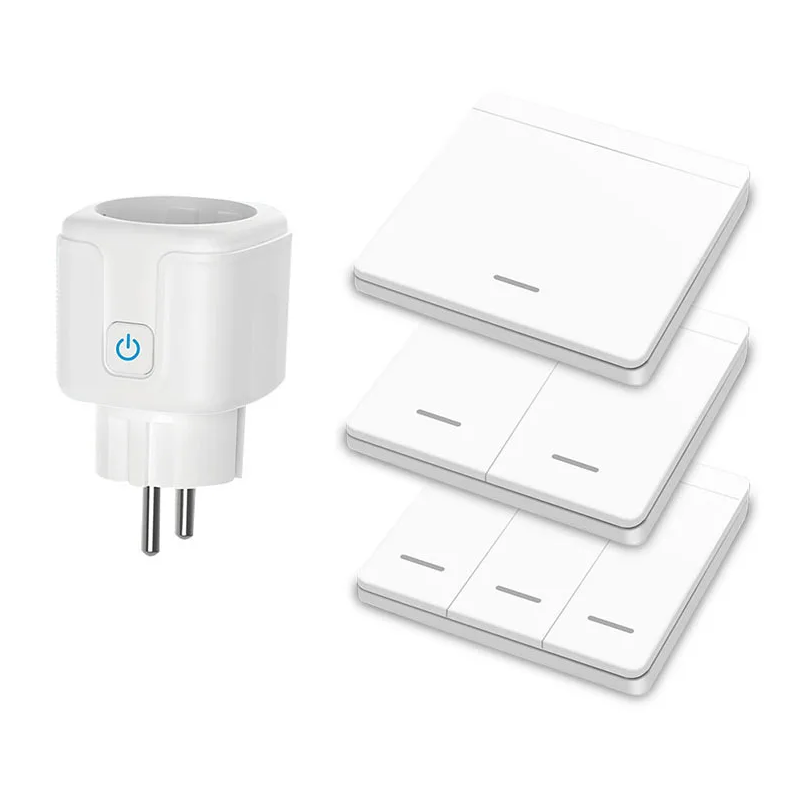

Product Description
|
Socket
|
|
|
|
Voltage
|
AC85-250V
|
|
|
Max Current
|
16A
|
|
|
Color
|
white
|
|
|
Certification
|
CE/FCC/RoHS/UKCA
|
|
|
Socket Size
|
85*48mm
|
|
|
Wall Switch
|
|
|
|
RF frequency
|
433MHz
|
|
|
Remote storege
|
25Pieces
|
|
|
Size
|
86*86mm
|
|
|
Certification
|
CE/FCC/RoHS/UKCA
|
|
Two Rf control modes
It has toggle mode and latched mode:
Toggle mode:
press wall swtich button,socket work,press same wall switch button again,plug stop
Latched mode:
press 1st wall swithc button,socket work,press 2nd wall switch button,socket stop
How to pair with rf socket and wall switches:
1.Press and hold learning button for about 2 seconds
2.1. The indicate will flash once ,release the learning button
3.1.Press any remote button,toggle mode succeed.
2.2. The indicate will flash twice ,release the learning button
3.2.Press A button once,press B button once,latched mode succeed.
How to delete:
Press and hold learning button for about 8seconds(you will see indicate flash several times),succeed.
After delete data,all remtoes cannot control this plug
It has toggle mode and latched mode:
Toggle mode:
press wall swtich button,socket work,press same wall switch button again,plug stop
Latched mode:
press 1st wall swithc button,socket work,press 2nd wall switch button,socket stop
How to pair with rf socket and wall switches:
1.Press and hold learning button for about 2 seconds
2.1. The indicate will flash once ,release the learning button
3.1.Press any remote button,toggle mode succeed.
2.2. The indicate will flash twice ,release the learning button
3.2.Press A button once,press B button once,latched mode succeed.
How to delete:
Press and hold learning button for about 8seconds(you will see indicate flash several times),succeed.
After delete data,all remtoes cannot control this plug
Packing&Shipping
Company Introduction
FAQ
1 .What are the advantages of your company?
A .We have our own factory and we are trading many years;
B. Meet the requirements of the quantity OEM & ODM order available;
C.CE& FCC certification;
D.Offer samples to test.
2. How to proceed an order ?
A: Firstly let us know your requirements or application.
Please confirm the frequency first: 315mhz 433mhz or 868mhz
Then please confirm the chip: rolling code : HCS301, HCS300, HCS200 etc.
Learning code: PT2240, EV1527 etc. Fixed code :SC2260 , SC2262, etc.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.。
3. How long can the remote control use ?
A:ln generally the remote control can be used for many years Only need to replace the battery .
4. What about the lead time?
A:Sample needs 2-5 days, 1000 piece production time needs 1 weeks for order quantity more than
5. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
6. What services can we provide?
Accepted Delivery Terms: CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
7. Is it OK to print my logo on Remote control and receiver product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
8: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
9: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new one to you immediately.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
