Cheap price 6' x 10' 5' x 8' Metal garden galvanized PVC Coated chain link fence double swing gate designs

Cheap price 6' x 10' 5' x 8' Metal garden galvanized PVC Coated chain link fence double swing gate designs

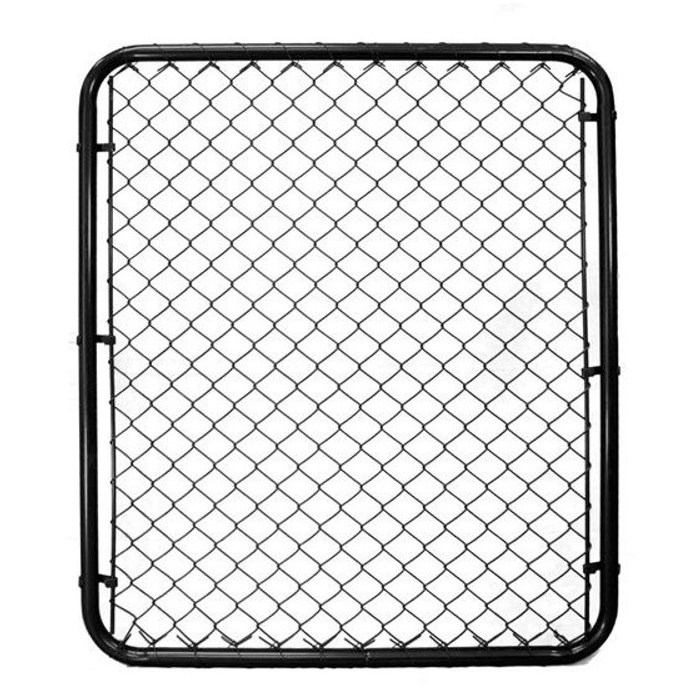

Chain link fence gate is used together with chain link fence in airport, tennis court, zoo, and other places. We can make the vehicle gate and pedestrian gate which are welded or assembled by chain link fence fabric, pipe frame and other fittings.

Chain link fence gates Material:

Iron wire and pvc coated, stainless steel wire; low-carbon steel wire;  electric galvanized iron wire.

Colors of fence gate:

Green, red, yellow, white and so on. Dark Green RAL6005 is most popular

Specification:

Chain link fence fabric: 2"(50mm) hole size, BWG 12 (2.7mm) galvanized wire, knuckled edge.

Round pipe frames: galvanized

Fittings are galvanized also, included are tension bars, clamps, hinges, latch, and drop rods (for double gates).

Gate height: 4'-8' (1.2m-2.4m)

Gate width: 3'-12' (0.9m-3.66m)

Customize available.

Metal garden gate

You can add a center horizontal brace or vertical brace to the gate.

Gates are approximately 2"(50mm) shorter than height indicated to allow space under bottom. Gates are approximately 3-3/4" narrower than width indicated to allow for hardware. Use two leaves to make a double swing gate of the desired width. Barb wire extensions may be added.

1. Chain link fence gate brief information

Materials: High quality mild steel wire, stainless steel wire, aluminum alloy wire, PVC wires, galvanized wire.

Fence Type: Galvanized chain link fence, PVC coated chain link fence, stainless steel chain link fence.

Galvanized Chain Link Fence

Materials: high quality galvanized wire, mild steel wire, aluminum alloy wire, iron wire.

Surface Treatment: Electro galvanized, hot-dipped galvanized.

Opening (mm)	1"	1.5"	2"	2-1/4"	2-3/8"	2-1/2"	2-5/8"	3"	4"
	25	40	50	57	60	64	67	75	100
Wire diameter	18#-13#		16#-18#					18#-7#
	1.2-2.4mm		1.6-4.2mm					2.0-5.0mm
Length/roll	0.50m-5.0m (can be longer)
Width	0.5m-5.0m
Materials and specifications can be made as request.

Stainless Steel Chain Link Fence

Stainless steel chain link fence is the most durable chain link fence compared with galvanized chain link fence and plastic coated chain link fence.

Materials: 201, 302, 304, 304L, 316 stainless steel wire, low carbon steel wire.

Features: acid resistance, alkali resistance, high temperature resistance and weather resistance.

Specifications:

Wire diameter: 1.2-5mm.

Mesh opening: 25, 40, 55, 60, 65, 76 and 100. Special specifications can be available.

PVC Chain Link Fence diamond mesh fence gate

PVC chain link fence is woven accurately with PVC wire.

Materials: PVC wire, stainless steel wire, low carbon steel wire, galvanized wire, iron wire and so on.

Colors: green, white, black, brown. The colors can be chosen according to customers’ request.

Finish treatment: spray, plastic coated and dip.

Height(m)	0.9	1.2	1.4	1.8	2.0	2.4	2.75	3.0
Opening(mm)	50×1.70/2.50 ; 50×2.24/3.15 ; 50×2.50/3.55 ; 50×3.55/4.75 .
Roll length	12.5/25(m)
Colors	Black, white, green, brown, as customers‘ request.

2. Accessories of chain link fence double swing gate designs

1 )Tension Bands are used to attach Tension Bars to the Terminal Posts.

---Standard Size (14 gauge x 3/4") .

---Includes 5/16" x 1 1/4" Carriage Bolt with Nut.

---Fits over a 1 3/8" O.D.* post O.D. - Outside Diameter of Post.

2) Brace Bands are used to attach Rail End Cups, Truss Rod Holders, Base Wire & Barb Wire to the Terminal Posts.

---Standard Size (14 gauge x 3/4") .

---Includes 5/16" x 1 1/4" Carriage Bolt with Nut.

---Fits over a 1 3/8" O.D.* post.

3) Tension Bar.
--Used to hold the tension on the ends of a chain link stretch.
--Requires Tension Bands to attach to a terminal post.
--Galvanized Steel Construction.

4) Rail end cups CONCAVE ADAPTR PART.
--Used to attach top rail to a Bullet Top (sku#0151) terminal post cap.
--Residential Use.
--Great for making a 3 directional or odd angle toprail connection.

5) Post caps ALUM DOME CAP PART——
--Used to cover tops of chainlink posts and other round pipe.
--Fits over 1 3/8" O.D.* pipe.
--Cast Aluminum Construction.

6) LOOP CapsAL LOOP CAP PART——
--For Residential Chainlink.
--Fits over a 1 5/8" line post.
--1 3/8" toprail fits inside of loop.
--Fits over a 1 5/8" line post.
--1 5/8" toprail fits inside of loop.

7) Barbed wire arms 3"CORNER ARM- 3-WIR PART.

woven bag or carton.
Post caps
--Fits over 1 3/8" O.D.* pipe.
--Cast Aluminum Construction.
--Residential or Light Commercial Use.

3. Chain link fabric selvedge and other sizes at request:

Hot-dipped Galvanized Chain Link fabric offers three types selvedge solution,knuckled selvedge,twisted selvedge and barbed wire selvedge,as your choice.

4. Packaging Details:

Chain Link Fence Standard Packing

(1) Rolls chain link fence wrap woven bag at top and bottom

(2) Framework and gate in pallets, out wrap with plastic film to prevent moist

(3) Fittings in wooden case

(4) At last all in 20ft or 40ft container

(5) Or as your special requirement
