Quick Details
-
Color:
-
color
-
Power:
-
Electronic
-
Function:
-
For water wells, mining
-
Certificate:
-
ISO9001
-
Application:
-
Down Hole Geophysical Logging
-
Depth:
-
0-3000M down hole geophysical logging
-
Measurement range:
-
0 ~ 9999.99 m
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Geomative
-
Material:
-
aluminum alloy
-
Color:
-
color
-
Power:
-
Electronic
-
Function:
-
For water wells, mining
-
Certificate:
-
ISO9001
-
Application:
-
Down Hole Geophysical Logging
-
Depth:
-
0-3000M down hole geophysical logging
-
Measurement range:
-
0 ~ 9999.99 m
Overview
Products Description

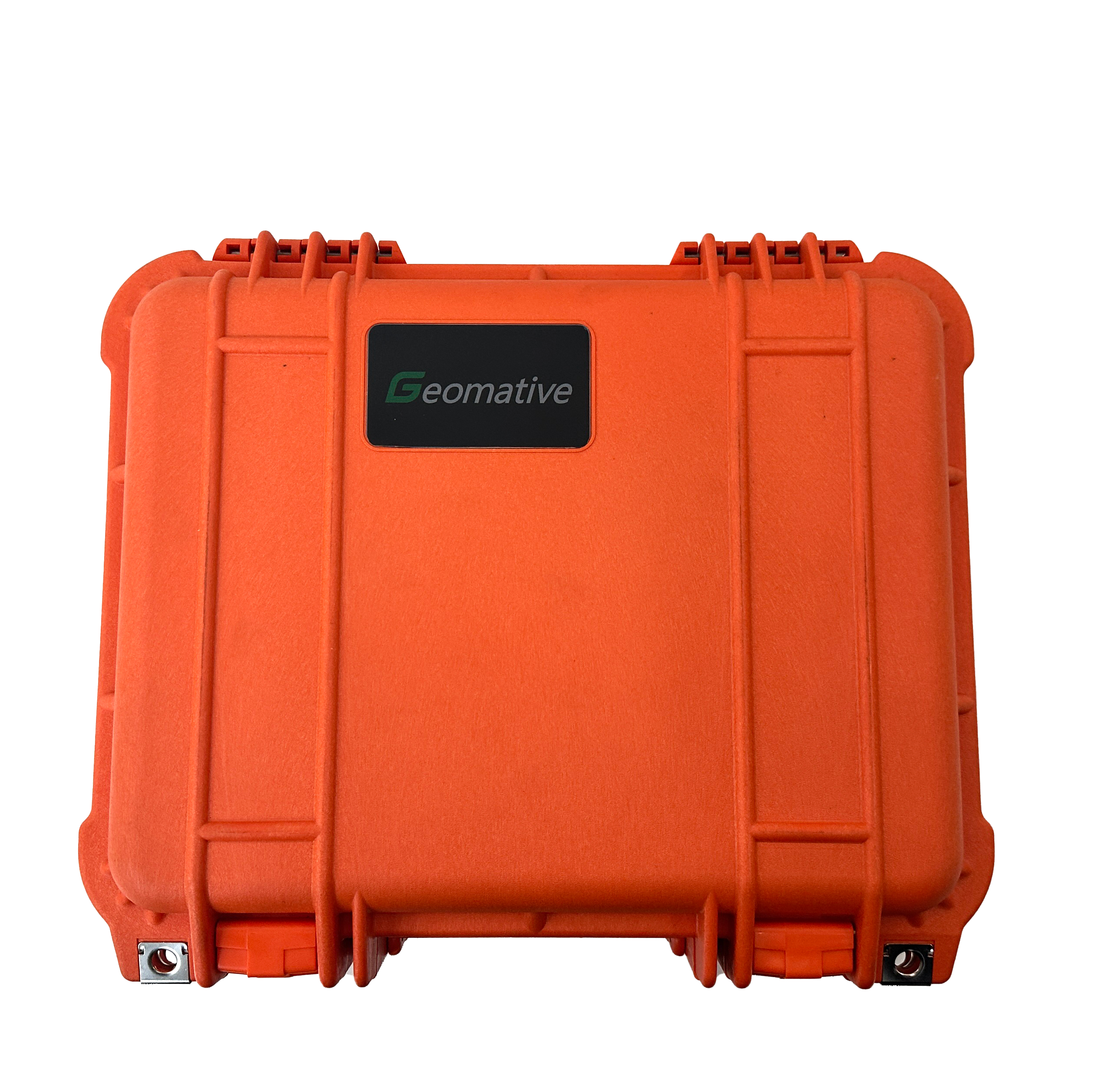

GESL-Y Logging System
GESL-Y is a digital logging system specially designed for the convenience of field work, which can connect with various kinds of pipe and log . Because this system uses a series of advanced technology , it improves the use of one ground-based instrument controlling one heavy logging probe into one ground- based instrument controlling various kinds of logging probe , it also includes the deep measurement , the power supply and so on . The instrument has a light weight and simple operation and maintenance, which can be connected to the tube type , which can be aseismatic, temperature-resistant, moisture proof and high reliability.
Technical Specification:
|
Types
|
Parameter
|
|
Power supply
|
220V, 50 Hz
|
|
Using temperature
|
-20℃ ~ 45℃
|
|
Using humidity
|
90% or less (45℃)
|
|
Depth measurement range
|
0 ~ 9999.99 m
|
|
Depth resolution
|
0.28 mm
|
|
Speed measurement range
|
0 ~ 9999m/h
|
|
Deep optical pulse signal
|
3600 pulses per meter
|
|
Bottom hole output signal
|
bipolar coding
|
|
Communication with the computer
|
RS232 or USB
|
|
The underground signal detection level
|
plus or minus 0.5 V ~ plus or minus 12V
|
|
Figure out the depth of the graph
|
1：10 ；1：20；1：50； 1：100 ；1：500 etc.
|
Main Feature
1. Standardization and modularity
2. Fully underground digital and measurement's signal transmission
3. Oversampling technology to obtain the most formation information
4. Small size of the underground probe with high pressure
Product Field Operation Pictures
