Quick Details
-
Power (kW):
-
2.5
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
TXZZ
-
Weight (KG):
-
260
-
Power (kW):
-
2.5
-
Certification:
-
CE
Product Description

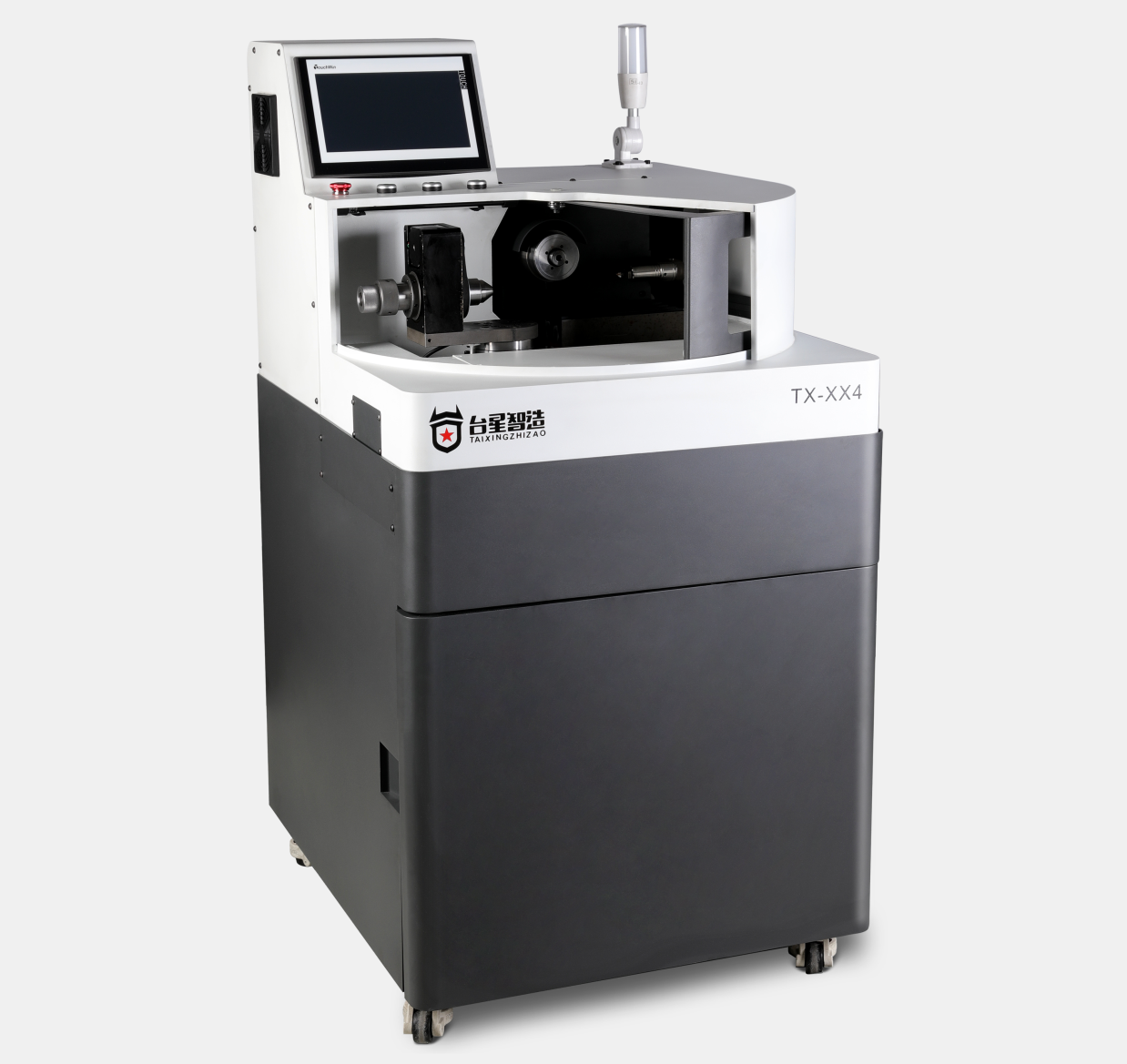

XX4 is a full-automatic 4-axis CNC CNC grinding equipment designed and developed for tool regrinding, which can guarantee tool grinding accuracy, improve production efficiency, save tool regrinding design and development, can guarantee tool grinding accuracy, improve production efficiency, save the cost of use, convenient operation.
Independent research and development of CNC operating system, 4 axis 4 linkage, intuitive 3D operation interface, do not need experience can be easily operated!
The bed is made of high quality castings, which are more stable and not easy to deform after natural aging treatment.
Standard accessories
|
Technical parameters
|
|
|
X axis maximum travel
|
300mm
|
|
X-axis repeated positioning accuracy
|
0.005mm
|
|
Y axis maximum stroke
|
120mm
|
|
Y axis repeated positioning accuracy
|
0.005mm
|
|
Maximum stroke of axis C
|
0°-200°
|
|
C axis repeated positioning accuracy
|
0.005°
|
|
Maximum stroke of Axis A
|
∞
|
|
A axis repeated positioning accuracy
|
0.02°
|
|
Position control
|
Closed-loop stepping motor*4
|
|
Drive way
|
Tap drive straight（X,Y）
|
|
|
Reducer direct drive（C）
|
|
|
Synchronous belt drive（A）
|
|
The clamping range
|
φ3-φ20mm
|
|
Tool clamping length
|
30-65mm
|
|
Tool length
|
50-200mm
|
|
The cutting tool material
|
carbide/High speed steel
|
|
Detection device
|
Three dimensional detector
|
|
Open center mode
|
X/R/A
|
|
The power supply
|
380V 2.5KW
|
|
Spindle power
|
2.2KW
|
|
speed
|
3000-10000RPM
|
|
Grinding wheel linear velocity
|
36M/S
|
|
The equipment size
|
70*85*140cm
|
|
Equipment weight
|
260kg
|
|
Rail oil
|
（ISO VG32）
|
