Quick Details
-
Rated Loading Capacity:
-
3 ton
-
Rated Lifting Moment:
-
9.2m*0.2ton
-
Max. Lifting Height:
-
10m
-
Span:
-
4470mm*39400mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Tonlita
-
Showroom Location:
-
America,Canada,Russia,France,Mexico,South Africa
-
Max working radius:
-
9.2m*0.2ton
-
Max Ground Lifting Height:
-
10m
-
Hook lifting speed:
-
0-4.8m/min
-
Telescopic Boom length/time:
-
26sec (fully extended)
-
Gyratory angle/time:
-
0-360°(continuous)45sec
-
Traveling type:
-
Hydraulic motor driven
-
Gradeability:
-
20°
-
Fuel tank capacity:
-
21L
-
Track size:
-
1600mm*240mm
-
vehicle size:
-
3450mm*950mm*1700mm
Quick Details
-
Weight (KG):
-
2400
-
Marketing Type:
-
Hot sale product
-
Application:
-
Various high and narrow spaces
-
Rated Loading Capacity:
-
3 ton
-
Rated Lifting Moment:
-
9.2m*0.2ton
-
Max. Lifting Height:
-
10m
-
Span:
-
4470mm*39400mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Tonlita
-
Showroom Location:
-
America,Canada,Russia,France,Mexico,South Africa
-
Max working radius:
-
9.2m*0.2ton
-
Max Ground Lifting Height:
-
10m
-
Hook lifting speed:
-
0-4.8m/min
-
Telescopic Boom length/time:
-
26sec (fully extended)
-
Gyratory angle/time:
-
0-360°(continuous)45sec
-
Traveling type:
-
Hydraulic motor driven
-
Gradeability:
-
20°
-
Fuel tank capacity:
-
21L
-
Track size:
-
1600mm*240mm
-
vehicle size:
-
3450mm*950mm*1700mm
Product Show
Max lift capacity: 3000 KG
Max working radius:9.2 M*0.2 T
Max lifting height: 10 M
Size: 3450*950*1700 MM
Hydraulic outriggers take up less space when working, and the outriggers can also be adjusted .
Crawler chassis, more stable, suitable for difficult and complex working environment.

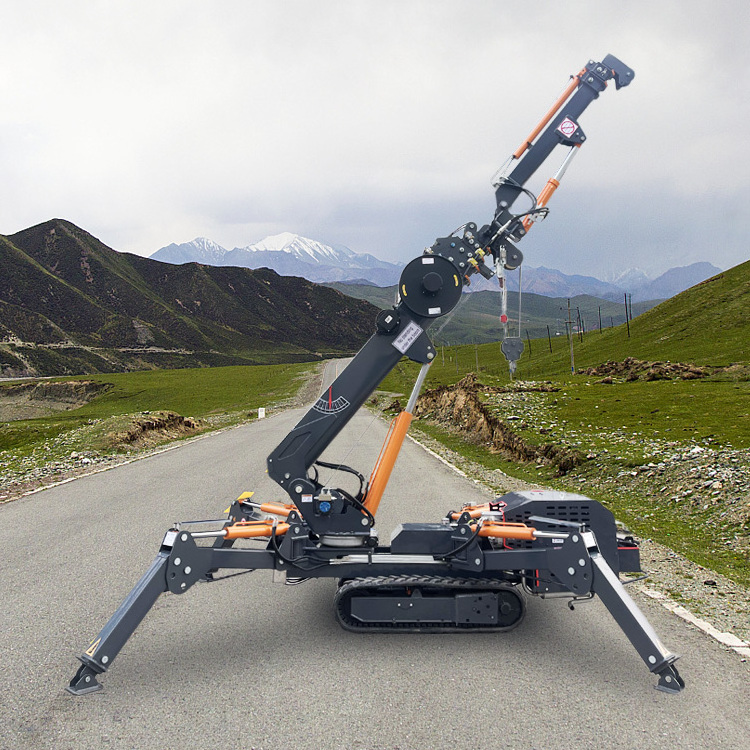

Tonlita Spider Crane:
1. Two energy sources can be switched, equipped with diesel engine and motor at the same time.
2. CE certificate is approved
3. Yanmar Euro V and EPA engines are optional.
4. Lithium battery pure electric models are optional.
5. Lifting height, leg length, color, logo, etc. can be customized.
TSC800 Spider crane with lift capaciry 8000kg.
Standard machine with lift height 18000mm, option fly jib or auxiliary jib, increases the lift height to 20400mm or more.
TSC300 Spider crane with lift capaciry 2950kg.
Standard machine with lift height 9500mm, option fly jib or a
uxiliary jib, increases the lift height to 11900mm.
TSC120 Spider crane with lift capaciry 1200kg.
Standard machine with lift height 6800mm, option fly jib or auxiliary jib, increases the lift height to 9200mm.
TSC500 Spider crane with lift capaciry 5000kg.
Standard machine with lift height 17000mm, option fly jib or auxiliary jib, increases the lift height to 17400mm or more.
Products Details
Product Paramenters
|
Specification
|
|
8t
|
|
|
Max working radius
|
|
18m×2t
|
|
|
Max ground lifting height
|
|
17mX0.9t
|
|
|
Winch device
|
Hook speed
|
0-10m/min
|
|
|
|
Rope type
|
Φ10mm×120m
|
|
|
Telescopic device
|
Boom type
|
5 section
|
|
|
|
Boom length
|
4.5m-16m
|
|
|
Undulating device
|
Boom angle/time
|
0-75°/13sec
|
|
|
Gyratory device
|
Gyratory angle/time
|
0-360°（continuous）/60sec
|
|
|
Outrigger
|
Operating type
|
Hydraulic automatic support +manual unscrewing
|
|
|
|
Max extended dimensions (mm)
|
Length 6300 Front/back4600
|
|
|
Walking system
|
Walking type
|
Hydraulic motor drive, two-speed (rubber track)
|
|
|
|
Walking speed
|
0-5.5km/h
|
|
|
|
Gradeability
|
20°(36%)
|
|
|
Motor
|
Voltage
|
AC380V
|
|
|
Engine
|
Brand
|
Yunnei
|
|
|
|
Type/displacement
|
YN27GBZ/2.7L
|
|
|
|
Starting method
|
Electric
|
|
|
|
Start performance
|
-5°C~40°C
|
|
|
|
Fuel /capacity
|
Diesel /45L
|
|
|
|
Battery capacity
|
24v 45AH
|
|
|
|
Fuel consumption
|
230g/kW-h
|
|
|
|
Noise level
|
Rated speed≤81.5dBA (1m)
|
|
|
Operating system
|
Operating type
|
Manual operation, manual walking + remote control (optional)
|
|
|
Standard configuration
|
Diesel engine and electric motor (dual power)
|
|
|
|
Whole vehicle size
|
4950*1560*2235mm
|
|
|
Applications
1. The Crawler Spider Crane for moving loads quickly, easily, and safely.
2. Spider crane, suitable for occasions with limited space.
3. The spider crane is a full-slewing, boom-type, full-hydraulic transmission crane.
4. The main arm section adopts avU-shaped structure. The single-stage telescopic oil cylinder and the wire rope telescopic mechanism can realize the synchronous expansion and contraction of the main arm.
Packing&Shipping
Our Company
FAQ
Are you a manufacturer or Trader ?
We are a professional manufacture , we have our own R&D team and sales team, we provide one-stop service.
What is your payment term ?
We accept T/T, L/C at sight, Western Union, Paypal etc.
How long is the validity of quotation ?
Generally, our price is valid within 15 days from the date of quotation .The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market .
What is your delivery time ?
Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit.
If we don't have the products in stock, we will arrange the production right now, the delivery time will be 20-30 days,It depend on the order quantity.
Do you provide OEM/ODM Service ?
Yes, offer us necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
Do you have CE certificate ?
Yes, most of our products have the CE certificate
How can we ensure quality?
The final inspection is always carried out before shipment.
How to install the equipment after purchasing ?
We will provide professional installation video to illustrate.Also provide manual.
Do you offer a guarantee?
Yes, we guarantee our product for one year.
