Quick Details
-
Input voltage range:
-
DC 0-1000V
-
Output signal:
-
4-20mA;0-20mA;0-5V;0-10V
-
Frequency range:
-
40Hz~60Hz
-
Power consumption:
-
≤1W OR ≤1.5W
-
Accuracy:
-
≤0.5% F.S.
-
Response time:
-
≤400mS(0-90%) (TYP)
-
Temperature drift:
-
0.02%F.S/℃
-
Certificate:
-
ISO9001,CE
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Qidian
-
Model Number:
-
PA-21
-
Input voltage range:
-
DC 0-1000V
-
Output signal:
-
4-20mA;0-20mA;0-5V;0-10V
-
Frequency range:
-
40Hz~60Hz
-
Power consumption:
-
≤1W OR ≤1.5W
-
Accuracy:
-
≤0.5% F.S.
-
Response time:
-
≤400mS(0-90%) (TYP)
-
Temperature drift:
-
0.02%F.S/℃
-
Certificate:
-
ISO9001,CE

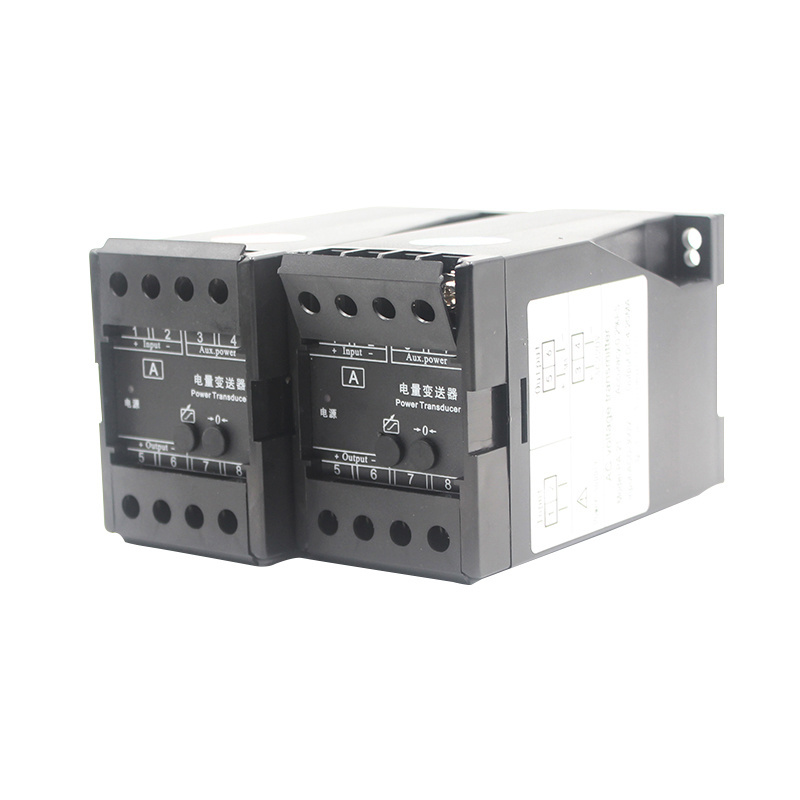

PA-21 AC Voltage Transducer 2 input 2 output 0-1000V Input 4-20mA AC Voltage Transmitter
Description of AC Voltage Transducer
<1>. PA-21 AC voltage trans ducer , it converts AC signals from AC transformers into standard process signals.
<1>. It is used for central detection of power supply circuit and its voltage by converter station, also used to monitor overload non-standard voltage drop.
Features of AC Voltage Transducer
Technical Parameters
| Input | Input voltage range | AC 0-1000V |
| Frequency range | 40Hz~60Hz | |
| Output | Output signal | 4-20mA;0-20mA;0-5V;0-10V etc |
| Output load resistance |
RL≤500Ω(output current signal) RL≥10KΩ(output voltage signal) |
|
| Parameters | Power supply | AC85-265V/DC24V,±10% |
| Rated power consumption |
≤1W(1 in 1 out,DC24V power supply,output 20mA) ≤1.5W(1 in 1 out,AC220V power supply,output 20mA) |
|
| Accuracy | ≤0.2% F.S. | |
| Response time | ≤400mS(0-90%)(TYP) | |
| Temperature drift | 0.02%F.S./℃ (-20℃~+55℃) | |
| Isolation intensity | 2000V AC/1min(between input-ouput-power) | |
| Insulation resistance | ≥100MΩ(between input-ouput-power) | |
| Working temperature range | -20℃~+55℃ | |
| EMC | complies with GB/T 18268.1(IEC61326-1) |
