Quick Details
Quick Details
-
Place of Origin:
-
Anhui, China
-
Textile Testing Instrument:
-
yarn sample winder
ITEM:

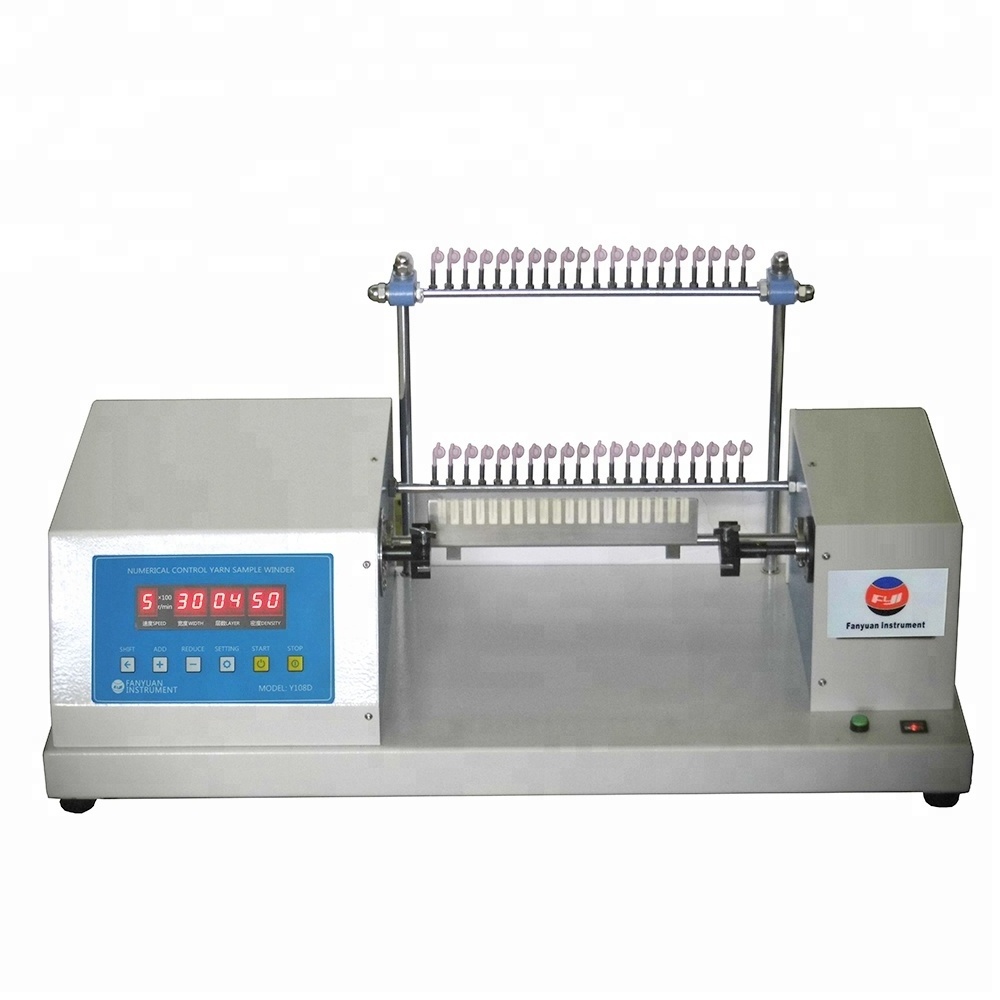

Y108D High Performance Electronic Yarn Smple Winder
MODEL NO.
Y108D
Application :
Y108D yarn sample winder Produces yarn sample cards to a maximum length of 310mm and maximum width of 40mm with up to 20 yarns being wound simultaneously to a pre-determined width with adjustable yarn tension and density. Suitable for sample card, UV resistance measurement, sample adjusting, colorimeter testing, cleanness degree and winding color card.
Rel ated Standards :
|
STANDARDS |
|
|
Note: this yarn sample card winder can conform to but not limit to all the standards above, for more standards conformance, please contact us.
Features :
l Digital setting of winding speed, winding width, winding density, and the number of layer through
control panel (see figure above), to ensure the uniform and the evenness of the sample cards.
l Equipped with adjustable yarn pre-tensioner.
l Easy to operate and endurable.
l Fitted with stepper motor, continuous adjustable winding width from 5-40mm as desired
Key Specification Of Y arn Sample card Winder :
|
Winding speed |
100~900r/min (adjustable) |
|
Winding density |
0.01~1mm(adjustable) |
|
Number of winding layer |
1~99 layer |
|
Max number of working position |
1, 10, 20 (before order, please specify) |
|
Winding width |
5~40mm |
|
Winding board length |
310mm |
|
Effective winding board length |
290mm |
|
Power supply |
220V 50Hz 250W or specified |
|
Reel rack dimension |
510×510×550mm (L×W×H) |
|
Main machine dimension |
830×350×420mm (L×W×H) |
|
Instrument weight |
45Kg |
