Quick Details
-
Brand Name:
-
Acntruck
-
Fork Length:
-
10715
-
Fork Width:
-
4120
-
Overall Dimensions:
-
6850*4210*10715mm
-
Weight (KG):
-
39800 kg
-
Power type:
-
Diesel
-
Wheel base:
-
4550mm
-
Machine weight:
-
39800kg
-
Load Center:
-
1220mm
-
Max.Lifting height:
-
19100mm
-
Power:
-
185/2200
-
Battery:
-
2*12/150 V/Ah
-
Tyres:
-
14.00-24-28PR
-
Model type:
-
TAD851VE
-
Displacement:
-
7.7L
-
Certification:
-
ISO,CE,EPA,
Quick Details
-
Min. Lifting Height:
-
90mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Acntruck
-
Fork Length:
-
10715
-
Fork Width:
-
4120
-
Overall Dimensions:
-
6850*4210*10715mm
-
Weight (KG):
-
39800 kg
-
Power type:
-
Diesel
-
Wheel base:
-
4550mm
-
Machine weight:
-
39800kg
-
Load Center:
-
1220mm
-
Max.Lifting height:
-
19100mm
-
Power:
-
185/2200
-
Battery:
-
2*12/150 V/Ah
-
Tyres:
-
14.00-24-28PR
-
Model type:
-
TAD851VE
-
Displacement:
-
7.7L
-
Certification:
-
ISO,CE,EPA,

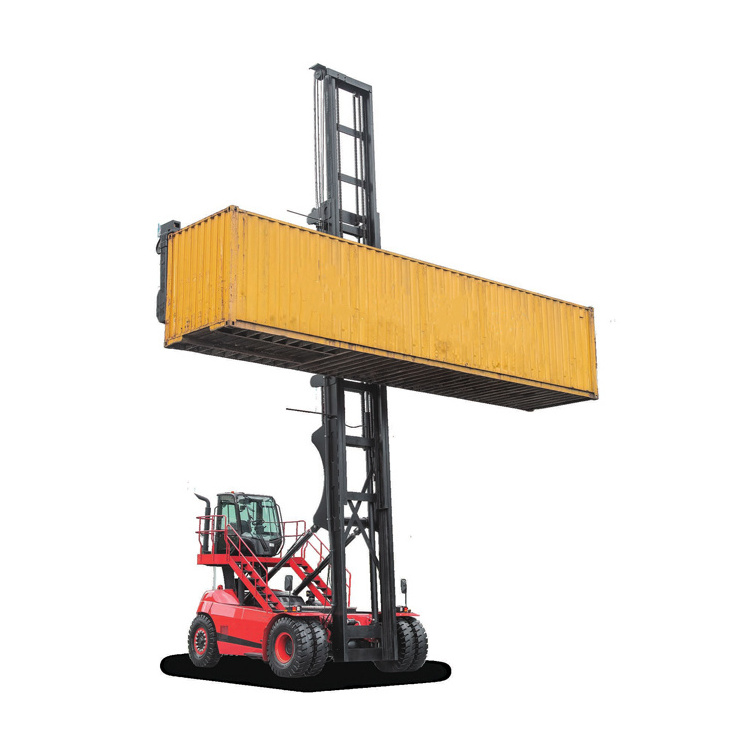

Container Handler empty equipment H90EC-7-XRW83 container lifter
Special Desiging:
Product Features:
1. 32000 gearbox, TAD851VE engine, D81 heavy-duty drive axle, and key hydraulic components are selected from internationally renowned brands, with stable and reliable quality. Accumulation and integration of many years of industry experience, digital product design, through finite element analysis, kinematics, dynamic simulation calculation, fatigue, overload, strain and other tests and field verification to ensure the reliability of the whole machine structure.
2. The mast is made of high-strength steel and has an ultra-wide structure design; the installation point of the inclined cylinder is arranged at a high position to improve the rigidity and stability of the whole machine.
3. The vehicle heat dissipation management system automatically adjusts the heat dissipation intensity, so that each system quickly enters the efficient working area; the large margin heat dissipation capacity design ensures the heat dissipation requirements of high temperature environments.
The electrical system adopts waterproof connectors, combined with a waterproof and dustproof design, to improve the reliability of the electrical system.
4. New spreaders of internationally renowned brands, with higher reliability, longer service life, lower failure rate and lower maintenance costs.
Products show:
Details parts:
Main Specifications:
| Main | 1 | Model | H90EC-7-XRW83 | H90EC-8-XRW83 | ||||
| 2 | Power type | Diesel | Diesel | |||||
| 3 | Raed load | kg | 9000 | 9000 | ||||
| 4 | Load center | mm | 1220 | 1220 | ||||
| 5 | Front overhang | mm | 1340 | 1340 | ||||
| 6 | Wheel base | mm | 4550 | 4550 | ||||
| 7 | Maximum reaching layers | Seven(8'6")Six(9'6") | Eight(8'6")Seven(9'6") | |||||
| Size | 8 | Turn lock | mm | 18670/2200 | 21270/2200 | |||
| 9 | Max. Height | 19100 | 21700 | |||||
| 10 | Side shift of spreader | mm | ±600 | ±600 | ||||
| 11 | Mast inclination (forward/backward) | ° | 3/4 | 3/4 | ||||
| 12 | Dimensions | Length | 6850 | 6850 | ||||
| 13 | Width | 4120 | 4120 | |||||
| 14 | wodth of seader | 6100 | 6100 | |||||
| 15 | mast height (no raised) | 10715 | 12015 | |||||
| 16 | Height of Driving room | mm | 4600 | 4600 | ||||
| 17 | Ground clearance | Mast for no load | 290 | 290 | ||||
| 18 | Wheelbase center | 300 | 300 | |||||
| 19 | Minimum turning radius | mm | 6000 | 6000 | ||||
| 20 | Stacking channel width: 20' box/40' box | mm | 10200/14300 | 10200/14300 | ||||
| Performance | 21 | Lifting speed no load/full load | mm/s | 620/550 | 620/550 | |||
| 22 | Lowering speed No load/full load | mm/s | 550/500 | 550/500 | ||||
| 23 | Driving speed no load/full load | km/h | 28/26 | 28/26 | ||||
| 24 | Max.Traction | kN | 160 | 160 | ||||
| 25 | Full load Gradeability | % | 22 | 22 | ||||
| Weight | 26 | Truck Wejght | kg | 39800 | 41000 | |||
| Tyres | 27 | Tyre | Front | 14.00-24-28PR | 14.00-24-28PR | |||
| 28 | Rear | 14.00-24-28PR | 14.00-24-28PR | |||||
| 29 | No. Front/Rear | 4/2 | 4/2 | |||||
| 30 | Wheelbase | Front | mm | 3280 | 3280 | |||
| 31 | Rear | mm | 2300 | 2300 | ||||
| Driving | 32 | Battery | V/Ah | 2×12/150 | 2×12/150 | |||
| 33 | Motor | Model type | TAD851VE | TAD851VE | ||||
| 34 | Rated power | kW/r/min | 185/2200 | 185/2200 | ||||
| 35 | Max.Torque | N·m/r/min | 1160/1350 | 1160/1350 | ||||
| 36 | No. of Cylinder | 6 | 6 | |||||
| 37 | Displacement | L | 7.7 | 7.7 | ||||
