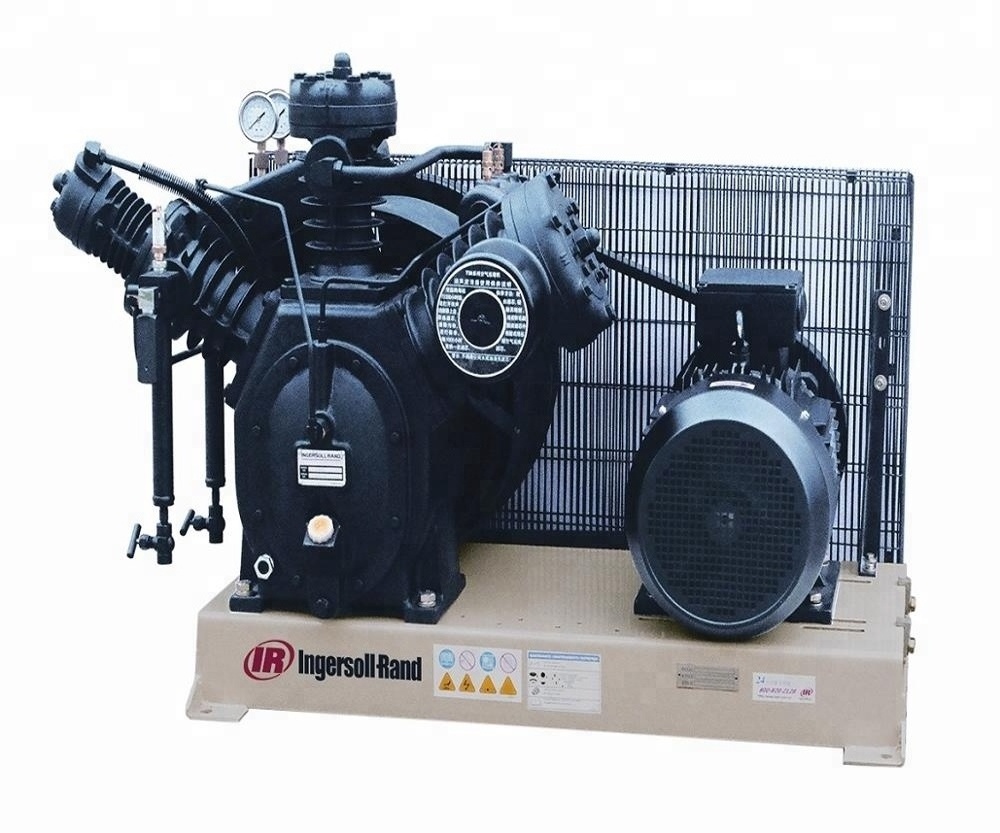

Ingersoll Rand 15t2 30 Cm 15 HP 3 Stage 1000 PSI Air Compressor

Ingersoll Rand 15t2 30 Cm 15 HP 3 Stage 1000 PSI Air Compressor

FOB Reference Price: Get Latest Price

≥1 Pieces

US $3000

Payment:

Export Port:

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shanghai, China

231XB3/35 7T4XB5/70:: 15T4XB15/245 15T4XB20/245

Ingersoll Rand 15t2 30 Cm 15 HP 3 Stage 1000 PSI Air Compressor

INGERSOLL RAND HIGH PRESSURE AIRCOOLED RECIPROCATING AIR COMPRESSOR STANDARD

Main Features:

Regulation: Standard - Auto Stop/Start
Constant speed available at additional cost on 7T4, 15T2, H15T4 and H15T6 package
Standard constant speed control on PA models
Auto condensate drain trap standard on 15T4, H15T4 and H15T6
Direct-on-line starter standard for 15hp and below
Star-delta starter standard for 20hp
Low oil level switch standard on 15T4, H15T4
Pressure switch included (supplied loose)
100% cast icon frame and separately-cast cylinders
Precison machined high quality cast iron cylinders with deep radial fins, suitable for heavy duty operation and longer life
Heat treated stainles steel finger valve assemby, provides a large flow are resulting in lesser heat and carbon build-up. Easy removal & servicing
Runs cooler, resulting in a more efficient compressor that consumes lesser power and lasts longer
Precision balanced for smooth running with replaceable crankpin bushing that protects the crankshaft from damage
Rugged one-piece connecting rod
Solid-end precision type. No bolts or nuts which can come loose
Factory-filled syntetic lubricants, reduces carbon buildup, extends lubricant change period. Improves compressor performance and life span

	CCN	Power KW	Capacity		Operating bar(g)	Pressure psi(g)	Motor	Dimension	Weight Kg	Air Tank Litre
Model	CCN	Power KW	m3/min	ft3/min	Operating bar(g)	Pressure psi(g)	Motor	L×W×H	Weight Kg	Air Tank Litre
231XB3/35	15835812	2.2	0.14	4.8	35.2	500	380-415V/3ph/50hz	908L×540W ×590H	165kg	W/O
7T4XB5/70	15835838	4.1	0.18	6.2	70.4	1000	380-415V/3ph/50hz	1260L×950W ×800H	276kg	W/O
7T2XB10/35	15835820	7.5	0.62	21.6	35.2	500	380-415V/3ph/50hz	1270L×810W ×830H	420kg	W/O
15T2XB15/35	15835507	11.2	1.07	37.3	35.2	500	380-415V/3ph/50hz	1400L×1030W ×860H	473kg	W/O
15T2XB15/55	15835515	11.2	0.92	32.9	56.3	800	380-415V/3ph/50hz	1400L×1030W ×860H	473kg	W/O
15T2XB15/70	15835523	11.2	0.85	29.8	70.4	1000	380-415V/3ph/50hz	1400L×1030W ×860H	473kg	W/O
PA-15/30	15835531	11.2	1.07	37.3	35.2	500	380-415V/3ph/50hz	1400L×1030W ×860H	473kg	W/O
15T4XB15/245	15835762	11.2	0.54	19.2	246.5	3500	380-415V/3ph/50hz	1425L×1030W ×860H	473kg	W/O
15T4XB20/245	15835788	14.9	0.63	21.9	246.5	3500	380-415V/3ph/50hz	1425L×1035W ×1150H	540kg	W/O
H15T4XB15/344	15835770	11.2	0.52	18.1	352.1	5000	380-415V/3ph/50hz	1425L×1035W ×1150H	520kg	W/O
H15T4XB20/344	15835796	14.9	0.62	21.4	352.1	5000	380-415V/3ph/50hz	1425L×1035W ×1150H	540kg	W/O
15T2XB15/35-FF	15830573	11.2	1.07	37.3	35.2	500	380-415V/3ph/50hz	1400L×1030W ×860H	473kg	W/O
15T2XB15/55-FF	15830565	11.2	0.92	32.9	56.3	800	380-415V/3ph/50hz	1400L×1030W ×860H	473kg	W/O
15T2XB15/70-FF	15830577	11.2	0.85	29.8	70.4	1000	380-415V/3ph/50hz	1400L×1030W ×860H	473kg	W/O
PA-15/30-FF	15831985	11.2	1.07	37.3	35.2	500	380-415V/3ph/50hz	1400L×1030W ×860H	473kg	W/O
15T4XB15/245-FF	15830680	11.2	0.54	19.2	246.5	3500	380-415V/3ph/50hz	1425L×1030W ×860H	473kg	W/O
15T4XB20/245-FF	15830748	14.9	0.63	21.9	246.5	3500	380-415V/3ph/50hz	1425L×1035W ×1150H	540kg	W/O
H15T4XB15/344-FF	15830755	11.2	0.52	18.1	352.1	5000	380-415V/3ph/50hz	1425L×1035W ×1150H	520kg	W/O
H15T4XB20/344-FF	15830797	14.9	0.62	21.4	352.1	5000	380-415V/3ph/50hz	1425L×1035W ×1150H	540kg	W/O
H15T6XB20/420-FF	15837206	14.9	0.54	18.9	422.5	6000	380-415V/3ph/50hz	1410L×1035W ×1200H	650kg	W/O

high pressure pcp air compressor compressors/Ingersoll Rand global supply

HP3-35 HP5-70 HP7-35 HP10-35 HP15-30P HP15-35 HP15-55 HP15-70

high pressure air compressor, RECIPROCATING, PISTON

High Pressure Air Compressors

The Ingersoll Rand Type 30 high pressure units, used in industries such as refueling stations, PBM, power plants and engine starting, are a series of base-mounted piston compressors that can provide your customer with pressure as high as 345 barg. Consistent with the 2-stage lubricated range, the high pressure units offer reliability, durability and ease of maintenance.

FEATURES:
