Stop the burner when oil level reaches the high oil float
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
KV05
-
Power:
-
30-60Kw
-
Weight (KG):
-
30 kg
-
Product name:
-
waste oil burner
-
nozzle:
-
siphon brass 1x1.0mm
-
oil consumption:
-
3-5 liter per hour
-
output power:
-
30-60kw
-
tube diameter:
-
114mm
-
output heat:
-
50 000Kcal/h
-
Working Pressure:
-
0.5bar (7psi)
-
fuel:
-
all kinds of waste oil, used engine oil, used soybean oil, etc
-
application:
-
boiler, furnace, oven, air heater, grain dryer, etc
-
business type:
-
original manufacturer
Quick Details
-
Production Capacity:
-
oil consumption:2-3 liter per hour
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KING VITAL
-
Model Number:
-
KV05
-
Power:
-
30-60Kw
-
Weight (KG):
-
30 kg
-
Product name:
-
waste oil burner
-
nozzle:
-
siphon brass 1x1.0mm
-
oil consumption:
-
3-5 liter per hour
-
output power:
-
30-60kw
-
tube diameter:
-
114mm
-
output heat:
-
50 000Kcal/h
-
Working Pressure:
-
0.5bar (7psi)
-
fuel:
-
all kinds of waste oil, used engine oil, used soybean oil, etc
-
application:
-
boiler, furnace, oven, air heater, grain dryer, etc
-
business type:
-
original manufacturer
Available Fuel List
Our burner can utilize all kinds of liquid oil/waste oil with or without i
mpurities
, can be divided to six types,
1) Waste car/engine oil from car, truck, garage, motor oil ,hydraulic oil, etc
2) #2-#5 fuel oil
3) Vegetable oils, like palm oil, soybean oil, used cooking oil from restaurant as well as animal fat oil, etc
4) Mix oil
5) Diesel oil
6) KV-Artesian Oil Burner for Corrosive fuel, strongly acidic, strongly alkaline, such as pyrolysis oil, waste oil from tire&plastic, methanol, etc (
Link
)
Waste Engine Oil
Vegetable Oil
Diesel Oil
Do you know how much heat/power you can gain from different fuels?
Please choose the correct model from the below table before you put an order.
|
Fuel
|
Diesel Oil, Fuel Oil,
Pyrolysis Oil Sample-C1
(Reference Calorific Value:
10 000Kcal/kg)
|
|
Vegetable Oil
(Reference Calorific Value:
9 000Kcal/kg)
|
|
Engine Oil/Waste Engine Oil
(Reference Calorific Value:
8 500Kcal/kg)
|
|
|||
|
Model
|
Max. output heat(Kcal/h)
|
Max.output power(Kw)
|
Max. output heat(Kcal/h)
|
Max.output power(Kw)
|
Max. output heat(Kcal/h)
|
Max.output power(Kw)
|
|||
|
30 000
|
34
|
27 000
|
31
|
25 500
|
29
|
||||
|
50 000
|
57
|
45 000
|
51
|
42 500
|
48
|
||||
|
100 000
|
114
|
90 000
|
102
|
85 000
|
97
|
||||
|
200 000
|
227
|
180 000
|
205
|
170 000
|
193
|
||||
|
300 000
|
341
|
270 000
|
307
|
255 000
|
290
|
||||
|
400 000
|
455
|
360 000
|
409
|
340 000
|
386
|
||||
|
500 000
|
570
|
450 000
|
511
|
425 000
|
483
|
||||
|
600 000
|
682
|
540 000
|
614
|
510 000
|
580
|
||||
|
900 000
|
1023
|
810 000
|
920
|
765 000
|
870
|
||||
|
12 00 000
|
1360
|
10 80 000
|
1227
|
10 20 000
|
1160
|
||||
|
18 00 000
|
2045
|
16 20 000
|
1840
|
15 30 000
|
1740
|
||||
|
24 00 000
|
2730
|
21 60 000
|
2455
|
20 40 000
|
2320
|
||||
|
36 00 000
|
4090
|
32 40 000
|
3682
|
30 60 000
|
3478
|
||||

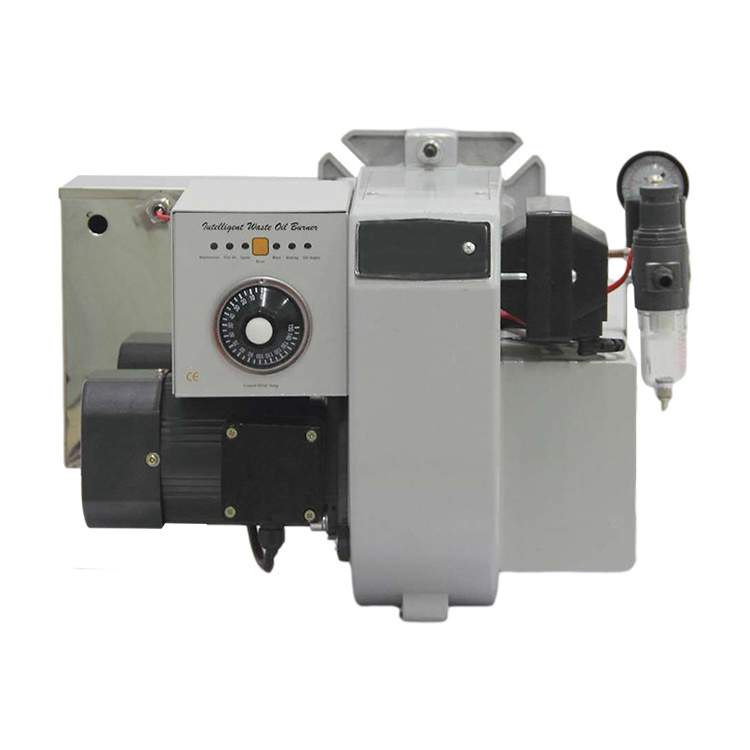

KV05 Oil Burner Description
KV05 Oil Burner Feature
1)
Pc board control, works fully automatically
2) Working stage & Malfunction readable, suit for different kinds of fuel
3) Customized siphon brass nozzles, casted flame ring, reach the best combustion
4) Multi safety protection
Oil pump protection
Stop the burner when oil pumps more than 2 minutes
Photocell protection
Stop the burner when there is light
Oil level protection
External Air Compressor Selection Guide
Burner Catalogue
|
Kingwei Waste Oil Burner Catalogue
|
|
|
|
|||
|
Model
|
Oil Consumption
|
Output Power
|
Max.output Heat
|
|||
|
3 L/H
|
40 Kw
|
30, 000 Kcal/H
|
||||
|
5 L/H
|
60 Kw
|
50, 000 Kcal/H
|
||||
|
8-10 L/H
|
120 Kw
|
100, 000 Kcal/H
|
||||
|
12-20 L/H
|
230 Kw
|
200, 000 Kcal/H
|
||||
|
21-30 L/H
|
340 Kw
|
300, 000 Kcal/H
|
||||
|
30-40 L/H
|
460 Kw
|
400, 000 Kcal/H
|
||||
|
40-50 L/H
|
570 Kw
|
500, 000 Kcal/H
|
||||
|
50-60 L/H
|
700 Kw
|
600, 000 Kcal/H
|
||||
|
70-90 L/H
|
1100 Kw
|
900 000 Kcal/H
|
||||
|
100-120 L/H
|
1400 Kw
|
12, 00, 000 Kcal/H
|
||||
|
Kv180
|
150-200 L/H
|
2000 Kw
|
18, 00, 000 Kcal/H
|
|||
|
200-240 L/H
|
2700 Kw
|
24, 00, 000 Kcal/H
|
||||
|
Kv360
|
300-360 L/H
|
4100 Kw
|
36, 00, 000 Kcal/H
|
|||
Installation Example
Our waste oil burner has various applications, can use for both individual and industrial area
Small power burners are very popular for individual heating, for home, swimming pool, grain dryer, chicken house, fryer, i
ncinerator
etc
Big power burners are suitable for industrial area, such as boiler, furnace, grain dryer, mold casting,
reactor,
incinerator, etc
