Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Sumore Machinery
-
Model Number:
-
SP5180B
-
Voltage:
-
Customer's Requirement
-
Dimension(L*W*H):
-
1197*980*2797mm
-
Power (kW):
-
5.5
-
Weight (KG):
-
2500 KG
-
Marketing Type:
-
Hot Product
-
Maximum borehole diameter:
-
80mm
-
Main motor power:
-
5.5kw
-
Feed range:
-
0.11-0.78mmr
-
Conicity of main cone hole:
-
6NO
-
Spindle speed:
-
40-570r/min
-
Spindle stroke:
-
250mm
-
Spindle box stroke (manual):
-
250mm
-
Vertical travel of worktable:
-
300mm
-
Table size:
-
650*550mm
-
Outline dimension:
-
1197*980*2797mm
Quick Details
-
type:
-
Pillar Drilling Machine
-
Max. Drilling Dia. (mm):
-
80 mm
-
Range of Spindle Speed(r.p.m):
-
40 - 570 r.p.m
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Sumore Machinery
-
Model Number:
-
SP5180B
-
Voltage:
-
Customer's Requirement
-
Dimension(L*W*H):
-
1197*980*2797mm
-
Power (kW):
-
5.5
-
Weight (KG):
-
2500 KG
-
Marketing Type:
-
Hot Product
-
Maximum borehole diameter:
-
80mm
-
Main motor power:
-
5.5kw
-
Feed range:
-
0.11-0.78mmr
-
Conicity of main cone hole:
-
6NO
-
Spindle speed:
-
40-570r/min
-
Spindle stroke:
-
250mm
-
Spindle box stroke (manual):
-
250mm
-
Vertical travel of worktable:
-
300mm
-
Table size:
-
650*550mm
-
Outline dimension:
-
1197*980*2797mm
Looking for excellent portable dilling machine for deep hole drilling on metal wood or plastic materials? Check out our generous range of various metal-working appliations from bench lathe, milling machine, band saw, drilling machine, surface grinder to the spareparts & accessories related from
Sumore Machinary
Product Description

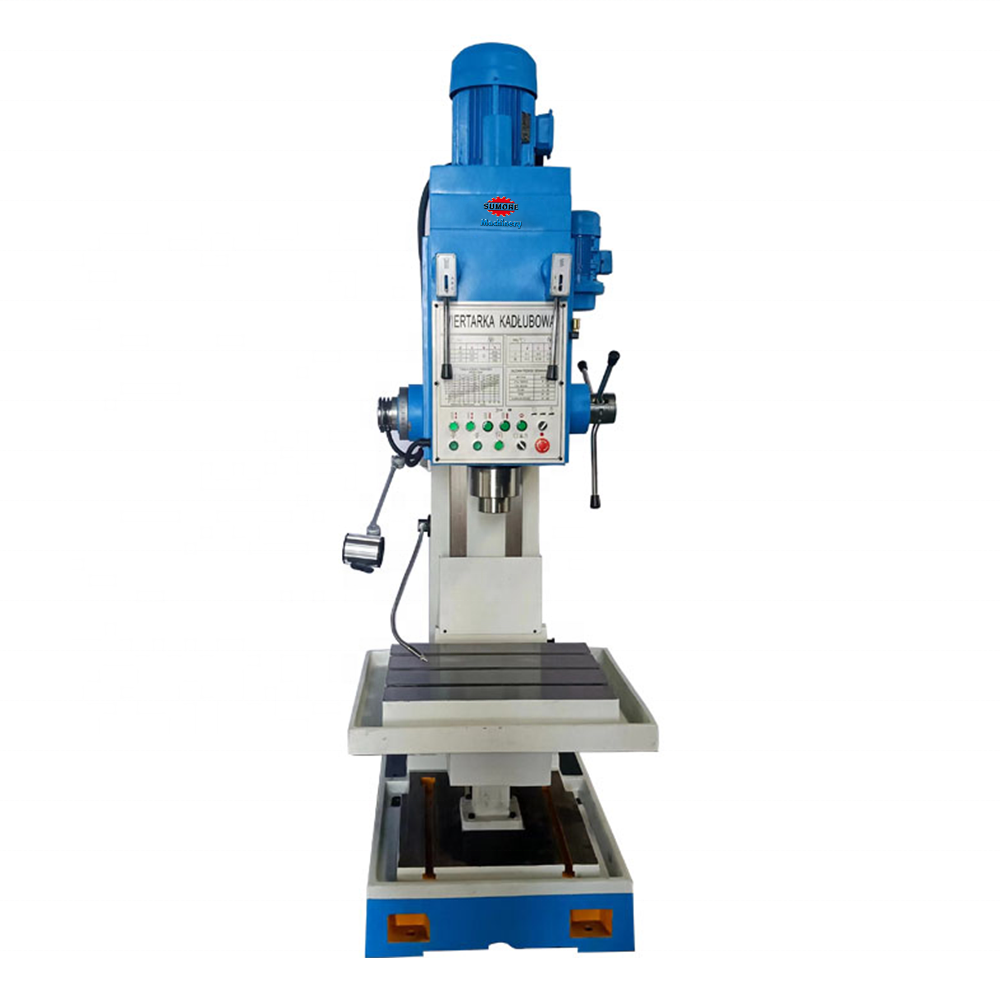

SP5180B Drill Press Drilling Machine 80mm Bench Vertical Drill Press Machine With Factory Price SUMORE
features:
1. Z5180B square column vertical drilling universal machine tool, which can be used for drilling, reaming, countersinking, countersunk drilling, boring and tapping.
2. The automatic reversal of spindle tapping and inching feed are very convenient for blind holes and fixed depth holes.
3. The machine tool has high efficiency, good rigidity, high accuracy, low noise, wide speed change range, centralized operation, novel appearance and convenient use and maintenance.
4. Multi axis machine can realize simultaneous processing of multiple holes and greatly improve processing efficiency.
Specification
|
Main technical parameters
|
SP5180B
|
|
Maximum borehole diameter mm
|
80
|
|
Maximum Feed Resistance N of Main Shaft
|
30000
|
|
Maximum spindle torque N.m
|
800
|
|
Main motor power kw
|
5.5
|
|
Conicity of main cone hole NO
|
6
|
|
Spindle speed r.p.m
|
40-570（9级）
|
|
Feed per spindle revolution mm/rev
|
0.11-0.78（6级）
|
|
Spindle stroke mm
|
250
|
|
Spindle box stroke mm
|
250
|
|
Distance from spindle centerline to pillar mm
|
375
|
|
Longitudinal and transverse travel mm of worktable
|
无
|
|
Vertical travel mm of worktable
|
300
|
|
Maximum distance from end face of spindle to worktable mm
|
850
|
|
Table size mm
|
650*550
|
|
Machine tool weight kg
|
2500
|
|
Outline dimension mm
|
1197*980*2797
|
Product Detail Pictures
Hot Products
Packing & Delivery
|
Package
|
1 set/polywood case (aluminum strips strengthen)
|
|
Minimum Order Quantity (MOQ)
|
1 sets
|
|
Full Container Loading Quantity (FCL)
|
36-60sets/20’GP (unitary; customerized packing available)
|
|
Delivery Time
|
25 calendar days after receiving of advance / full payment
|
