Quick Details
-
Type:
-
Farm Equipment
-
Use:
-
Grain cleaning
-
Production Capacity (kg/h):
-
40000 - 160000
-
Sieve Size(mm):
-
2000*3000
-
Marketing Type:
-
New Product 2023
-
Power (kW):
-
4+0.75
-
Weight:
-
2850 KG
-
Name:
-
combined Grain cleaner
-
Function:
-
Grain cleaning coarse cereals cleaning
-
Wheat processing capacity:
-
120~160t/h
-
Maize processing capacity:
-
100~140t/h
-
Paddy rice processing capacity:
-
40~60t/h
-
Rotary speed:
-
320r/min
-
Feature:
-
automatic cleaning
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
New Hope
-
Dimension(L*W*H):
-
3658*2760*3000
-
Type:
-
Farm Equipment
-
Use:
-
Grain cleaning
-
Production Capacity (kg/h):
-
40000 - 160000
-
Sieve Size(mm):
-
2000*3000
-
Marketing Type:
-
New Product 2023
-
Power (kW):
-
4+0.75
-
Weight:
-
2850 KG
-
Name:
-
combined Grain cleaner
-
Function:
-
Grain cleaning coarse cereals cleaning
-
Wheat processing capacity:
-
120~160t/h
-
Maize processing capacity:
-
100~140t/h
-
Paddy rice processing capacity:
-
40~60t/h
-
Rotary speed:
-
320r/min
-
Feature:
-
automatic cleaning

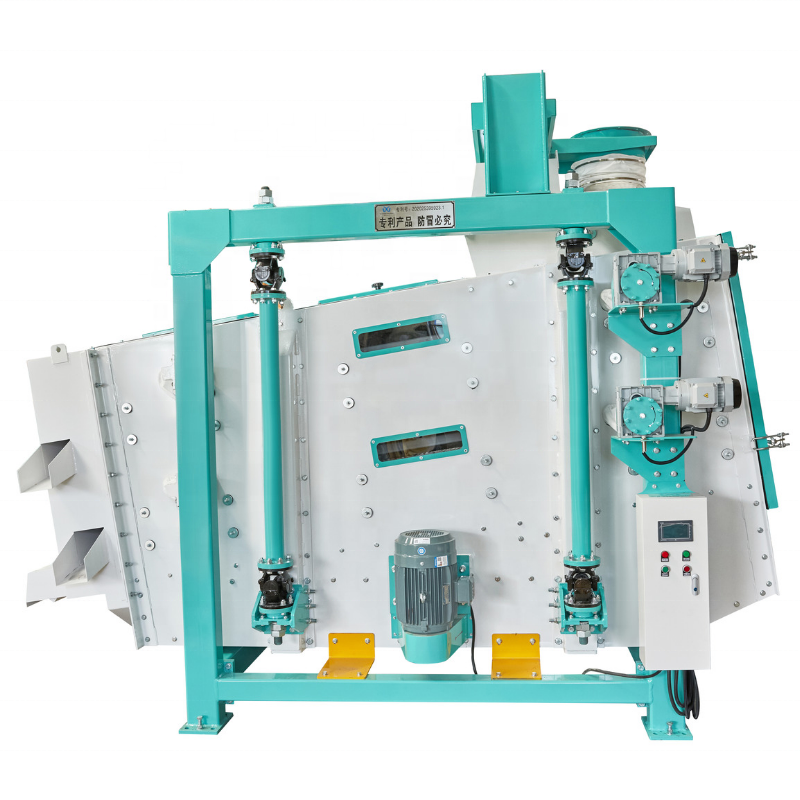

Product Overview
The Rotary Vibration Cleaner is mainly used for cleaning grains such as wheat, paddy rice, maize, coffee beans, soybeans, etc. It can effectively remove large and small impurities in raw grains
|
Model:
|
XWXZS200*300*4
|
XWXZS200*360*4
|
|
Wheat processing capacity（t/h）:
|
120~160
|
160~240
|
|
Maize processing capacity（t/h）:
|
100~140
|
140~220
|
|
Paddy Rice processing capacity（t/h）:
|
40~60
|
60~80
|
|
Sieve surface area（㎡）:
|
11.6
|
14
|
|
Rotation speed(r/min):
|
320
|
320
|
|
Power(kw):
|
7.5+0.75*2
|
7.5+0.75*2
|
|
Weight(kg):
|
5000
|
6000
|
|
External dimensions(W*D*H):
|
2760*3658*3000
|
2760*4258*3000
|
Features:
With
automatic cleaning
function
Large production capacity and
good cleaning effect
.

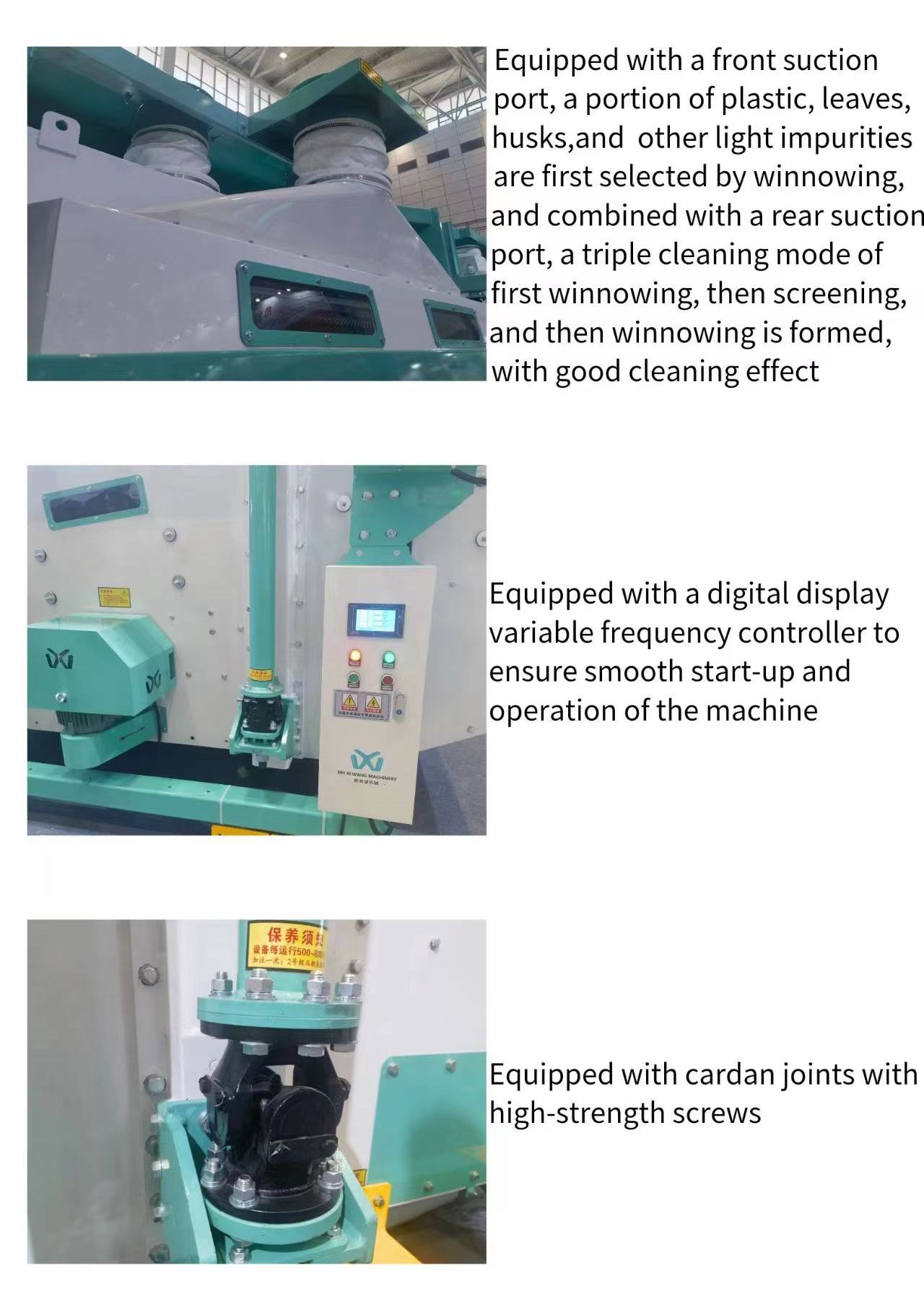

Equipped with a front suction port and a rear suction port,f
orm a
triple cleaning mode
with the sieve.
Equipped with a
digital display variable frequency controller
to ensure smooth start-up and operation of the machine
Equipped with
cardan joints
with high-strength screws

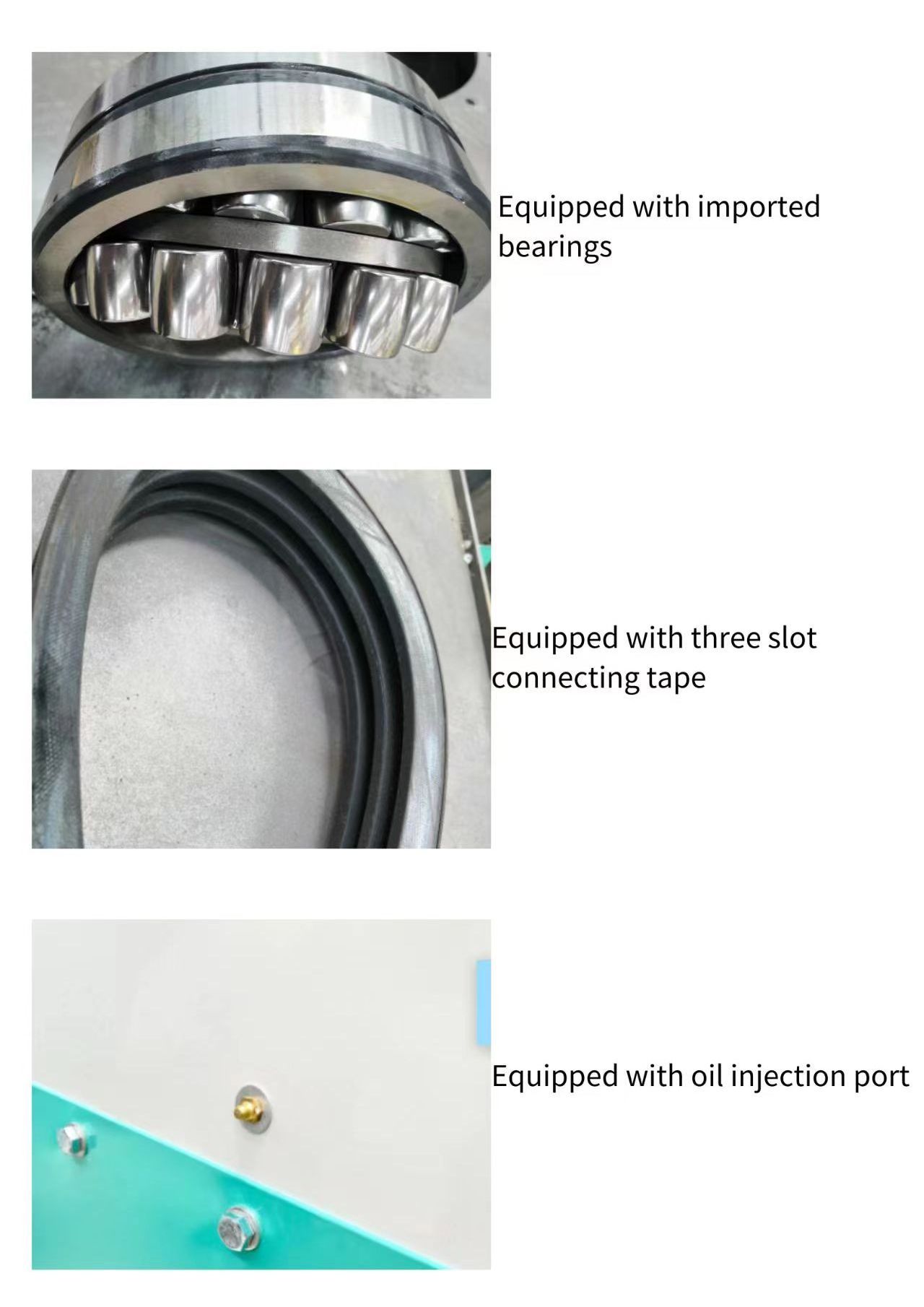

Equipped with
imported bearings
Equipped with
three slot connecting tapes
Details Images
