Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Leizhan
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
as design
-
Weight:
-
as design
-
Name:
-

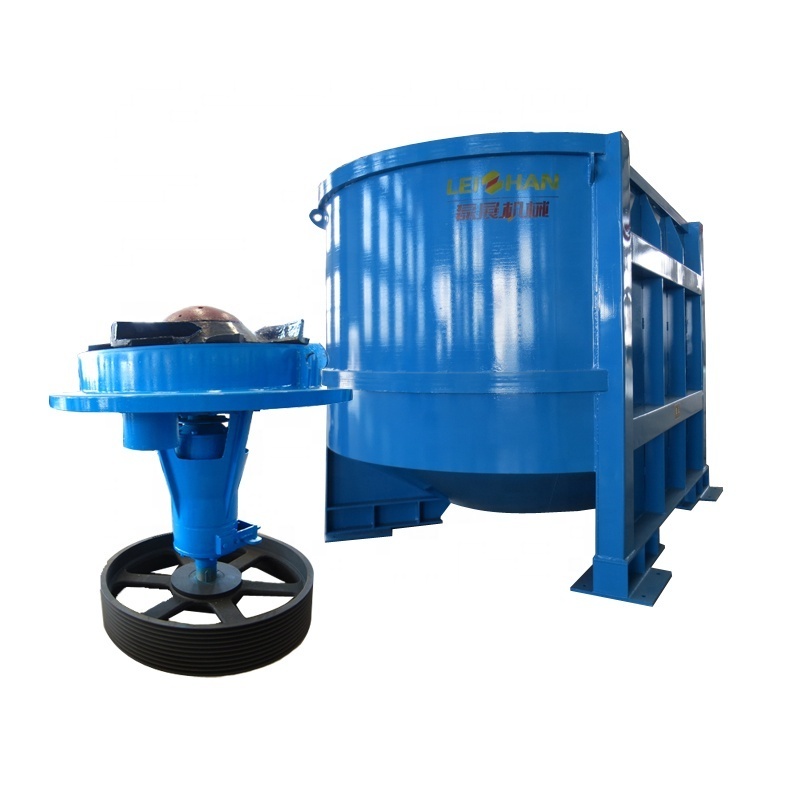

ZDSD Series D Type Hydrapulper
-
Normal Volume:
-
5-140m3
-
Raw material:
-
Waste Paper,pulp board
-
Working consistency:
-
3-5%
-
Color:
-
Green &Blue
-
Production:
-
Pulping line
-
Application:
-
Paper Industry
-
Experience:
-
40 years
-
Certification:
-
BV,CE,ISO
Quick Details
-
Type:
-
Pulping Equipment
-
Production Capacity:
-
30-1200T/D
-
Max. workable width:
-
Custom design
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Leizhan
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
as design
-
Weight:
-
as design
-
Name:
-
ZDSD Series D Type Hydrapulper
-
Normal Volume:
-
5-140m3
-
Raw material:
-
Waste Paper,pulp board
-
Working consistency:
-
3-5%
-
Color:
-
Green &Blue
-
Production:
-
Pulping line
-
Application:
-
Paper Industry
-
Experience:
-
40 years
-
Certification:
-
BV,CE,ISO
Product Description
Product Application
1.ZDSD Series D Type Hydrapulper has new type energy-saving VOKES rotor strengthens hydraulic circulation and fiber relief.
2.D type structure changes slurry flow ways,make contact between pulp and rotor more quick and frequent.The mechanical action is enhanced,pulping time is shortened so that the capacity is improved.
3.Pulp chamber of rotor is higher than the under surface of pulper barrel,form a low pressure area around rotor to collect heavy impurities,reduce wear to cutterhead and sieve plate.So that can prolong the rotor and sieve plate service life .Adjustable gap between rotor and sieve plate ensures the pulping effect.
4.When D type hydrapulper work with hydrapurger,drum screen,ragger,rope cutter and grapple and form continuous pulping and deslagging system,the large light and heavy impurities in pulper can be rejected in time,which avoid pulping the impurities,reduce the following equipment burden.At the same time,it take less time to stop and clean,improve the whole system dealing capacity.
Main specification
|
Type
|
ZDSD23
|
ZDSD25
|
ZDSD27
|
ZDSD29
|
ZDSD31
|
ZDSD33
|
ZDSD35
|
ZDSD37
|
|||||||
|
Normal volume(m
3
)
|
5
|
15
|
25
|
35
|
45
|
60
|
90
|
140
|
|||||||
|
Consist-ency(%)
|
3-5
|
|
|
|
|
|
|
|
|||||||
|
Producti-on capacity(%)
|
30-60
|
80-120
|
180-230
|
270-320
|
350-400
|
460-550
|
650-800
|
1000-1200
|
|||||||
|
Motor power(kw)
|
75
|
160
|
220
|
315
|
400
|
560
|
900
|
1250
|
|||||||
Hydrapulper main spare parts
Rotor
Screen plate
Leizhan Service
Pre-Sales Service
1.Proposing the most suitable scheme and equipment for our clients.
2.Designing and fabricating targeted products according to the special requirements of clients.
3.Training periodically high qualified service technician.
After-Sales Service
1.Assisting our clients for foundation construction of equipment.
2.Dispatching engineers to install and debug equipment.
3.Training the first-line operators on site.
4.Regularly visit clients to solve production problem.
Packing & Delivery
|
Packaging and Delivery
|
|
|
|
Size
|
up to the type
|
|
|
Weight
|
100kg
|
|
|
Details
|
1.Export packing.(Wooden case, carbon cast and pallet).
2. Container (as customer requirements) 3. It is suitable for long distance ocean transportation. |
|
