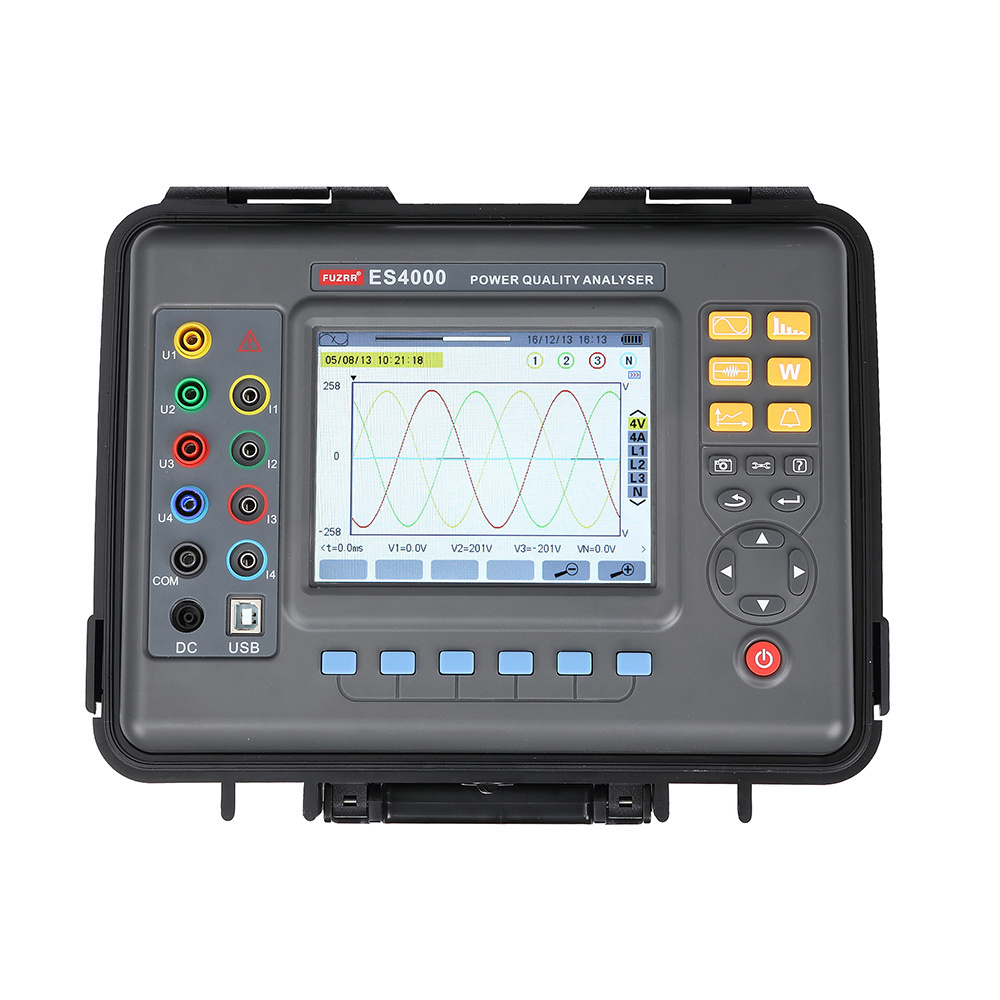

Quick Details
-
Brand Name:
-
FUZRR
-
Model Number:
-
ES4000
-
Phasor Diagram Display:
-
automatic
-
Test voltage input impedance:
-
1MΩ
-
Line voltage:
-
1.0V~2000V
-
Phase voltage:
-
1.0V~1000V
-
Frequency:
-
40Hz~70Hz
-
Electric energy parameters:
-
Wh,varh,Vah
-
Electricity parameters:
-
W,VA,var,PF,DPF
-
FR008 Current Range:
-
10mA~10A
-
FR020 Current Range:
-
1.0A~1000A
-
FR050 Current Range:
-
0.1A~100A
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FUZRR
-
Model Number:
-
ES4000
-
Phasor Diagram Display:
-
automatic
-
Test voltage input impedance:
-
1MΩ
-
Line voltage:
-
1.0V~2000V
-
Phase voltage:
-
1.0V~1000V
-
Frequency:
-
40Hz~70Hz
-
Electric energy parameters:
-
Wh,varh,Vah
-
Electricity parameters:
-
W,VA,var,PF,DPF
-
FR008 Current Range:
-
10mA~10A
-
FR020 Current Range:
-
1.0A~1000A
-
FR050 Current Range:
-
0.1A~100A
Products Description
Product Paramenters
|
Amount of influence
|
Test items
|
Baseline conditions
|
working conditions
|
|
|
Ambient temperature
|
all parameters
|
（23±2）℃
|
-10℃～40℃
|
|
|
Relative humidity
|
all parameters
|
40%～60%
|
<80%
|
|
|
Phase voltage
|
all parameters
|
(100±1%)V
|
1.0V～1000V
|
|
|
Line voltage
|
True RMS value of line voltage
|
(200±1%)V
|
1.0V～2000V
|
|
|
Current
|
Measure the current true rms value
|
(5±1%)A
|
10mA～6000A
|
|
|
Grid frequency
|
all parameters
|
50Hz±0.1Hz
|
40Hz～70Hz
|
|
|
|
Active power and active energy
|
Cosφ=1
|
Cosφ:0.2～1.0
|
|
|
|
Measuring reactive power and reactive energy
|
Sinφ=1
|
Sinφ:0.2～1.0
|
|
|
Harmonic
|
all parameters
|
<0.1%
|
0.0%～100%
|
|
|
Voltage unbalance
|
all parameters
|
<10%
|
0.0%～100%
|
|
|
Instrument operating voltage
|
all parameters
|
DC9.8V±0.1V
|
DC9.5V～10.5V
|
|
|
External electric and magnetic fields
|
all parameters
|
Should be avoid
|
|
|
|
Measured lead position
|
Measure parameters related to current
|
The conductor under test is at the approximate geometric center of the jaw
|
|
|
|
Power supply
|
Rechargeable lithium battery pack 9.6V, external charger
|
|
|
battery symbol 5 grids and 5 grids to display the power, when the battery power is too low, it will automatically shut down after
1 minute |
|
Power consumption
|
The current consumption is 490mA, and the battery works continuously for 10 hours
|
|
Display mode
|
LCD color screen, 640dots×480dots, 5.6 inches, display area 116mm×88mm
|
|
Instrument size
|
Length, width and thickness: 277.2mm×227.5mm×153 mm
|
|
|
FR008 pointed small current clamp: 7.5mm×13mm (model selection)
FR020 round mouth current clamp: 20mm×20mm (type selection) FR050 round mouth current clamp: 50mm×50mm (model selection) |
|
Number of channels
|
4-way voltage, 4-way current
|
|
Line voltage
|
1.0V～2000V
|
|
Phase voltage
|
1.0V～1000V
|
|
|
FR008 Current clamp 10mA～10.0A
FR020 Current clamp 0.10A～100A FR050 Current Clamp 1.0A～1000A Rogowski coil 10A～6000A Optional transformer, instrument port input current 1mA ~ 500mA |
|
Frequency
|
40Hz～70Hz
|
|
Electricity parameters
|
W，VA，var，PF，DPF，cosφ，tanφ
|
|
Electric energy parameters
|
Wh，varh，Vah
|
|
Harmonic
|
Yes, 0 to 50 times
|
|
Total harmonic distortion
|
Yes, 0 to 50 times, each phase
|
|
Expert mode
|
Have
|
|
Transient record group number
|
150 groups
|
|
Voltage flicker
|
Have
|
|
Start current mode
|
Yes, 100 seconds
|
|
Three-phase unbalance
|
Have
|
|
Record
|
300 days (record 20 parameters at the same time, record 1 point every 5 seconds)
|
|
Minimum& Maximum
record value |
Yes, the maximum and minimum values within a period of time can be measured
|
|
Alarm
|
40 different types of parameter options, 12800 groups of alarm logs
|
|
Peak
|
Have
|
|
Phasor Diagram Display
|
automatic
|
|
Screenshot capacity
|
60
|
|
Menu language
|
Chinese English
|
|
Communication Interface
|
USB
|
|
|
In the alarm/trend graph record/transient capture mode (waiting or in progress), the instrument does not automatically shut down
|
|
|
In other test modes, if there is no key operation within 15 minutes, it will automatically shut down after 1 minute.
|
|
Backlight function
|
Yes, suitable for dark places and night use
|
|
Instrument quality
|
Host: 2.41Kg (with battery)
|
|
|
FR008 pointed small current clamp: 168g×4
|
|
|
FR020 round mouth current clamp: 252g×4
|
|
|
FR050 round mouth current clamp: 463g×4
|
|
|
FR300R Rogowski coil integrator: 280g×4
|
|
|
Test lead and power adapter: 800g
|
|
|
Total mass: about 10.8Kg (including packaging)
|
|
Voltage test lead length
|
3m
|
|
Current clamp wire length
|
2m
|
|
Working temperature and humidity
|
-10℃～40℃; below 80%Rh
|
|
Storage temperature and humidity
|
-10℃～60℃; below 70%Rh
|
|
Input resistance
|
Test voltage input impedance: 1MΩ
|
|
Pressure resistance
|
Withstand 3700V/50Hz sine wave AC voltage between instrument circuit and enclosure for 1 minute
|
|
Insulation
|
Between instrument line and sheath shell ≥10MΩ
|
|
Structure
|
Double insulation with insulating anti-vibration jacket
|
|
Suitable for safety regulations
|
IEC 61010 1000V Cat III / 600V CAT IV, IEC61010-031, IEC61326, Pollution Degree 2
|
|
Measurement
|
Measuring range
|
display resolution
|
within the reference range
maximum error |
|
frequency
|
40Hz～70Hz
|
0.01Hz
|
±(0.03)Hz
|
|
Phase Voltage True RMS
|
1.0V～1000V
|
Minimum resolution 0.1V
|
±(0.5%+5dgt)
|
|
Line Voltage True RMS
|
1.0V～2000V
|
Minimum resolution 0.1V
|
±(0.5%+5dgt)
|
|
DC voltage
|
1.0V～1000V
|
Minimum resolution 0.1V
|
±(1.0%+5dgt)
|
|
Current RMS
|
10mA～6000A
|
Minimum resolution 1mA
|
±(0.5%+5dgt)
|
|
Phase voltage peak
|
1.0V～1414V
|
Minimum resolution 0.1V
|
±(1.0%+5dgt)
|
|
Line voltage peak
|
1.0V～2828V
|
Minimum resolution 0.1V
|
±(1.0%+5dgt)
|
|
current peak
|
10mA～8484A
|
Minimum resolution 1mA
|
±(1.0%+5dgt)
|
|
crest factor
|
1.00～3.99
|
0.01
|
±(1%+2dgt)
|
|
|
4.00～9.99
|
0.01
|
±(5%+2dgt)
|
|
Active power
|
0.000W～9999.9kW
|
minimum resolution
0.001W |
±(1%+3dgt)
Cosφ≥0.8 |
|
|
|
|
±(1.5%+10dgt)
0.2≤Cosφ<0.8 |
|
Inductive & Capacitive |
0.000VAR～
9999.9kVAR |
minimum resolution
0.001VAR |
±(1%+3dgt)
Sinφ≥0.5 |
|
|
|
|
±(1.5%+10dgt)
0.2≤Sinφ<0.5 |
|
inspecting power
|
0.000VA～
9999.9kVA |
minimum resolution 0.001VA
|
±(1+3dgt %)
|
|
power factor
|
-1.000～1.000
|
0.001
|
±(1.5%+3dgt)
Cosφ≥0.5 |
|
|
|
|
±(1.5%+10dgt)
0.2≤Cosφ<0.5 |
|
Active energy
|
0.000Wh～
9999.9MWh |
minimum resolution
0.001Wh |
±(1%+3dgt)
Cosφ≥0.8 |
|
|
|
|
±(1.5%+10dgt)
0.2≤Cosφ<0.8 |
|
Inductive & Capacitive |
0.000VARh～
9999.9MVARh |
minimum resolution
0.001VARh |
±(1%+3dgt)
Sinφ≥0.5 |
|
|
|
|
±(1.5%+10dgt)
0.2≤Sinφ<0.5 |
|
apparent energy
|
0.000VAh～
9999.9MVAh |
minimum resolution
0.001VAh |
±(1%+3dgt)
|
|
Phase angle
|
-179°～180°
|
1°
|
±(2°)
|
|
Tanφ (VA≥50VA)
|
-32.76～32.76
|
minimum resolution 0.001
|
φ:±(1°)
|
|
Displacement power factor (DPF)
|
-1.000～1.000
|
0.001
|
φ:±(1°)
|
|
Harmonic ratio
Contains 1 to 50 times (Vrms>50V) |
0.0 %～99.9 %
|
0.1 %
|
±(1%+5dgt)
|
|
Harmonic angle
(Vrms>50V) |
-179°～180°
|
1°
|
±(3°) Harmonic 1～25th
|
|
|
|
|
±(10°) Harmonic 26～50th
|
|
total harmonic ratio
(THD or THD-F)≤50 |
0.0 %～99.9 %
|
0.1 %
|
±(1%+5dgt)
|
|
Distortion factor
(DF or THD-R)≤50 |
0.0 %～99.9 %
|
0.1 %
|
±(1%+10dgt)
|
|
Transformer K factor
|
1.00～99.99
|
0.01
|
±(5 %)
|
|
Three-phase unbalance
|
0.0%～100 %
|
0.1 %
|
±(1 %)
|
|
Current clamp type
|
Current RMS
|
Current RMS
maximum error |
Phase angle φ Maximum error
|
|
FR008 Current Clamp
|
10mA～99mA
|
±(1 % + 3dgt)
|
±(1.5°),Arms≥20mA
|
|
|
100mA～10.0A
|
±(1 % + 3dgt)
|
±(1°)
|
|
FR020 Current Clamp
|
0.10A～0.99A
|
±(1 % + 3dgt)
|
±(1.5°)
|
|
|
1.00A～100A
|
±(1 % + 3dgt)
|
±(1°)
|
|
FR050 Current Clamp
|
1.0A～9.9A
|
±(2 % + 3dgt)
|
±(3°)
|
|
|
10.0A～1000A
|
±(2 % + 3dgt)
|
±(2°)
|
|
Optional transformer
|
Instrument input current 1mA～500mA
|
Selected transformer error ±1 %
|
Selected transformer error ±(1°)
|
|
FR300R Rogowski coil integrator
|
10A～199A
|
±(1%+3dgt)
|
±(3°)
|
|
|
200A～6000A
|
±(1%+3dgt)
|
±(2°)
|
