Hualong machinery HLMW-100/150 high efficiency and yield stone cutting subtitute gang saw machine cut block marble

Hualong machinery HLMW-100/150 high efficiency and yield stone cutting subtitute gang saw machine cut block marble

FOB Reference Price: Get Latest Price

≥1 Pieces

US $260000

≥3 Pieces

US $253500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Fujian, China

Brand Name:: Hualong

Weight:: 45000 kg

Marketing Type:: New Product 2024

Yield rate:: over 97%

Emission reduction of stone power:: over 90%

Noise reduction:: 40 dB

Quick Details

Type:: Block Cutting Machine

Power:: 310 KW

Cutting thickness (max):: 2100mm

Place of Origin:: Fujian, China

Brand Name:: Hualong

Weight:: 45000 kg

Marketing Type:: New Product 2024

Yield rate:: over 97%

Emission reduction of stone power:: over 90%

Noise reduction:: 40 dB

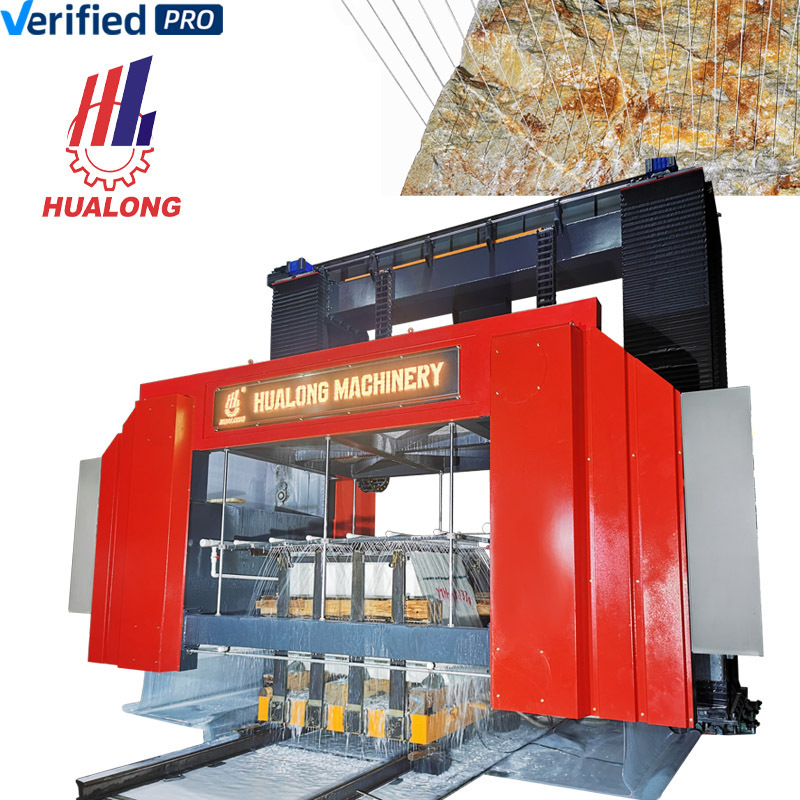

Super Thin Multi Wire Saw Machine

HLMW-100/150 Super Thin Multi Wire Saw , an amazing new machine developed by HUALONG Machinery defining the next generation stone block cutting technology , with 0.3-0.8mm thin diamond wire brings yield rate more than 97%. It's the next machine of yours to cut block to slabs for much more benefits as follows :

Advantage

1) High yield - Tiny wire saws with only 0.4-0.7mm cuting grooves enable a yield of over 97%, 15-20% higher than conventional ones

2) Emission Reduction of Stone Powder: over 90%
3) Noise reduction - No vibration, reduce noise over 40 dB
4) Ultra thin slabs below 10mm can be produced
5) High precision prevent wire marks and improves the slab flatness by 50%
6) Space saving - reduce equipment footprint by more than 30%

Trend of Tomorrow, Your Next

for block cutting

Wire roller

30 km or 50km super thin diamond wire can be stored per roller. Each 800m to 1000m wire is released for cutting and cutting...passivated, and then another length of 800m to 1000m new wire is released for cutting...

Console

Visual human-computer interactive operating system, clear at a glance, easy to use

Electric Control Cabinet

INOVANCE advanced multi-machine drive inverters and servo system complete solution are adopted to secure smooth and reliable performance

Technichal Data for HLMW-100/150
Diameter of diamond wire	mm	0.3 - 0.8
Max. volume of wire stored	km	30 / 50
Operating line speed	m/s	25 - 40
Thickness of slabs cutted	mm	5 - 30
Max. number of cutting pieces	piece	100 / 150
Max. processable size of block	mm	3500x2100x2100
Max. spindle speed	rpm/min	3000
Main motor power	kw	60
Gross power	kw	310
Dimensions (LxWxH)	mm	7800x4800x6580

Super Fine Multi Wire Saw Machine

* Output: 90 pcs/m for 1.08cm thick slabs

* Rate of Output: 98.2%

* Emission Reduction of Stone Powder: 90%

* More smooth surface cutted

HLMW-100/150 Super Thin Multi Wire Saw Debut @ 2024 Xiamen International Stone Fair

Q:What is the MOQ?
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
