LPG 10KG 24.5L Composite Gas Cylinders Plastic Material LPG Tank for Cooking

LPG 10KG 24.5L Composite Gas Cylinders Plastic Material LPG Tank for Cooking

FOB Reference Price: Get Latest Price

≥50 Pieces

US $37

≥500 Pieces

US $35

≥1000 Pieces

US $32

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: 24.5L

Working Pressure:: 20Bar

Hyd.test Pressure:: 30bar

Outer Diameter:: 305mm

Water Capacity:: 24.5L

Standard:: EN12245

Weight(without valve/cap):: 10kg

Length(without valve):: 575mm

Marerial:: HDPE

Filling Medium:: LPG,propane,Butane

MOQ:: 50

Quick Details

Material:: Composite Material

Use:: LPG

Place of Origin:: Zhejiang, China

Model Number:: 24.5L

Working Pressure:: 20Bar

Hyd.test Pressure:: 30bar

Outer Diameter:: 305mm

Water Capacity:: 24.5L

Standard:: EN12245

Weight(without valve/cap):: 10kg

Length(without valve):: 575mm

Marerial:: HDPE

Filling Medium:: LPG,propane,Butane

MOQ:: 50

Products Description

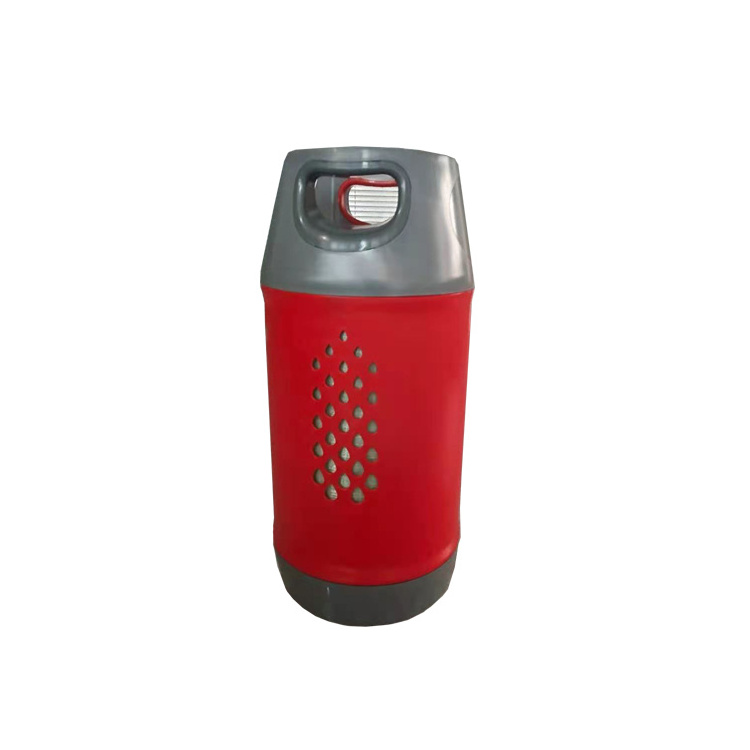

Composite LPG cylinder

Standard			EN12245
Working pressure			20bar
Testing pressure			30bar
Medium			LPG
Materials			HDPE+Glass fiber
Diameter（mm）			305mm
Volume（L）			24.5L
Length（mm）			575mm
Weight（Filling propane kg）			10KG

-Appearance and retentivity The Composite LPG cylinders are produced by high anti-corrosion material, which will not loose due to rust. The appearance color will always maintain fresh -Visible liquid level Due to the cylinder body is semitransparent, the users can easily supervise the LPG content inside from the visible liquid level -Light and portable The weight of composite LPG cylinder is only 40% of the traditional metal cylinder, and the ergonomically designed soft handle makes it portable for both adults and children -High level safety The cylinder liner is made of HDPE, which has high corrosion resistance to LPG, atmosphere and aqueous solution containing sulfur. It will not explose due to the corrosion -Long life and easy inspection The first and second periodical inspection of the composite LPG cylinder is 5 years, and the third periodical inspection is 10 years, which greatly extends the service life of the product

Our Advantages

- Glass fiber
We choose a kind of special wrapping fiber with good invasion, high gelatinization and no balling-up

-Epoxy resin

The epoxy resin we choose has advantages of lower curing temperature, quicker curing speed, longer service life and lower price

-HDPE

High-density Polyethylene, has the advantage of wide range of sources and cheap. It can be used as liner material to revent the gas leakage, also can be used as external wear-resistant material

Production and testing

Filament winding

Heat threatment

Valve installation

Air tightness test

Hydrostatic test

Finished product

Fatigue Test

Bursting Test

Heat Treatment

Logistics and Packaging

We can provide a series of package and logistics solutions according to the customer’s requirements, to ensure our goods reach our customers on time and safely

FAQ

*Q1: Are you manufacturer or trade company?
*A1: We are a Chinese manufacturer, and have been specializing in manufacturing gas cylinders for more than 10 years. Our company brand is “HY”.
*Q2: What is your daily production capacity?
*A2: Our production capacity everyday is 800~1000 units.
*Q3: What is your delivery time?
*A3: Usually our delivery time is 25-45 days against the advance payment. Mainly it depends on when we get the production materials.
*Q4: What certificates do you have?
*A4: We have ISO9001 and IATF16949 for management system, and ISO9809, ISO11439 and ECE R110 for production approval.
*Q5: Do you accept OEM production?
*A5: Of course, we have served several famous motor OEMs, such as TOYOTA(Thailand)-Thailand, IKCO-Iran, GAZ-Russia,DF-China, and FOTON-China, etc. We would like to serve more customers with our superior quality.
*Q6: Can you provide samples to us?
*A6: Yes, we can provide 1-2 samples for your testing freely, but you need to undertake the logistic cost firstly.
*Q7: Can youcustomize the products?
*A7: Yes, we can provide you with various customized products. For example, your company brand/logo,different accessories and your favorite colors.
