Quick Details
-
Voltage:
-
380V
-
Power:
-
252KW
-
Dimension(L*W*H):
-
75m*20m*4.5m
-
Weight:
-
30 kg
-
Name:
-

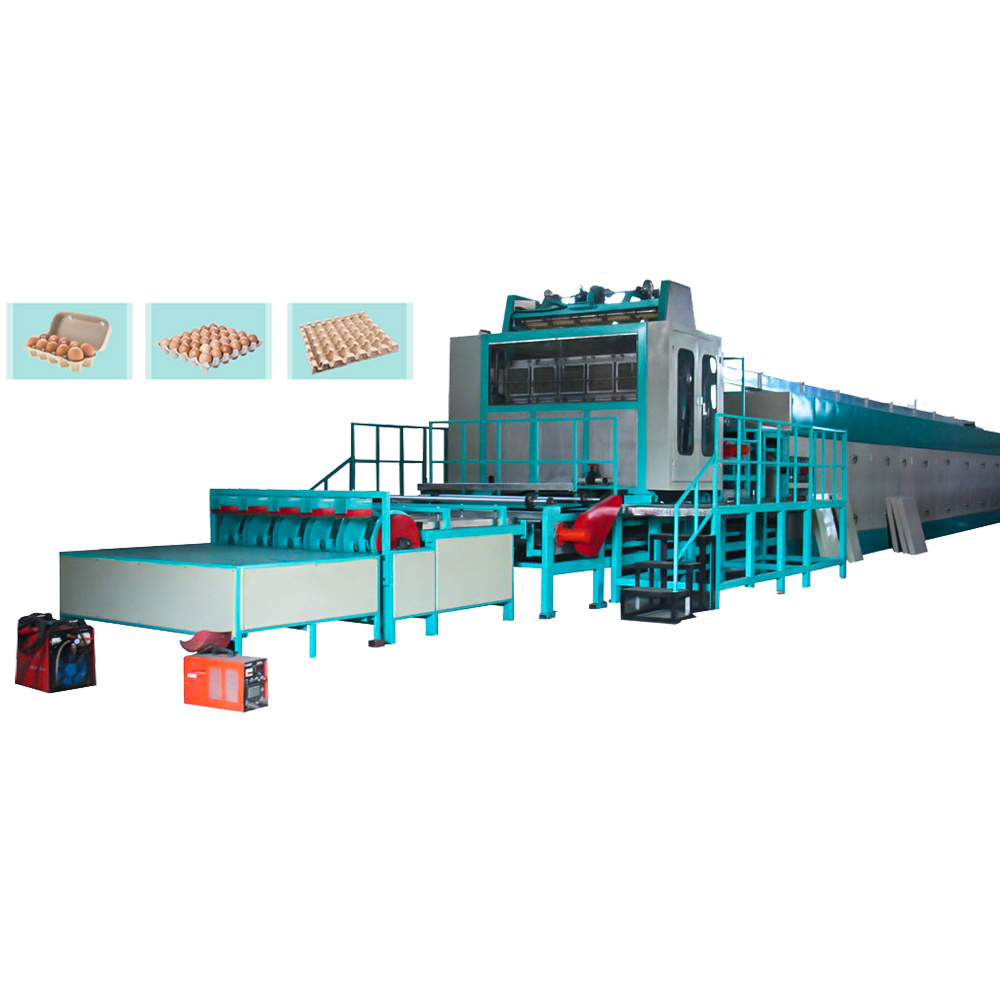

Fully Automatic Paper Pulp Egg Tray Production Line
-
Raw material:
-
Waste Paper
-
Finished Products:
-
Egg Tray Egg Carton
-
Color:
-
Customized Color
-
Type:
-
Packaging Line
-
Fuel:
-
Natural Gas
-
Item:
-
Recycled Paper Egg Tray Making Machine
-
Feature:
-
Eco-Friendly
-
Drive way:
-
Electric Motor
-
Forming Type:
-
Rotary Egg Tray Machine
Quick Details
-
Production Capacity:
-
3800-4000 pieces/ hour
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DEYI
-
Voltage:
-
380V
-
Power:
-
252KW
-
Dimension(L*W*H):
-
75m*20m*4.5m
-
Weight:
-
30 kg
-
Name:
-
Fully Automatic Paper Pulp Egg Tray Production Line
-
Raw material:
-
Waste Paper
-
Finished Products:
-
Egg Tray Egg Carton
-
Color:
-
Customized Color
-
Type:
-
Packaging Line
-
Fuel:
-
Natural Gas
-
Item:
-
Recycled Paper Egg Tray Making Machine
-
Feature:
-
Eco-Friendly
-
Drive way:
-
Electric Motor
-
Forming Type:
-
Rotary Egg Tray Machine
Product Description
High Quality Eco-friendly Paper Pulp Coffee Cup Holder Molding Machine/ Small Egg Tray Manufacturing Machine
This automatic egg tray machine is suitable for every kind of scale production plants. It can produce egg tray, egg boxes and other shapes of tray. Its output is 6000pcs/h for 30 cavity trays, so it can allow workers to work three shifts per day. The product can be recycled, is a new green packaging, which is not only the development of environment-friendly enterprise, also long get rich choice.
Machine Parameter
|
Item
|
Information
|
Notes |
|
Water
|
1-1.5T/hr |
|
|
Raw material
|
1000kgs/hr
|
|
|
Electricity
|
239.5kw/hr |
|
|
Natural gas
|
40m³/hr |
For the energy source, only need to choose one according to local condition.
|
|
Diesel oil
|
36kgs/hr
|
|
|
Worker
|
5 person/shift
|
|
|
Total power
|
About 120KWh--130KWh per hour
|
|
Detailed information
Self-priming pump
Power:5.5kw
Usage: removal the water of vacuum tank
Usage: removal the water of vacuum tank
Drying systerm
Use geating fuels, such as diedel oil， coal, LPGS, GAS, etc to dry the formeg wet blanks.
Pulper
Auto feeding and auto give water.
Material:carbon steel Power :45kw
Capacity :5m³
Material:carbon steel Power :45kw
Capacity :5m³
Forming machine
The parts connected with pulp are all 304# stainless steel
Capacity :6000pcs/h
5molds*8faces
Power：15.5kw
With automatic oil feeding system and automatic cleaning
mould
Capacity :6000pcs/h
5molds*8faces
Power：15.5kw
With automatic oil feeding system and automatic cleaning
mould
Installation Instructions
The flowing items must be prepared by the buyers before installation：
The pulp tank, water tank and draining system should be built of reinforced concrete. Buyer is responsible to guarantee the power and water supply to make sure equipment and controlling cabinets can work normally.
All necessary craft pipelines (if you can provide your factory area, we can design all pipelines free of charge) and valve,
electric wires, cable, wire slots, bracket and so on. Above should be prepared in advance.
All necessary craft pipelines (if you can provide your factory area, we can design all pipelines free of charge) and valve,
electric wires, cable, wire slots, bracket and so on. Above should be prepared in advance.
Packaging And Shipping
FAQ
Q:Why are many pictures on the Internet the same as your company?
A:Because our company has been specialized in pulp manufacturing machinery for more than 30 years, after years of exploration and continuous research, the appearance of the equipment and the ease of use have led the Chinese pulp manufacturing machinery industry,it is inevitable to be stolen by competitors, but our core technology is not something that everyone can learn.
Q:Why I choose your company?
A:a) We are the Leading puple making machine Manufacturer in China.
b) We have made pulp manufacturing machine about 30 years with strong experience and advanced technics.
c) Best Quality & Best Service with Competitive price.
d) 100% inspection Before Shipment, and got CE certificate.
e) We have Professional technical team, supply 24 hours service
A:Because our company has been specialized in pulp manufacturing machinery for more than 30 years, after years of exploration and continuous research, the appearance of the equipment and the ease of use have led the Chinese pulp manufacturing machinery industry,it is inevitable to be stolen by competitors, but our core technology is not something that everyone can learn.
Q:Why I choose your company?
A:a) We are the Leading puple making machine Manufacturer in China.
b) We have made pulp manufacturing machine about 30 years with strong experience and advanced technics.
c) Best Quality & Best Service with Competitive price.
d) 100% inspection Before Shipment, and got CE certificate.
e) We have Professional technical team, supply 24 hours service
