Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Cowin
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
Machine Model
-
Power (kW):
-
1.1
-
Weight:
-
300-1000kg
-
Applicable Industries:
-
polymer compounding
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Power:
-
0.55-1.5 kw
-
Automatic Grade:
-
High Automation
-
Certification:
-
CE Certificate
Quick Details
-
Screw Design:
-
Double-screw
-
Screw diameter (mm):
-
16 mm
-
Screw Speed (rpm):
-
600 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Cowin
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
Machine Model
-
Power (kW):
-
1.1
-
Weight:
-
300-1000kg
-
Applicable Industries:
-
polymer compounding
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Power:
-
0.55-1.5 kw
-
Automatic Grade:
-
High Automation
-
Certification:
-
CE Certificate

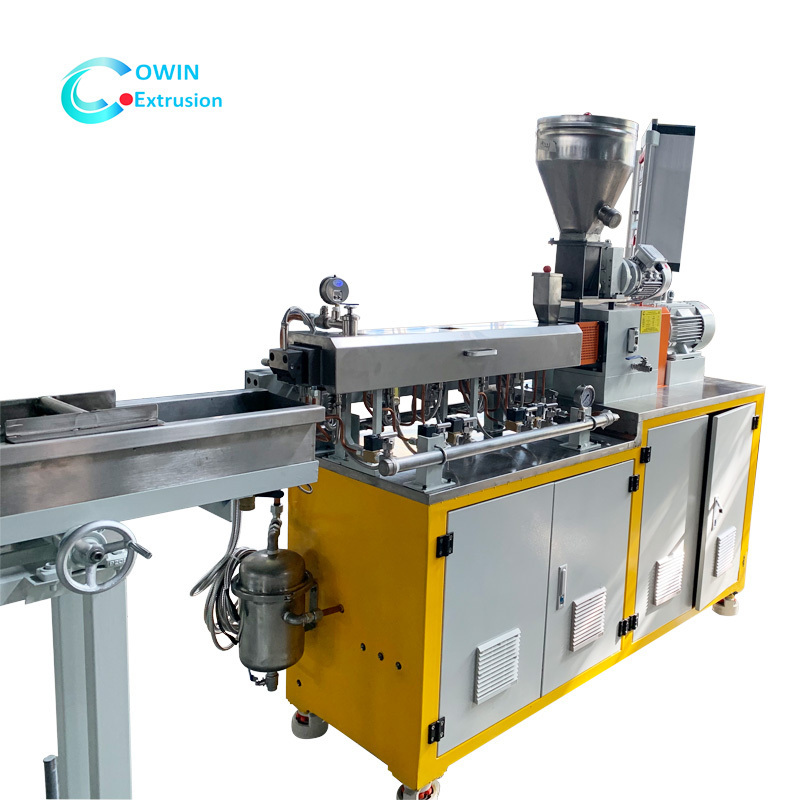

Nanjing Wholesale Polymer Compounding Co-rotating Lab Twin Screw Extruder
This mini lab compounding extruder is designed for medical university and R&D center.
The capacity could be from 15g to 1000g/hr. L/D could be from 16 to 48 based on different applications of compounding and reaction extrusion. We can optimize the design according to different formula as well as process to meet different requirement.
The lab extruder applies split type structure with modular design which is very easy to clean and observe the whole process of polymer in the barrel.
Only civilian electric is enough for the machine running.
Movable cartridge, also can be put on the platform in the laboratory.
SPECIFICATION
| machine type |
screw diameter (mm) |
screw speed (rpm) |
motor power (Kw) |
output (g/h) |
| CHT-12 | 12 | 600 | 0.55-0.75 | 15-500 |
| CHT-16 | 16 | 600 | 1.1-1.5 | 20-1000 |
