Quick Details
-
Max. Wheel Weight:
-
no limited
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PRECISION4TECH
-
Model Number:
-
PRE-W5
-
Warranty:
-
12 Months, one year
-
Product name:
-
wheel alignment
-
Camera:
-
5 Million Pixel High Resolution
-
Language:
-
Global Multi-language
-
Clamp:
-
4 Point (11''~25'')
-
bean height adjustment:
-
manual
-
Certification:
-
CE / ISO9001
-
color:
-
red or customized
-
packaging:
-
wooden box
Quick Details
-
Power:
-
2.2kw
-
Power Supply:
-
220V/380V, 220V or customized
-
Balancing Speed:
-
no
-
Max. Wheel Weight:
-
no limited
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PRECISION4TECH
-
Model Number:
-
PRE-W5
-
Warranty:
-
12 Months, one year
-
Product name:
-
wheel alignment
-
Camera:
-
5 Million Pixel High Resolution
-
Language:
-
Global Multi-language
-
Clamp:
-
4 Point (11''~25'')
-
bean height adjustment:
-
manual
-
Certification:
-
CE / ISO9001
-
color:
-
red or customized
-
packaging:
-
wooden box
Products Description

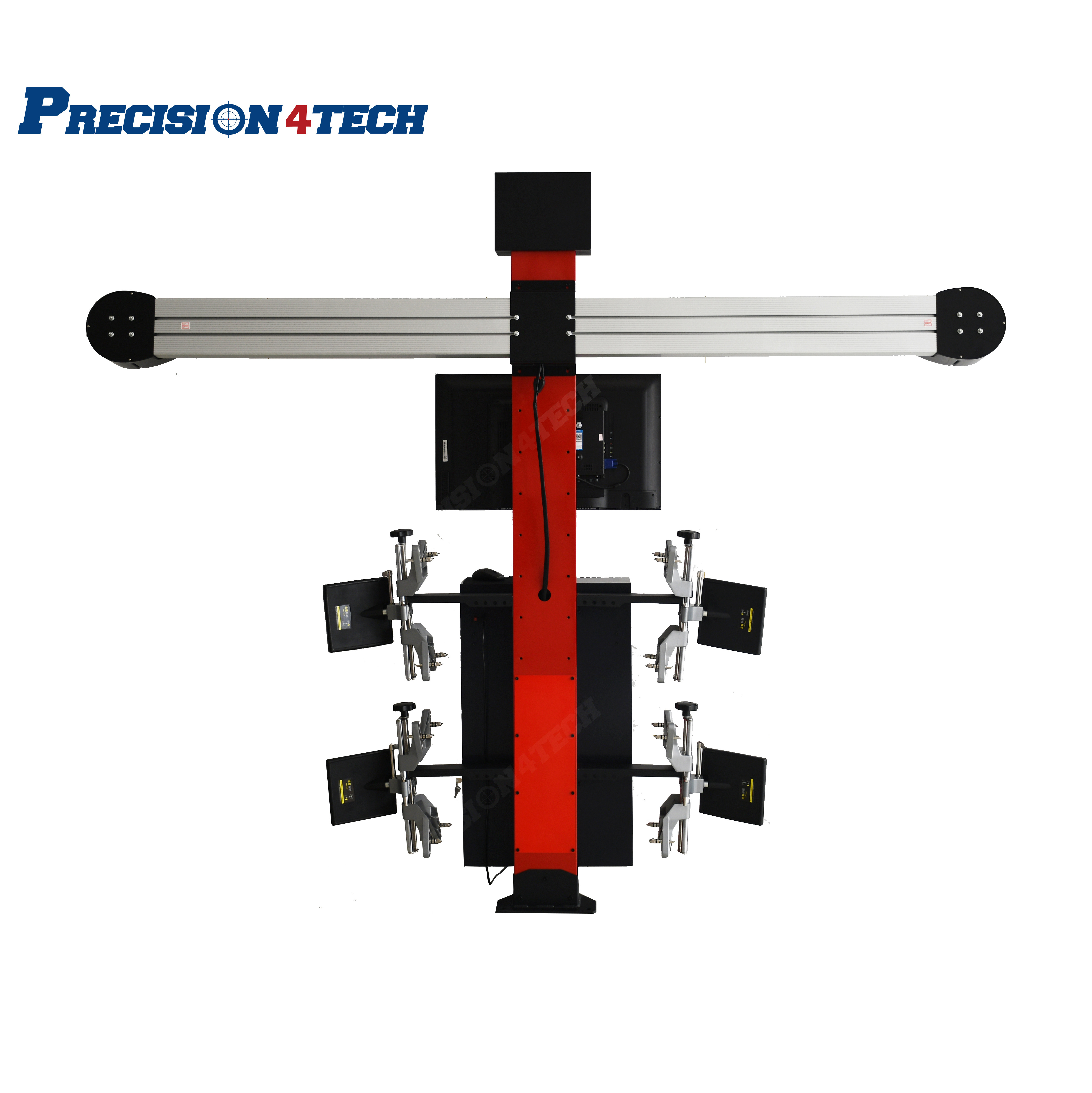

Standard configuration
500 million pixels camera,Waterproof target plates，Lenovo computer, porcelain cabinet, 32 inch LED TV, 4-points clamp, Brake fixer, Steering Wheel fixer, Wedge pads,Steel Turntables, Turntable transition blocks,voltage stabilizer. Printer(optional), Packing:Wooden case.
Basic functions:
Parameters measurement such as Toe-in & Toe-out,Camber, Caster,SAI,Total Toe, Kingpin inclination, Set back, Thrust angle.
E xtensive function
Body Dimension Measurement,Axle distance measurement, Removing Tire Adjustment,
Steering Wheel Adjustment,Engine Bay Adjustment,Toe Curvature Measurement, Lock Toe Adjustment.
Products advantages:
1.32-inch LED TV.
2.Compact installation saves more space.
3.Movable Camera beam:
4.The new slide-type back hanging design Beam height can be adjusted freely in range of 80-120cm or 200-240cm ,suitable to use in variety of platforms.
5.Technical lead: 3D imaging positioning technology, measured with the body as the benchmark, wider field of vision, more accurate data
6.Measure fast: The positioning measurement can be completed in two minutes, and the positioning data can be read
7.Data accuracy : Three -digital imaging positioning technology, accuracy of 0.01 °
8.Effective benefits: fast+precision = high efficiency, you can complete more positioning work every day
9.Easy operation: 3D animation formulation positioning adjustment.
|
Items
|
Accuracy
|
Range
|
|
Total toe
|
±0.01
|
±40°
|
|
Camber
|
±0.01
|
±45°
|
|
Caster
|
±0.02
|
±45°
|
|
SAI
|
±0.02
|
±45°
|
|
Thrust angle
|
±0.01
|
±45°
|
|
Set back
|
±0.01
|
±40°
|
|
Max turn angle
|
±0.02
|
±50°
|
|
Wheel Deviation
|
±2MM
|
1219MM-2538MM
|
|
Axle Deviation
|
±2MM
|
2006MM-4750MM
|
