TS-6040 Luggage Checking X Ray Scanner Machine Security Inspection X-Ray Baggage Scanner

TS-6040 Luggage Checking X Ray Scanner Machine Security Inspection X-Ray Baggage Scanner

FOB Reference Price: Get Latest Price

≥1 Sets

US $5600

≥10 Sets

US $5300

≥50 Sets

US $5200

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Conveyor Speed:: 0.22m/s

Anode Voltage:: 140kv

Conveyor Max Load:: 180kg

Wire Resolution:: 0.0787mm metal line

Film Safety:: Guarantee ASA/ISO1600 Film

Penetration:: 34MM steel

Penetration Resolution:: dia 0.254mm copper wire (AWG32)

Certificate:: CE,FCC,Rohs

Warranty:: 5 years(On site service)

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Saful

Tunnel Size:: 610(W)*410(H)mm (±10mm)

Conveyor Speed:: 0.22m/s

Anode Voltage:: 140kv

Conveyor Max Load:: 180kg

Wire Resolution:: 0.0787mm metal line

Film Safety:: Guarantee ASA/ISO1600 Film

Penetration:: 34MM steel

Penetration Resolution:: dia 0.254mm copper wire (AWG32)

Certificate:: CE,FCC,Rohs

Warranty:: 5 years(On site service)

Products Description

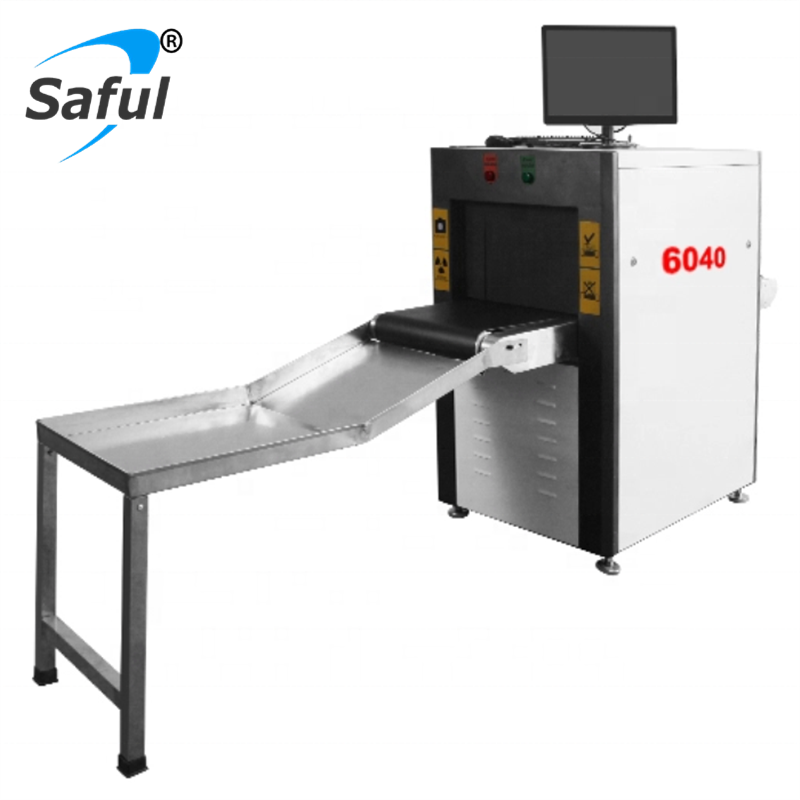

TS-6040 Luggage Checking X Ray Scanner Machine Security Inspection X-Ray Baggage Scanner

X-ray security screening equipment widely used in airports, railway stations, bus stations, government buildings, embassies, convention centers, exhibition centers, hotels, shopping malls, major events, post offices, schools, logistics, industrial inspection and other places.Model characteristics and configuration: All parts imported , clear image, strong penetrating power, long service life, using the latest international standards.

Work Principle

Equipment complete the examination by means of that belt making the baggage into the X-ray inspection lanes. Luggage into the X-ray checkpoint to stop the package detection sensor,the detect signal was sent to the system control part to generate X-ray trigger signal,. After a bunch of X-ray fan-shaped collimator beam passing through the items on the belt, X-rays were absorbed by seized items, finally, Bombarding dual-energy semiconductor detectors installed in the channel. The X-ray into the signal through detector, these weak signals are amplified and sent to the signal processing box for further processing.

X-ray baggage scanner

1.display:19 inch(or bigger size) large industry screen display 2.the detector: bin song,Japan

imported detector 3.single X-ray source: the kernel is the America imported tube 4.the drum: linear Germany

Yintono drum 5.belt: green belt of low noise 6.color: black and white, color, black and white contrast reversal 7.processing system: industrial grade DSP embedded processor 8.operation interface: floating,

soft touch button operation 9.toolbox: one special toolbox 10.button keyboard and mouse: each one

Details Images

Packing& Shipping

Packing List

Each machine packed in a wooden box

Wooden box Size: 1750(L)*822(W)*1250(H)mm Overall weight: 400kgs

Shipping Methods:

By air (5-7 days, most expensive)
By express (3-7 days, more expensive)
By sea (15-28d ays, cheapest)

Our Advantages

Sample	Contact us to palce a sample order to make the quality test. Mixed samples are available.
Customization	Supported OEM and ODM service, included print your logo as your requested .
Shipping	Multi optional shipping service (couriers, air, and sea)
Payment terms	T/T, Western Union, Money Gram, Cash, Escrow, L/C
