- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
baxin
-
Model Number:
-
S0102
-
Product name:
-
chain link fence
-
Package Type:
-
Carton standard packing
-
Size:
-
Customer Size
-
Application:
-
Construction, Automotive,Industrial, electronic
-
Surface treatment:
-
Electric plating,powder coated,sand blasting,lacquer
-
Material:
-
Low Carbon Steel Wire
-
Wire diameter:
-
2mm-4mm
-
Length:
-
3m, 3.6m, 4.3m, etc
-
Height:
-
1.2m, 1.8m, 2.4m, etc
Quick Details
-
Frame Material:
-
Metal
-
Feature:
-
Easily Assembled, ECO FRIENDLY, Rodent Proof, Rot Proof, Waterproof
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
baxin
-
Model Number:
-
S0102
-
Product name:
-
chain link fence
-
Package Type:
-
Carton standard packing
-
Size:
-
Customer Size
-
Application:
-
Construction, Automotive,Industrial, electronic
-
Surface treatment:
-
Electric plating,powder coated,sand blasting,lacquer
-
Material:
-
Low Carbon Steel Wire
-
Wire diameter:
-
2mm-4mm
-
Length:
-
3m, 3.6m, 4.3m, etc
-
Height:
-
1.2m, 1.8m, 2.4m, etc
Product Description

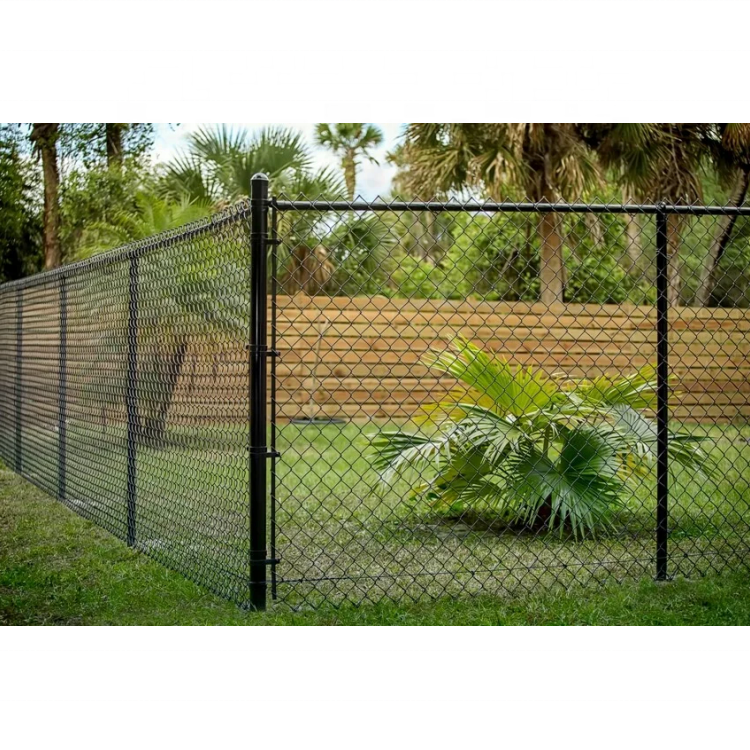

Chain Link Fence
also known as cyclone fence or diamond mesh fence, is a versatile fencing option that is highly regarded for its cost-effectiveness in the current market.This type of fence is constructed using interwoven steel wire, making it suitable for widespread use.To cater to different applications, a wide range of wire gauges and mesh sizes are available. All chain link fence rolls are equipped with line wires and knuckled edges.Additionally, the chain link fence with barbed edges has gained popularity due to its enhanced security features.
Specification
|
Dimension of Galvanized Chain Link Fence
|
|
|
|
|||
|
Mesh
(mm)
|
Wire Diameter
(mm)
|
Width
(m)
|
Length
(m)
|
|||
|
40 x 40
|
1.8 – 3.0
|
0.5 – 4.0
|
5 - 25
|
|||
|
50 x 50
|
1.8 – 3.5
|
0.5 – 4.0
|
5 - 25
|
|||
|
60 x 60
|
1.8 – 4.0
|
0.5 – 4.0
|
5 - 25
|
|||
|
80 x 80
|
2.5 – 4.0
|
0.5 – 4.0
|
5 - 25
|
|||
|
100 x 100
|
2.5 – 4.0
|
0.5 – 4.0
|
5 - 25
|
|||
|
Dimension of PVC coated Chain Link Fence
|
|
|
|
|||
|
Mesh
(mm)
|
Wire Diameter
(mm)
|
Width
(m)
|
Length
(m)
|
|||
|
40 x 40
|
2.8 – 3.8
|
0.5 – 4.0
|
5 - 25
|
|||
|
50 x 50
|
3.0 – 5.0
|
0.5 – 4.0
|
5 - 25
|
|||
|
60 x 60
|
3.0 – 5.0
|
0.5 – 4.0
|
5 - 25
|
|||
|
80 x 80
|
3.0 – 5.0
|
0.5 – 4.0
|
5 - 25
|
|||
|
100 x 100
|
3.0 – 5.0
|
0.5 – 4.0
|
5 - 25
|
|||
|
Frame tube O.D
|
32mm,38mm,42mm,etc
|
|
Cross brace tube O.D
|
25mm,32mm,etc
|
|
Fence Base/stand Size
|
610*590mm,762*460mm,etc
|
|
Material quality
|
galvanized tube,galvanized wire,black wire
|
|
Surface treatment
|
powder coated,hot dipped galvanized,spray painted
|
Main Features
1) Simple structure in linear type ,easy in installation and maintenance.
2) Renewable resource, could be used for several years.
3) All welding slag are cleared to insure fence smooth surface.
4) Whole panel (welded mesh panel and frame tube) will be silver spray painted after welding to protect all welding spots.
5) Customized fence shape or specification is also available.
Product Details
1.Product details
2.A
ttachment
3.Type of material
PVC coated chain link fence
Colors can be customized
galvanized chain link fence
Silver
4.Measurement data
5.Production process
6.Usage
Packing & Delivery
According to customer requirements, provide different packaging.
1. Standard Packing---Bulk. The premise of not punching pallets saves space, packaging costs, and freight.
2. Customized packaging---Pallet. The cost is high, but the loading and unloading are convenient, saving labor costs.
