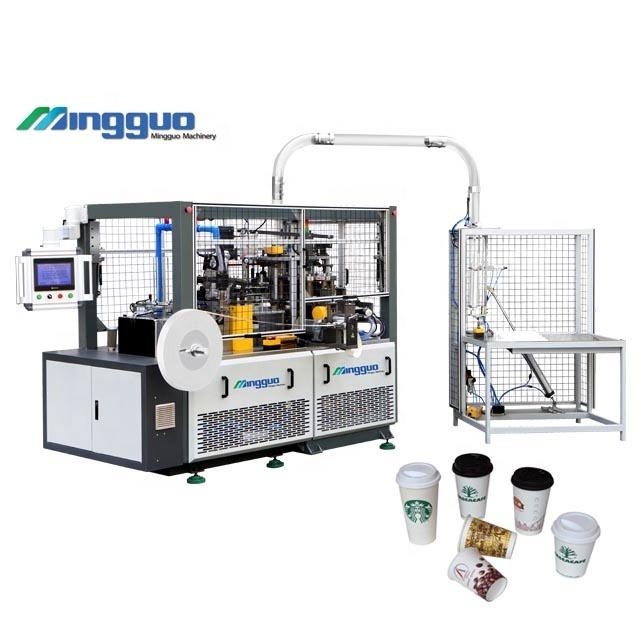

China Ruian Mingguo MG-C800 high speed Tea Paper Cup Making Machine

Product Description

China Ruian Mingguo MG-C800 high speed Tea Paper Cup Making Machine

The MG-C800 type machine is an upgrade product that base on single turnplate paper cup machine. The machine adopts open cam design, interrupted division design, gear drive, longitudinal axis design . So they can reasonably distribute each part function.

The whole machine adopts Spray lubrication , thus reduce the parts abrade,  and it adopts Switzerland leister heater for cup body and bottom paper sealing ;  and silicon oil flow controlled by PLC & electromagnetic valve, in total two course for top curling forming first course rotate top curling ,and second that   heating and forming , thus the cup forming will be more perfectly.

PLC system controls the whole cup forming process. By adopting photoelectric failure-detecting system and servo control feeding, our paper cup machine’s reliable performance is guaranteed, thus offering a rapid and stable operation. The machine can auto-stop working when there is a failure. Thus it can greatly improve operation safety standard and reduce labor force.

Using CCD image detection system (optionally) , it will detected the broken, tainted, and molding defects cups. without manual selection,it can reduce secondary pollution.

MG-C800 intelligent paper cup machine simplifies paper cup forming process This machine can finish paper feeding, gluing, cup-bottom feeding heating, knurling, cup-mouth curling, cup-collecting, etc .It is especially suitable for making paper cups with height of 50-135mm .

CUP SAMPLE

ADVANTEGES INTRODUCED

TECHNICAL SPECIFICATION

Model	MG-C800
Weight	3200 KG
Dimension	2600x1600x1850 MM
Total power	12KW 380V50Hz
Air supply requirement	0.5-0.8MPa , 0.4cube/min
Capacity	90-110 PCS/MIN
Paperspecification	SINGLE /DOUBLE PE COATED PAPER
Paper grams	190-350g/mm
Cup size	4-16OZ

HOT PRODUCT

MAHICNE FEATURES

1.This machine adopts intermittent indexing cam mechanism of open type.

2.Gear transmission and vertical axis structure contribute to a reasonable distribution of various functional components.

3. The whole machine uses automatic spray lubrication system, reducing the wear of machine parts .

4.The body of paper cup and the bottom of cup portion bonded by Swiss (Leister brand) heater, ensuring the stability of adhesion .

5.Two times curling , first one is rotating curling , second one is heating stereotypes , which improves the forming strength of paper cup, cup mouth beauty and paper cup size stability .

6.PLC control is used in cup forming, photoelectric eye is adopted in the entire failure control process.

7.Servo motor paper feeding improves equipment stability, achieves fast steady running, implements automatic fault stop and largely reduces labor cost.

8. The machine adopts simplified process system, combining paper feeding, sealing, bottom paper feeding, up cup, heating, cup bottom rolling,cup bottom knurling, cup top curling, cup discharge, detection, automatic counting, cup collection in one.

9.The most suitable cup height size is from 50 to 135 m

WORKSHOP

Ruian Mingguo Machinery Co., Ltd is specialized in manufacturing automation machinery and equipment of paper containers.We transcend constantly, innovation, pursue excellence and effort to improve ourselves. We have a strong technical force, exquisite workmanship, rich manufacture experience and absorbed the advantages of similar products widely to comparison, analysis, and digestion. Now developed a series of products achieved leading position: high speed intelligent paper cup machine,vertical axis paper cup machine,vertical axis paper bowl machine,paper cup machine,paper bowl machine,KFC paper bucket bowl machine,automatic handle paper cup machine, cup top flatten machine, paper plate machine and paper punching and die cutting machine.

Our company adhered to the “sincere cooperation and create brilliant” for enterprise policy. We will wholeheartedly to providing the best products and the excellent service for customers.

Ruian Mingguo Machinery Co., Ltd warmly welcomes the domestic and foreign customers sincerely cooperate with mutual benefit and create brilliant

CERTIFICAT

EXHIBITION

PACKAGING WITH THE WOODENCASE

FAQ

WHATSAPP:+86 15058318816

China Ruian Mingguo MG-C800 high speed Tea Paper Cup Making Machine

SPEED:90-120PCS/MIN

MACHINE VIDEO LINK

https://youtu.be/vS6SVaj33LQ
