Quick Details
-
Product name:
-

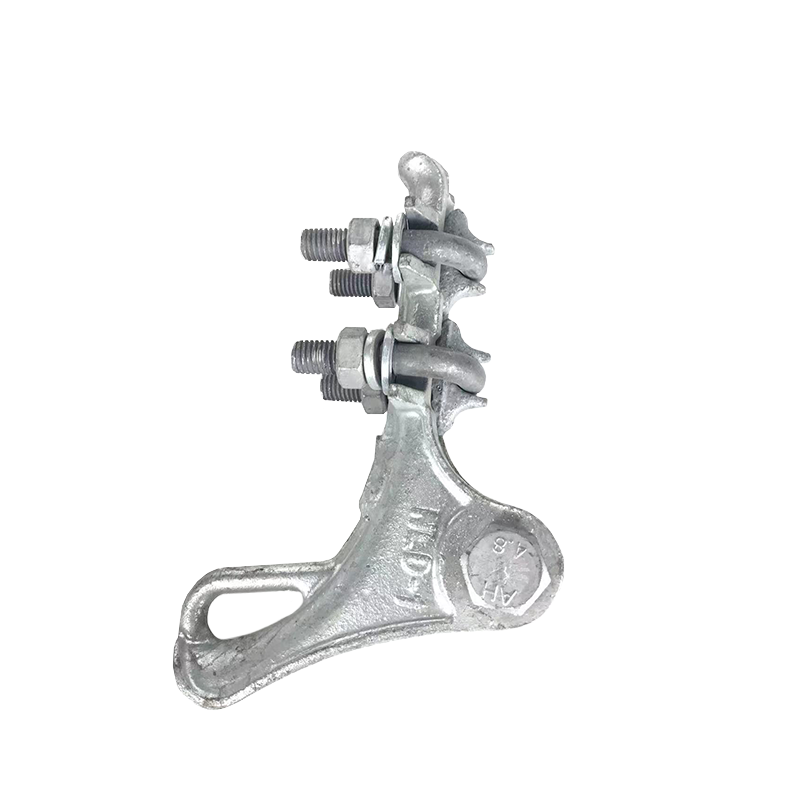

NLD Bolt Type Tension Clamp
-
Brand:
-
GASIM
-
Material of the clamp body and plate:
-
Malleable cast iron
-
Material of the cotter pin:
-
Stainless steel
-
Material of the other parts:
-
Steel, malleable cast iron, hot-dip galvanized steel
-
Product usage:
-
For electricity pole/towers,etc. To fix wires.
-
Sample:
-
Avaliable
-
OEM/ODM:
-
Avaliable
Quick Details
-
Brand Name:
-
GASIM
-
Place of Origin:
-
China
-
Model Number:
-
NLD Bolt Type Tension Clamp
-
Product name:
-
NLD Bolt Type Tension Clamp
-
Brand:
-
GASIM
-
Material of the clamp body and plate:
-
Malleable cast iron
-
Material of the cotter pin:
-
Stainless steel
-
Material of the other parts:
-
Steel, malleable cast iron, hot-dip galvanized steel
-
Product usage:
-
For electricity pole/towers,etc. To fix wires.
-
Sample:
-
Avaliable
-
OEM/ODM:
-
Avaliable
Products Description
|
Specification of NLD Series Tension Clamp
|
|
|
|
|
|
|
||||||
|
Type
|
Conductor Dia(mm)
|
Dimension (mm)
|
|
|
|
Rated Failure Load(KN)
|
||||||
|
|
|
M
|
C
|
L1
|
L2
|
|
||||||
|
NLD-1
|
5.1-10.0
|
16
|
18
|
150
|
120
|
20
|
||||||
|
NLD-2
|
10.1-14.0
|
16
|
18
|
207
|
135
|
40
|
||||||
|
NLD-3
|
14.1-18.0
|
18
|
22
|
310
|
160
|
70
|
||||||
|
NLD-4
|
18.1-23.0
|
18
|
27
|
375
|
200
|
100
|
||||||
