Quick Details
-
Luminous Efficacy(lm/w):
-
0
-
Place of Origin:
-
China
-
Brand Name:
-
OEM
-
Working temperature:
-
-20-60℃
-
0utput voltage:
-
DC12V~24V
-
Output Current:
-
25A*1CH
-
Max. Output power:
-
300W/12V, 600W/24V
-
Frequency of RF remote control:
-
2.4G
-
RF remote range:
-
20m
-
Gross Weight:
-
80G/PC
-
External dimension:
-
L103*W40*H24mm
-
Certificates:
-
CE,RoHS,EMC,LVD
-
Warranty:
-
3 Years
Quick Details
-
Warranty(Year):
-
3-Year
-
Type:
-
Remote Control
-
Max. Load Power:
-
600W
-
Luminous Efficacy(lm/w):
-
0
-
Place of Origin:
-
China
-
Brand Name:
-
OEM
-
Working temperature:
-
-20-60℃
-
0utput voltage:
-
DC12V~24V
-
Output Current:
-
25A*1CH
-
Max. Output power:
-
300W/12V, 600W/24V
-
Frequency of RF remote control:
-
2.4G
-
RF remote range:
-
20m
-
Gross Weight:
-
80G/PC
-
External dimension:
-
L103*W40*H24mm
-
Certificates:
-
CE,RoHS,EMC,LVD
-
Warranty:
-
3 Years
Product Description

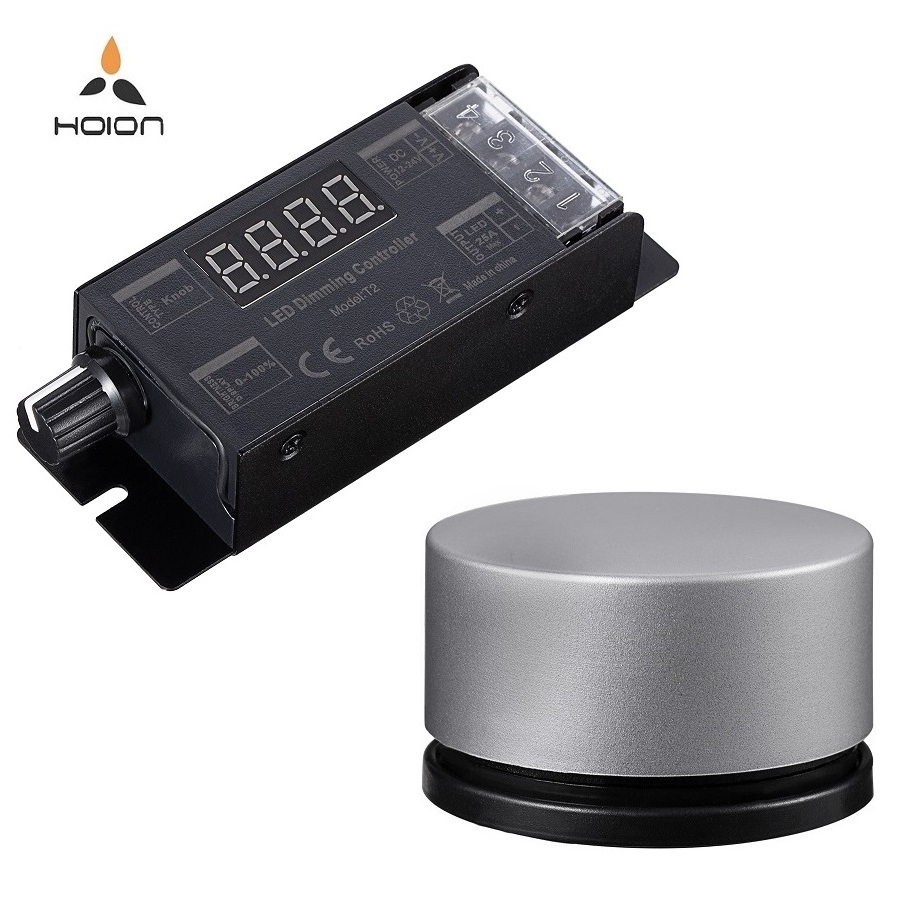

Single color dimmer can achieve stepless and smooth dimming. It adopts both knob control manner and remote control. According to actual needs, users can transfer the light to the appropriate brightness.
Product Feature
1. Max. output up to 25A, 300W/12V, 600W/24V;
2. Digital dim, with display, brightness is viewable.
3. PWM frequency is adjustable by remote controls (6 levels: 500Hz,1KHz, 2KHz,4KHz, 7.8KHz, 15.6KHz). When adjust to high PWM,
there is no noise for power supply and no flicker for led lights. --Many project customers prefer it because for this feature.
Your competitors may don't have this kinds of products,you will have market competitiveness for it.
4. Knob Manual operation, 1-4 Zones remote controls optional with flexible scenes.
5. Wireless-sync control application. Receivers will transmit the control signals from the remote control and self-inspection the
work statues for each other, so multiple receivers in same zone will wireless-sync-work completely.
6. Compatible with our Tuya to RF 2.4G converter -- Tuya-2.4G-DIM to achieve to be controlled by TUYA smart APP.
7. Short circuit protection, 3 years warranty.
8. External Antenna, the antenna can be connect extend wire until out of the metal shell lighting box to get better control signal from RF remote control. Application: advertising light box.
1. Max. output up to 25A, 300W/12V, 600W/24V;
2. Digital dim, with display, brightness is viewable.
3. PWM frequency is adjustable by remote controls (6 levels: 500Hz,1KHz, 2KHz,4KHz, 7.8KHz, 15.6KHz). When adjust to high PWM,
there is no noise for power supply and no flicker for led lights. --Many project customers prefer it because for this feature.
Your competitors may don't have this kinds of products,you will have market competitiveness for it.
4. Knob Manual operation, 1-4 Zones remote controls optional with flexible scenes.
5. Wireless-sync control application. Receivers will transmit the control signals from the remote control and self-inspection the
work statues for each other, so multiple receivers in same zone will wireless-sync-work completely.
6. Compatible with our Tuya to RF 2.4G converter -- Tuya-2.4G-DIM to achieve to be controlled by TUYA smart APP.
7. Short circuit protection, 3 years warranty.
8. External Antenna, the antenna can be connect extend wire until out of the metal shell lighting box to get better control signal from RF remote control. Application: advertising light box.
|
Working temperature
|
-20-60℃
|
Supply voltage
|
DC12-24V
|
|
Output
|
1 channel
|
Static power consumption
|
<1W
|
|
Max. output current
|
25A
|
Max. output power
|
300W/12V; 600W/24V
|
|
Net weight
|
65g
|
External dimension
|
L103*W40*H24 mm
|
|
Gross weight
|
90g
|
Packing size
|
L140*W48*H35mm
|
|
Memory function
|
Yes
|
PWM frequency
|
2KHz (factory default), 500Hz,1KHz, 4KHz, 7.8KHz, 15.6KHz
|
|
Max. output current
|
PWM<=2KHz: 25A
PWM=7.8KHz: 15A PWM=15.6KHz: 10A |
Max. output power
|
PWM<=2KHz:300W/12V; 600W/24V
PWM=7.8KHz:180W/12V; 360W/24V PWM=15.6KH:120W/12V; 240W/24V |
Detailed Images
Input and output with
Transparent protective cover.
External antenna, convenient to extend the antenna outside the metal case when needed.
Adopt the knob control manner, soft dim function, display the brightness.
Connection port instruction
Wireless-synchronization function
Receivers will transmit the control signals from the remote control and self-inspection the work statues for each other, so
multiple receivers in same zone will wireless-sync-work completely.
Receivers will transmit the control signals from the remote control and self-inspection the work statues for each other, so
multiple receivers in same zone will wireless-sync-work completely.
Compatible remote control
Typical Application
Circuit:
