* E-fan make fuel consumption better, 3 speeds auto-selection depend on coolant temperature
* 3 stages air cleaner with 93% efficiency pre-cleaner reduce earlier wearing, high efficiency fuel filter make engine work in good condition
* Cat technology damping mount reduce vibration failure. Four air valves delivers robust power
* Radial seal air filter makes the maintenance easier and with good reliability
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Machine Weight:
-
20000 kg
-
Bucket capacity:
-
3.3-5.5 m³
-
Marketing Type:
-
Hot Product 2021
-
Rated Payload:
-
6000kg
-
Operating Weight with Standard Bucket:
-
20000kg
-
Bucket Capacity:
-
3.3-5.5 m³
-
Breakout Force:
-
183 kN
-
Rear- oscillation:
-
±11°
-
Rated Power:
-
178 kW
-
Rated Speed:
-
2,000 r/min
-
Displacement:
-
9.7 L
-
Hydraulic Cycle Time:
-
9.7s
-
Product name:
-
wheel loader
Quick Details
-
Engine Brand:
-
top brand
-
Power:
-
178 KW
-
Brand Name:
-
Sinomada
-
Place of Origin:
-
Shandong, China
-
Machine Weight:
-
20000 kg
-
Bucket capacity:
-
3.3-5.5 m³
-
Marketing Type:
-
Hot Product 2021
-
Rated Payload:
-
6000kg
-
Operating Weight with Standard Bucket:
-
20000kg
-
Bucket Capacity:
-
3.3-5.5 m³
-
Breakout Force:
-
183 kN
-
Rear- oscillation:
-
±11°
-
Rated Power:
-
178 kW
-
Rated Speed:
-
2,000 r/min
-
Displacement:
-
9.7 L
-
Hydraulic Cycle Time:
-
9.7s
-
Product name:
-
wheel loader
Products Description

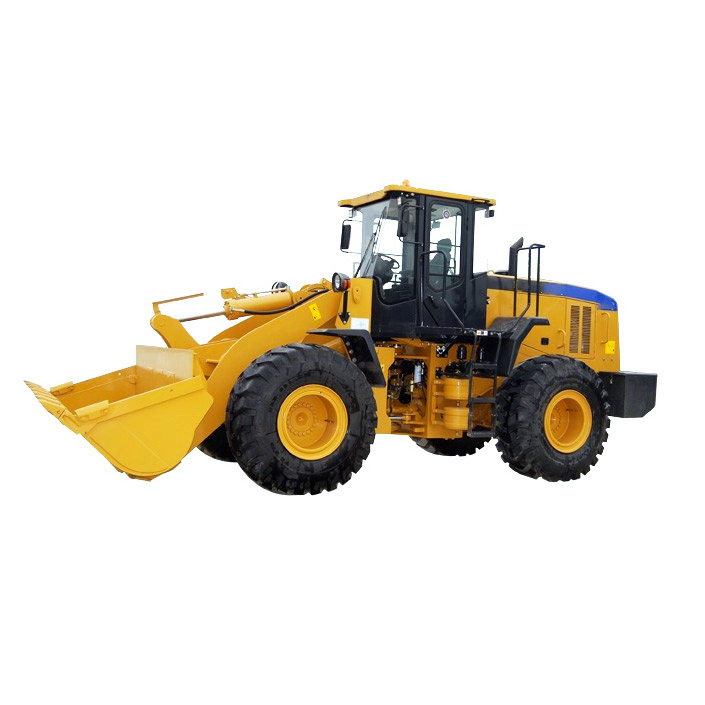

SEM660D 6 Ton Payload Hydraulic Wheel Loader Chinese Wheel Loader Top Loader
Engine
Hydraulic System
* Single load sensing system, high productivity and high fuel efficiency
* Piston pump, lower heat load contribution and provide more rim pull when hydraulic partial working
* Less hydraulic oil capacity required because provide flow depends on demand
* Piston pump, lower heat load contribution and provide more rim pull when hydraulic partial working
* Less hydraulic oil capacity required because provide flow depends on demand
Operator Station
* Mould formed cab with all trims design and more vents with HVAC make operator feel better
* First class premium seat with suspension adjustable, arm rest and safety belt. Up-down, forward and reverse adjustable
* method design damping mount reduce vibration failure
* Slide window, fresh air inlet system make environment better
* First class premium seat with suspension adjustable, arm rest and safety belt. Up-down, forward and reverse adjustable
* method design damping mount reduce vibration failure
* Slide window, fresh air inlet system make environment better
Drivetrain
* Improve transmission oil system efficiency, machine fuel consumption reduced
* marc mount reduce vibration
* Made in house axle well fitted heavy duty application
* Caterpillar design drive shaft and block bearing make machine more reliable
* marc mount reduce vibration
* Made in house axle well fitted heavy duty application
* Caterpillar design drive shaft and block bearing make machine more reliable
Cooling System
* High performance aluminum cooling package suitable for most severity applications
* Oil cooler and radiator parallel design can balance heat load inside and suitable diversity applications
* Damping design reduce vibration failure
* High ambient 50°C cooling package make machine reliability better
* Oil cooler and radiator parallel design can balance heat load inside and suitable diversity applications
* Damping design reduce vibration failure
* High ambient 50°C cooling package make machine reliability better
Solid Structure
* Validated by Cat method FEA (Finite Element Analysis) and OMSA (On Machine Stress Analysis)
* Middle articulation frame less work space needed, reduce tire wearing and fuel consumption
* Large thread design in articulation section improves load capacity
* Middle articulation frame less work space needed, reduce tire wearing and fuel consumption
* Large thread design in articulation section improves load capacity
Serviceability
* Quick pressure test ports on hydraulic (SOS) and brake air lines make diagnose easier
* Large wing hood door make service easier, approach to air cleaner, fuel filters and oil filters
* Large thread design in articulation section make operator easier to approach
* Air tank with pressured air tap provide more convenience for service and maintenance
* Large wing hood door make service easier, approach to air cleaner, fuel filters and oil filters
* Large thread design in articulation section make operator easier to approach
* Air tank with pressured air tap provide more convenience for service and maintenance
Safety
* High decibel beacon and backup alarm make person around easy to attention
* 3 stages alarm system on panel make operator easy to notice
* 3 points touch entering and exit cab make operator more safely
* 3 stages alarm system on panel make operator easy to notice
* 3 points touch entering and exit cab make operator more safely
Machine Applications
* Landscaping, building, sewer/water tie-in, local utility construction Ready mix cement/concrete products, quarry/stone, clay,
recycled aggregate, sand and gravel
* Highway, street, tunnel, airport, residential commercial
recycled aggregate, sand and gravel
* Highway, street, tunnel, airport, residential commercial
Product Paramenters
|
Model
|
SEM660D
|
|
|
Main Specifications
|
|
|
|
Rated Payload
|
6000kg
|
|
|
Operating Weight with Standard Bucket
|
20000kg
|
|
|
Bucket Capacity
|
3.3-5.5 m³
|
|
|
Operating Specifications
|
|
|
|
Breakout Force
|
183 kN
|
|
|
Max. Drawbar Force
|
194 kN
|
|
|
Engine
|
|
|
|
Rated Power
|
178KW
|
|
|
Rated Speed
|
2,000 r/min
|
|
|
Displacement
|
9.7 L
|
|
|
Emission
|
T2 / Stage 2
|
|
|
Implement Hydraulic System
|
|
|
|
Implement System Type
|
Single Load Sensing Flow Sharing System
|
|
|
Hydraulic Cycle Time
|
9.7s
|
|
|
System Pressure Setting
|
18 MPa
|
|
|
Raise
|
5.3 s
|
|
|
Brake System
|
|
|
|
Service Brake
|
Dry & Caliper, Air to Oil Control
|
|
|
Parking Brake
|
Drum type shoe brake,spring applied & oil released
|
|
|
Service Refill Capacity
|
|
|
|
Fuel Tank
|
252L
|
|
|
Engine Lubricating Oil
|
21L
|
|
|
Hydraulic System
|
165L
|
|
|
Transmission Oil
|
53L
|
|
