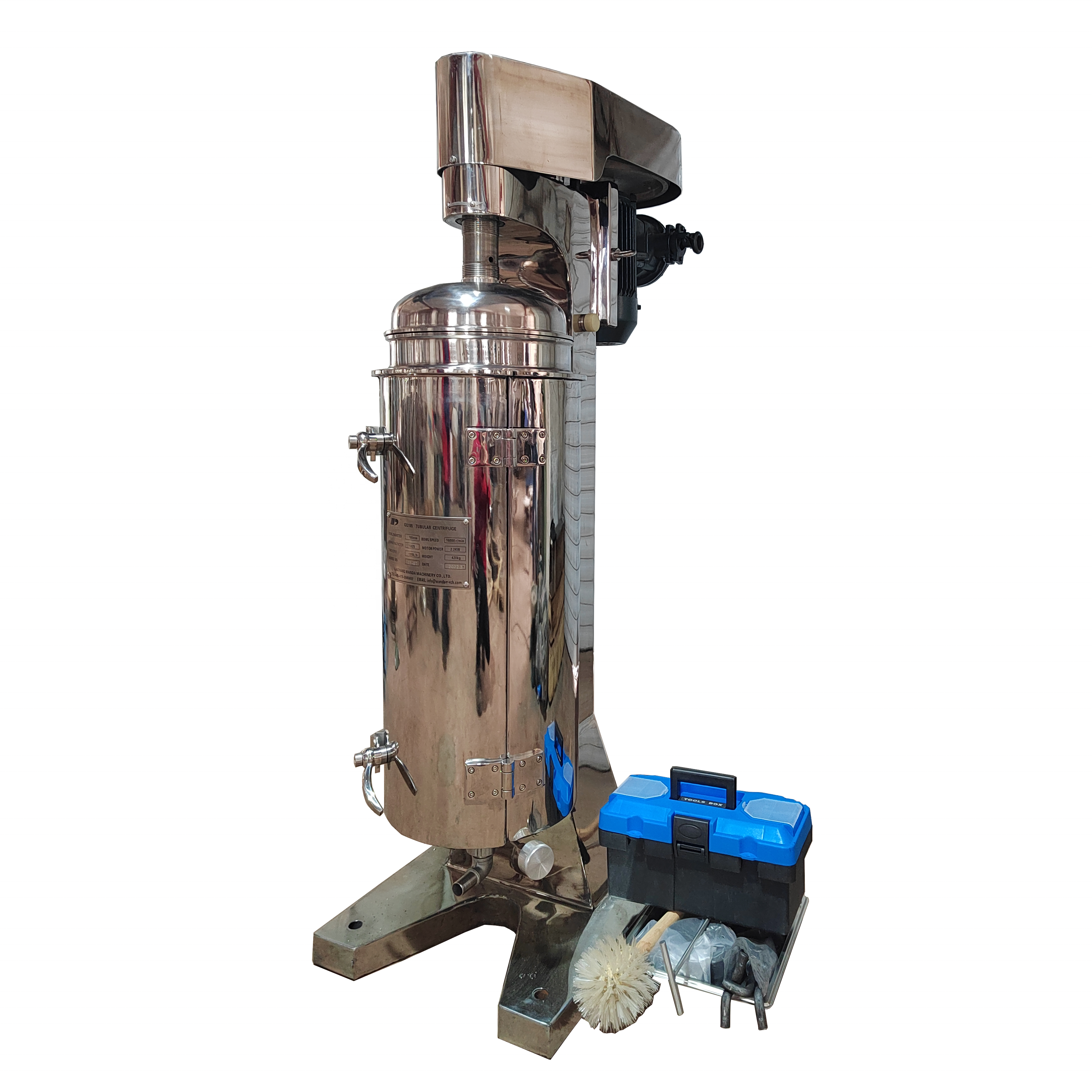

Tubular Separator GQ105 Tube Centrifuge Machine for Chlorella Microalgae

Tubular Separator GQ105 Tube Centrifuge Machine for Chlorella Microalgae

FOB Reference Price: Get Latest Price

≥1 Pieces

US $5500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: Pls see parameter for detail

Weight:: 400

Dimension(L*W*H):: Pls see parameter for detail

Application:: Chlorella Microalgae

Name:: Centrifuge Separator

Keyword:: Tubular Centrifuge Machine

Machine type:: Centrifugal Liquid-Solid Separator

Description:: 2 Phases Separation Machine

Function:: Chlorella Microalgae Dewatering

Material:: Stainless Steel

Item:: Industrial Separator Centrifuge Machine

Product name:: Tubular Bowl Centrifuge

Centrifugal type:: Tubular

Quick Details

Place of Origin:: Liaoning, China

Brand Name:: WINTECH

Voltage:: Customize as your country standard

Power:: Pls see parameter for detail

Weight:: 400

Dimension(L*W*H):: Pls see parameter for detail

Application:: Chlorella Microalgae

Name:: Centrifuge Separator

Keyword:: Tubular Centrifuge Machine

Machine type:: Centrifugal Liquid-Solid Separator

Description:: 2 Phases Separation Machine

Function:: Chlorella Microalgae Dewatering

Material:: Stainless Steel

Item:: Industrial Separator Centrifuge Machine

Product name:: Tubular Bowl Centrifuge

Centrifugal type:: Tubular

Product Overview

Tubular Separator GQ105 Tube Centrifuge Machine for Chlorella Microalgae

Tubular centrifuges have GF, GQ two series, the typical such as GQ series clarify type Tubular centrifuges, GF series liquid and liquid separation type Tubular centrifuges.

It is high speed separator. It has better separation. Strong in separation, simple in structure, convenient in operation and maintenance, low in consuming power, small in ground, high in speed, strong in separation factor, small in noise, adaptive in material with high or low temperature.

FEATURES AT A GLANCE

GQ Type

Swing Type

GF Type

GQ - Liquid - Solid Separation type
GF - Liquid -Liquid - Solid Separation type

HIGH SPEED

COMPACT DIMENSIONS

SAFETY FRAME

SIMPLE CONTROL

EASY MAINTENANCE

VERSATILITY

Working Principle

The separator is consisted of main body, driving device, bowl,collecting pan and liquid-in bearing seats. The upper of the bowl is flexible mainshaft and the lower of it is damp floating. The mainshaft is connected with a driven wheel by the coupling seat with the buffer. The power is transmitted to the driven wheel by the motor through the transmission belt and the tensioner to make the bowl rotate around its axis at an overspeed and form a strong centrifugal force field. The product sprays into the liquid inlet from the bottom and liquid is forced to flow upward along the inner wall of the bowl and then is separated into different layers according to different density.

Product Parameters

Model	GF/Q45	GF/Q75	GF/Q105	GQY125	GQ150
Bowl diameter	45 mm	75 mm	105 mm	125 mm	142mm
Effective height in bowl	280 mm	430 mm	730 mm	735 mm	700 mm
Settling volume in bowl	0.45 L	2 L	5.5 L	7.4 L	10 L
Bowl speed	0-28000 r/min	20000 r/min	16000 r/min	15000 r/min	14000 r/min
Max separation factors	0-19800	20000	15025	15500	15570
Nozzle diameter	2.3 mm	2.3.5 mm	4.6.8.10 mm	6.8.10 mm	8.10.12 mm
Inlet pressure	>0.05 Mpa	>0.05 Mpa	>0.05 Mpa	>0.05 Mpa	>0.05 Mpa
Throughput	≈100 kg/h	≈500 kg/h	≈1200 kg/h	≈2000 kg/h	≈3000 kg/h
Motor type	Series motor	Y90S-2	Y90S-2	Y90L-2	Y100L-2
Motor power	0.6 kw	1.5kw	2.2 kw	3.0 kw	3.0 kw
Motor speed	0-4500 r/min	2840 r/min	2880 r/min	2880 r/min	2880 r/min
Size	580650750 mm	8004001200 mm	8007001400 mm	8505001600 mm	8007001600 mm
Weight	120Kg	300Kg	400Kg	610Kg	520Kg

Application Field

GQ Type is used for separating various suspension liquid, which is difficult to be separated, especially the separation of solid-liquid suspension, which is low concentration, high viscidity, fine solid phase granule, and very small difference in solid-liquid gravity, such as clarification of various liquid. Extract of paint, dye, as well as various protein, algae, pectin, and purification of rubber solution, etc.

GF Type is used for separating various emulsion, especially adaptable for liquid-liquid separation with slight gravity difference and liquid-liquid-solid separation with a little foreign matter, such as separation of various oil and micro-powder, extract liquid from plants, separation of plasma and red blood cell.

Product More Pictures

Tubular Centrifuge Detail Photos

Below photos shows the detail parts of our tubular centrifuge, including bowl, bearing, belt parts and so on, to bring you a better understanding of our machine.
