Quick Details
-
Core Components:
-
3-axis dispensing robot, Dispensing system, Dispensing controller, Teaching pendant, 1.5 gallons material pressure tank
-
Work area:
-
380*380*100mm
-
Max payload:
-
7kg/5kg
-
Max travel speed:
-
500mm/sec(XY)/100mm/sec(Z)
-
Transfer method:
-
Stepper motor, belt, precision rail
-
XYZ position accuracy:
-
±0.008mm
-
Resolution:
-
0.01
-
Memory storage:
-
999 program setup (each program store up to 65535 spots)
-
Operating method:
-
LCD, Teach pendant
-
Motor:
-
Precision stepper motor
-
Movement patterns:
-
3 axis spot to spot, continue line, arc
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SECOND
-
Weight (KG):
-
48
-
Core Components:
-
3-axis dispensing robot, Dispensing system, Dispensing controller, Teaching pendant, 1.5 gallons material pressure tank
-
Work area:
-
380*380*100mm
-
Max payload:
-
7kg/5kg
-
Max travel speed:
-
500mm/sec(XY)/100mm/sec(Z)
-
Transfer method:
-
Stepper motor, belt, precision rail
-
XYZ position accuracy:
-
±0.008mm
-
Resolution:
-
0.01
-
Memory storage:
-
999 program setup (each program store up to 65535 spots)
-
Operating method:
-
LCD, Teach pendant
-
Motor:
-
Precision stepper motor
-
Movement patterns:
-
3 axis spot to spot, continue line, arc

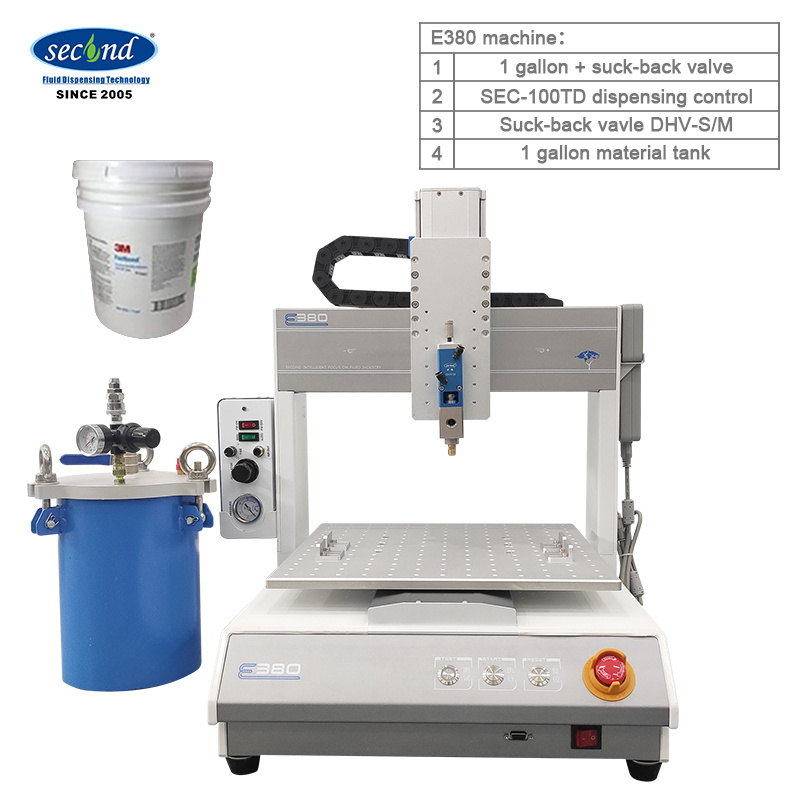

1.5 gallon automatic epoxy resin dispensing machine fluid dispense smt glue dispenser
|
Model
|
|
SEC-E380
|
|
|
|||
|
Working range
|
|
380(X)*380*(Y)*100(Z)mm
|
|
|
|||
|
Max payload
|
|
7kg/5kg
|
|
|
|||
|
Max travel speed
|
|
500mm/sec(XY)/100mm/sec(Z)
|
|
|
|||
|
Transfer method
|
|
Stepper motor, belt, precision rail
|
|
|
|||
|
XYZ position accuracy
|
|
±0.008mm
|
|
|
|||
|
Resolution
|
|
0.01
|
|
|
|||
|
Memory storage
|
|
999 program setup (each program store up to 65535 spots)
|
|
|
|||
|
Operating method
|
|
LCD, Teach pendant
|
|
|
|||
|
Motor
|
|
Precision stepper motor
|
|
|
|||
|
Movement patterns
|
|
3 axis spot to spot, continue line, arc
|
|
|
|||
|
I/O
|
|
1 input, 4 output (support expansion)
|
|
|
|||
|
Power supply
|
|
AC220V 50/60Hz 0.5kw
|
|
|
|||
|
Working environment
|
|
Temperature 0-40℃, Humidity 20-90%
|
|
|
|||
|
Machine dimension
|
|
520*583*645mm
|
|
|
|||
|
weight
|
|
48kg
|
|
|
|||
Features :
This new machine’s main body is made out of one-piece aluminum casting molding, strong structure, stable and user friendly operation.
It provides 380x380x100mm maximum XYZ strokes for extra dispensing needs.
The machine is designed to adapt different type of dispensing applicators for different fluid or glue. Once your bought the Cartesian CNC machine, you just need to choose different applicators. It is really One for All. According to our research, with the seven different applicators, you are covering about 80% of the desktop dispensing needs.
The multi purposes clamping system allow to match with different material filling devices, and valves, and allow quick changeover. It achieves the dispensing of different products of different processes.
This is really a good machine from a reliable factory, with over 15 years focus business on the fluid and glue dispensing, potting industry.
Dispensing and potting are the precise manipulating between air, fluid, or adhesive, don’t waste your money on the cheap and non professional suppliers, you will end up buying many spare parts, and a new machine again.
Applications:
The machine can be used to dispense various type of fluid, adhesive materials for fixing or protecting PCB electronic parts. It can also be used for bonding of mobile phone and notebook cases, LCD glass, LED dispensing, Semiconductor sealing, optical lens dispensing, and packaging, automotive parts, hardware parts, and others.
Special Function : File inserting
Powerful system compatibility with the Logoshop software allow to import mainstream design software, such as Auto CAD, Coral Draw, etc.to generate a different file formats ( NC, .AI,.DXF,.JPG, BMP, scanner, etc.)
Second
Intelligent Equipment was found in
2005
. The factory is able to provide total solution for industrial adhesive glue dispensing, and potting automated machines, e.g. desktop, stand-alone, inline, and robot dispensers.
Second Intelligent is support by strong engineering teams (software, hardware) since the beginning of the company’s establishment, for we believe and value technology development. From production line personnel to the management teams, above 80% of the staffs are engineering studied, and certified profession. Some are doctorate studied in engineering or robotics related qualifications.
Its services start from research to development, production, after-sale commissioning, training, and supports. The company equips with its own software, hardware,
CNC
, and machinery departments, so to provide reliable long term one-stop direct design and manufacturing supports. With adhesive chemical materials, good keeping and maintaining are very important for long term success.
We are the
SECOND
, because we believe customer is the
FIRST.
* Two component machines’ production floor.
*
EMS, SMT solution machines’ production floor.
* Automated desktop machines’ production floor.
* PACKAGING
The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.
If container is too tighter, we will use PE film for packing or pack it according to customers special request.
Q: Are you trading company or manufacturer ?
A:
We are direct manufacturer.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q: What is your terms of packing?
A:
Generally, we pack our goods with proper wooden box. However, if client has special requirement, we can customize.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q: What is your terms of payment?
A:
Depends on terms and conditions, negotiable.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q: What is your terms of delivery?
A:
EXW, FOB, CIF…
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q: How about your delivery time?
A:
Generally, 2-3 weeks after received deposit…
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q: Can you produce according to the samples testing?
A:
Yes, we can produce according to the tested result. We can also produce base on your design.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q: What is your sample policy?
A:
When inquiry through Alibaba, we provide free sampling and test report. After tested, we can send back the sample for approval.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q: Do you test all your goods before delivery?
A:
Yes, we will test 100% before delivery.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q: How do you make our business long-term and good relationship?
A1:
We keep good quality and competitive price to ensure our customers benefit ;
A2:
We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
