Quick Details
-
Engine:
-
Cummins 6BT5.9-C130, 97KW
-
Max. Grab height:
-
7300mm
-
Max. Grab radius:
-
5000mm
-
Swing angle of boom:
-
360 degrees
-
Slope:
-
25%
-
Max. Walking speed:
-
30km/h
-
Transmission type:
-
Eaton motor and pump
-
Drive type:
-
four-wheel drive
Quick Details
-
Place of Origin:
-
Shandong, China
-
Total machine weight:
-
9800kg
-
Max. Grab capacity:
-
1000kg
-
Engine:
-
Cummins 6BT5.9-C130, 97KW
-
Max. Grab height:
-
7300mm
-
Max. Grab radius:
-
5000mm
-
Swing angle of boom:
-
360 degrees
-
Slope:
-
25%
-
Max. Walking speed:
-
30km/h
-
Transmission type:
-
Eaton motor and pump
-
Drive type:
-
four-wheel drive

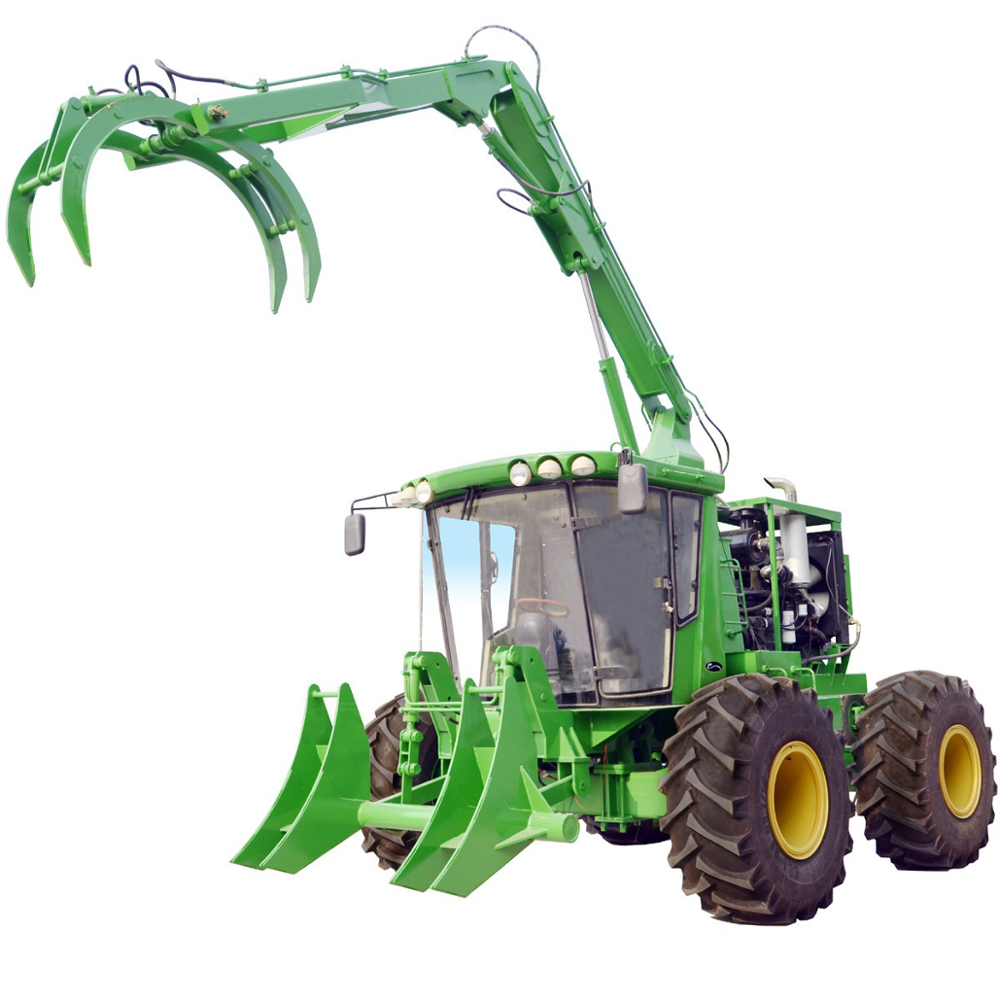

HR9800 360 degree rotate sugarcane loader
Features :
1.Moving arm can rotate 360° and could heap while walking, which flexible and efficient.
2.Adopt Cummins engine, which is powerful and low fuel-consumpted.
3.Adopt Eaton transmission system.
Specification:
|
Total machine weight |
9800kg |
|
Max. Grab capacity |
1000kg |
|
Engine |
Cummins 180HP |
|
Max. Grab height |
7300mm |
|
Max. Grab radius |
5000mm |
|
Swing angle of boom |
360° |
|
Slope |
25% |
|
Max. Walking speed |
30km/h |
|
Walking pump flux |
63ml/r |
|
Working pump flux |
63ml/r |
|
Overall dimension |
7500*3600*4000mm |
|
Transmission type |
Eaton motor and pump |
|
Wheel base |
3100mm |
|
Tread |
2500mm |
|
Drive type |
4WD |
|
Tire |
23.1-26(front); 405/70-24(Rear) |
