Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
JUNYI
-
Model Number:
-
YB series
-
Place of Origin:
-
Henan, China
-
Horsepower:
-
standard
-
Outlet Size:
-
Customized
-
Power:
-
60W
-
motor:
-
standard
-
Product name:
-
High Pressure Pump
-
Material:
-
Steel
-
Keywords:
-
Industrial Water Pump
-
Feature:
-
Energy Saving
-
Flow rate:
-
10M3/H----80M3/H
-
Model:
-
YB series
-
Highest pressure:
-
3MPA or 4MPA or 5MPA
-
Advantage:
-
Simple strucutre/low noise/ stable operation
-
Stroke distance:
-
200mm
Quick Details
-
Application:
-
Biofuel Industry, Developing World Water Solutions, Drinking water treatment, Food and Beverage Industry, Industrial Utilities, Irrigation and Agriculture, Marine, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry, Washing and Cleaning, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
High Pressure
-
Voltage:
-
380V or as required
-
Warranty:
-
1 year
-
Brand Name:
-
JUNYI
-
Model Number:
-
YB series
-
Place of Origin:
-
Henan, China
-
Horsepower:
-
standard
-
Outlet Size:
-
Customized
-
Power:
-
60W
-
motor:
-
standard
-
Product name:
-
High Pressure Pump
-
Material:
-
Steel
-
Keywords:
-
Industrial Water Pump
-
Feature:
-
Energy Saving
-
Flow rate:
-
10M3/H----80M3/H
-
Model:
-
YB series
-
Highest pressure:
-
3MPA or 4MPA or 5MPA
-
Advantage:
-
Simple strucutre/low noise/ stable operation
-
Stroke distance:
-
200mm
Product Description

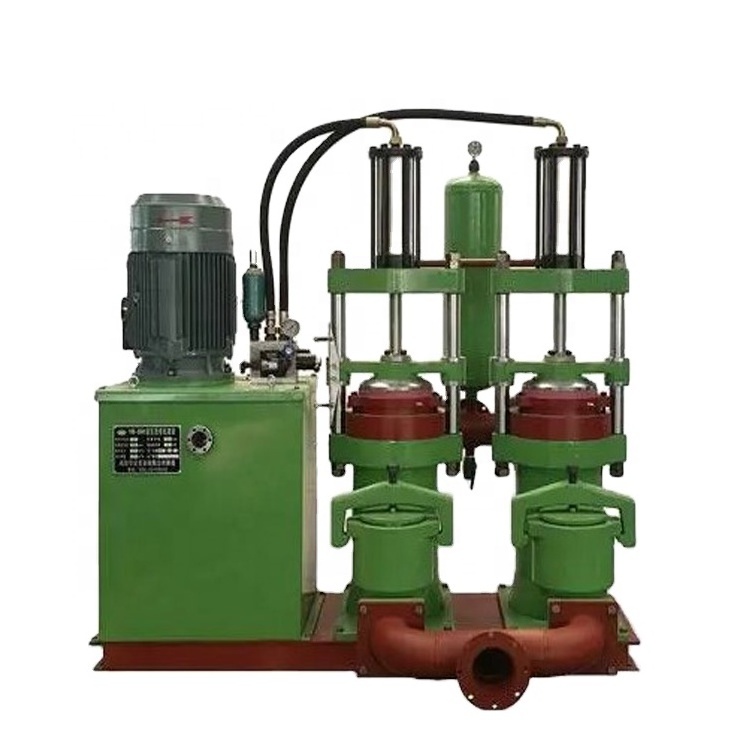

Ceramic Plunger Slurry Pump
The
Ceramic Plunger Slurry Pump
is mainly used in the industry of
porcelain mud,bentonite,kaolin,bauxite
and other industries for high pressure feeding the slurry into the
Filter Press
and transporting the material with large change in the flow rate.
Production Information
There are different models for your choice according to your flow.
|
Model
|
YB-85
|
|
Pressure range
|
0--2.5MPA
|
|
Rated flow
|
3M3/H
|
|
Effective travel distance
|
220mm
|
|
Power of motor
|
2.2KW
|
|
Dimension
|
1775*1000*1500mm
|
|
Inlet/outlet size
|
57mm
|
|
Model
|
YB-140
|
|
Pressure range
|
0--2.5MPA
|
|
Rated flow
|
11M3/H
|
|
Effective travel distance
|
220mm
|
|
Power of motor
|
5.5KW
|
|
Dimension
|
1590*1220*1900mm
|
|
Inlet/outlet size
|
89mm / 76mm
|
|
Model
|
YB-200
|
|
Pressure range
|
0--2.5MPA
|
|
Rated flow
|
19M3/H
|
|
Effective travel distance
|
220mm
|
|
Power of motor
|
7.5KW
|
|
Dimension
|
1715*1390*2100mm
|
|
Inlet/outlet size
|
108mm/ 89mm
|
|
Model
|
YB-250
|
|
Pressure range
|
0--2.5MPA
|
|
Rated flow
|
30M3/H
|
|
Effective travel distance
|
220mm
|
|
Power of motor
|
15KW
|
|
Dimension
|
1840*1640*2250mm
|
|
Inlet/outlet size
|
219mm/ 219mm
|
Above are some common used standard model for your reference only. For the bigger flow, please
Contact Us
for more details!
Detailed Images
Hydraulic Drive
* Double cylinder for double running.
* Large flow
* Long delivery distance
* Low electricity consumption
* Large flow
* Long delivery distance
* Low electricity consumption
* Long time working continuously
* Pressure adjustable
* Small pressure fluctuation
Advantages
Certificate
Related Products
Company Introduction
Shanghai Junyi Filter Plant Co., Ltd
is a high-tech large and medium-sized enterprise in the filtration equipment. We have the independent research and development department, production department and sales department. Our
main products are the
Press Filter / Stainless Steel Filter Housing / Filter Plate / Filter Cloth/ Filter Cartridge /Filter Bag/ Related Feeding Pump
.
These equipments are widely used for the solid-liquid separation process in the industrial of mineral processing, petroleum, chemical industry, dyestuff, metallurgy, medicine, food, coal and carbon, inorganic salts, alcohol, light industry, textiles, environmental protection, energy and so on.
Welcome to visit us for More Cooperation Opportunity!!!
