Quick Details
-
Voltage:
-
380V 50HZ
-
Disc Dia.:
-
6.9m length, 4m wide, 2.65m height
-
No Load Speed:
-
0.25m/s
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shinely
-
Model Number:
-
KB-5000
-
Warranty:
-
1 year
-
Certification:
-
CE
Quick Details
-
Power:
-
15KW
-
External Size:
-
7000 * 5560 * 3400 mm
-
Internal Size:
-
6900* 4000 * 2650 mm
-
Voltage:
-
380V 50HZ
-
Disc Dia.:
-
6.9m length, 4m wide, 2.65m height
-
No Load Speed:
-
0.25m/s
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shinely
-
Model Number:
-
KB-5000
-
Warranty:
-
1 year
-
Certification:
-
CE
Advantages & services

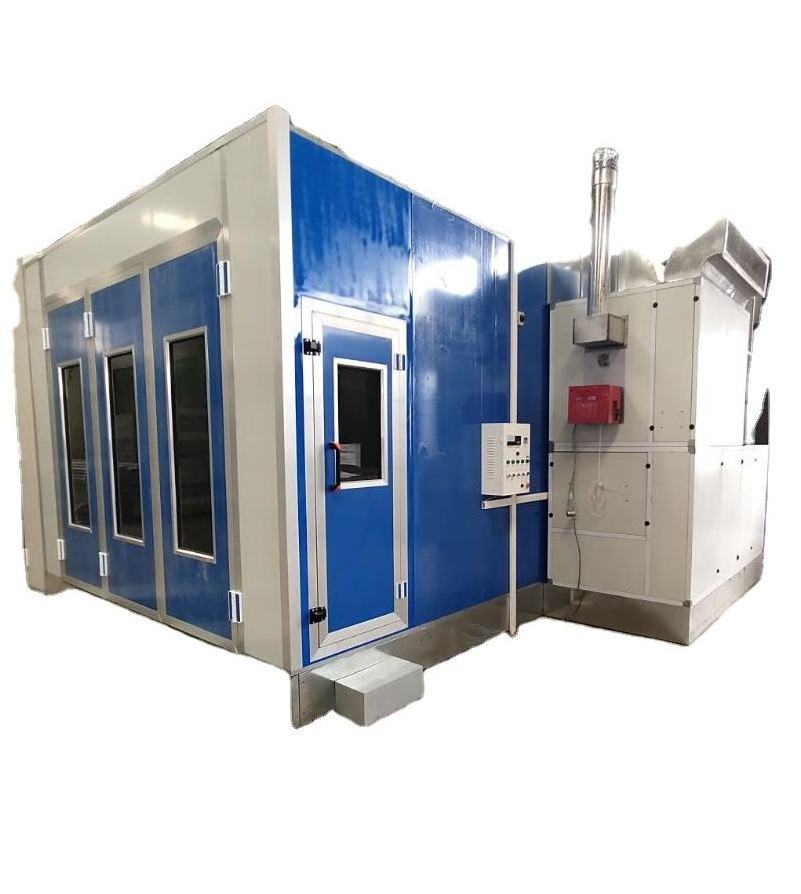

Products Description
Specification
Inside Dimension: 6900* 4000 * 2650 mm (L * W * H).
Outside Dimension: 7000 * 5560 * 3400 mm (L * W * H).
Main Door: Aluminum alloy binding framework(thickness:1.8mm), folding door size: 3000 * 2600 mm (W * H) color consistent with the wall
Personal Door: One fan 600*1800mm, 50 mm thick, EPS wallboard production, aluminum alloy binding, with two pressure lock.
Wall Panel: 50 mm EPS (polystyrene) mouth insulation board, double sides 0.326mm colorful steel plate, galvanized roof.
Roof: Galvanized steel panel.
Basement: Complete steel assemble 300 mm thick, basement beam 100*50mm, two decorative pattern plate 3.0mm, three grille, two car step 600*2000 mm (W * L).
Lighting System: Lamp boxes are 45° fixed on upper two side: With 8groups*4pcs=32pcs*18 W LED, side light 8groups*2pcs=16pcs*18 W LED, illuminate≧800 Lux.
Fan cabin: fan cabin size 2700*1300*3400mm, coated steel. Air duct made of galvanized plate(Thickness is 0.6mm), 3 pcs straight duct, 1 pcs elbow.
Intake Fan: 2 *4 KW double inlet air centrifugal fan, air volume of 24000 m3/hour.
Exhaust Fan: Use Siemens technology YDW series of centrifugal fan, the fan has a low noise, air volume, energy consumption and other advantages; flow: 15000m3/h; power: 5.5kw.
Heating system: Riello G20 diesel burner, 180000Kcal, Stainless steel heat exchanger, highest temperature 80 degrees Celsius, 10N electrical damper spraying to baking circulation.
Filtration system: Primary filter, 560G ceiling filter, floor filter;
Control system: lighting switch, spray paint, drying temperature and time setting, emergency stop, limit the warm, failure alarm.
Voltage Frequency: 380V 50HZ 3 phase
Total Power: 15KW
|
item
|
value
|
|
Type
|
Spray Booths
|
|
Power
|
15KW
|
|
External Size
|
7000 * 5560 * 3400 mm
|
|
Internal Size
|
6900* 4000 * 2650 mm
|
|
Voltage
|
380V 50HZ
|
|
Place of Origin
|
China
|
|
Brand Name
|
Shinely
|
|
Model Number
|
KB-5000
|
