Quick Details
-
Brand Name:
-
-
-
Model Number:
-
S6730-H48X6C
-
Place of Origin:
-
Guangdong, China
-
Device Type:
-
Switch
-
Product Name:
-
Convergence switch/Core switch
-
Forwarding performance:
-
1620 Mpps
-
Maximum power consumption:
-
291 W
-
Warranty:
-
1 Year / 12 Months
-
Chassis height(U):
-
1U
-
Dimensions (W x D x H):
-
442mm*420mm*43.6mm
-
PoE Ports:
-
No
Quick Details
-
Transmission Rate:
-
10/40/100 Gbps
-
Communication Mode:
-
Full-Duplex
-
Switch Capacity:
-
2.16Tbps/2.4Tbps
-
Brand Name:
-
-
-
Model Number:
-
S6730-H48X6C
-
Place of Origin:
-
Guangdong, China
-
Device Type:
-
Switch
-
Product Name:
-
Convergence switch/Core switch
-
Forwarding performance:
-
1620 Mpps
-
Maximum power consumption:
-
291 W
-
Warranty:
-
1 Year / 12 Months
-
Chassis height(U):
-
1U
-
Dimensions (W x D x H):
-
442mm*420mm*43.6mm
-
PoE Ports:
-
No
Product Description
|

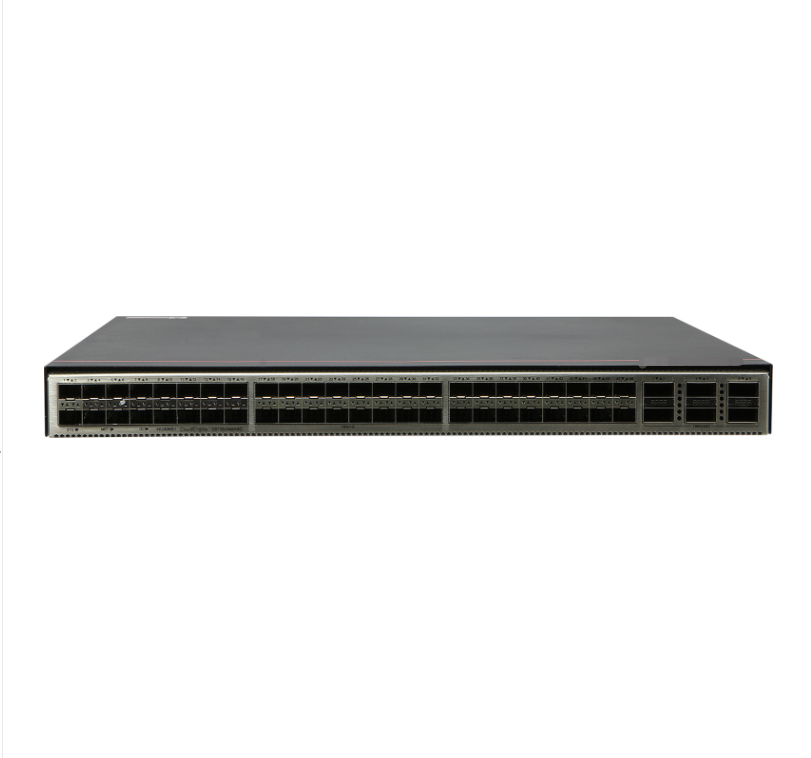

S6730-H48X6C
|
|
⚫ 48*10GE SFP+ ports, 6*40GE QSFP28 ports, optional license for upgrade to 6*100GE QSFP28, without power module
⚫ Dual pluggable power modules, 1+1 power backup
⚫ Switching capacity: 2.16Tbps/2.4Tbps |
|
* Features and Highlights
|
|
1、Abundant Convergence
2、Providing Granular Network Management 3、Flexible Ethernet Networking 4、Intelligent Stack (iStack) 5、Cloud-based Management
6、Cloud-based Management
7、VXLAN Features
8、Intelligent O&M
9、Intelligent Upgrade 10、Big Data-Powered Collaborative Security 11、Open Programmability System(OPS) |
|
Item
|
S6730-H48X6C
|
|
Fixed ports
|
48 x 10 Gig SFP+, 6 x 40/100 Gig QSFP28
|
|
Dimensions (H x W x D)
|
43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
|
|
Chassis height(U)
|
1U
|
|
Rated voltage range
|
⚫ AC input: 100 V AC to 240 V AC, 50/60 Hz
⚫ High-Voltage DC input: 240 V DC ⚫ DC input: -48 V DC to -60 V DC |
|
Maximum voltage range
|
⚫ AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
⚫ High-Voltage DC input: 190 V DC to 290 V DC ⚫ DC input: -38.4 V DC to -72 V DC |
|
Maximum input current
|
⚫ AC 600W ：8A
⚫ DC 1000W ：30A |
|
Typical power consumption
(30% of traffic load, tested according to ATIS standard) |
165 W
|
|
Maximum power consumption
(100% throughput, full speed of fans) |
291 W
|
|
Operating temperature
|
-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F).
|
|
Power supply surge
protection |
⚫ Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
⚫ Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode |
|
Power supply type
|
⚫ 600 W AC Power Module
⚫ 1000 W DC Power Module NOTE The S6730-H can use a single power module or double power modules for 1+1 power redundancy. Pluggable AC and DC power modules can be used together in the same switch. |
|
Relative humidity
|
5% to 95%, noncondensing
|
|
Fans
|
4, Fan modules are pluggable
|
|
Heat dissipation
|
Heat dissipation with fan, intelligent fan speed adjustment
|
Product Paramenters
|
Feature
|
S6730-H48X6C
|
|
MAC
|
Up to 384K MAC address entries
IEEE 802.1d standards compliance MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses |
|
VLAN
|
4K VLANs
Guest VLANs and voice VLANs GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping |
|
ARP
|
Static ARP
Dynamic ARP |
|
IP routing
|
Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS- IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy
Up to 256K FIBv4 entries Up to 80K FIBv6 entries |
|
Wireless service
|
AP access control, AP domain management, and AP configuration template management
Radio management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, tag/terminal location, and spectrum analysis |
|
MPLS
|
MPLS L3VPN
MPLS L2VPN (VPWS/VPLS) MPLS-TE MPLS QoS |
|
IPv6 features
|
Neighbor Discover (ND)
PMTU IPv6 Ping, IPv6 Tracert, IPv6 Telnet ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types Multicast Listener Discovery snooping (MLDv1/v2) IPv6 addresses configured for sub-interfaces, VRRP6, DHCPv6, and L3VPN |
|
Reliability
|
LACP
E-Trunk Ethernet OAM (IEEE 802.3ah and IEEE 802.1ag) ITU-Y.1731 DLDP LLDP BFD for BGP, BFD for IS-IS, BFD for OSPF, BFD for static routes |
|
VXLAN
|
VXLAN L2 and L3 gateways
Centralized and distributed gateway BGP-EVPN Configured through the NETCONF protocol |
|
SVF
|
Acting as the parent node to vertically virtualize downlink switches and APs as one device for management
Two-layer client architecture ASs can be independently configured. Services not supported by templates can be configured on the parent node. Third-party devices allowed between SVF parent and clients |
|
iPCA
|
Marking service packets to obtain the packet loss ratio and number of lost packets in real time
Measurement of the number of lost packets and packet loss ratio on networks and devices |
