1. 1600mm(63") aluminum shatfs for easy loading and unloading of the rolls
2. Capable of laminating release liner films and linerless filmes
3. Foot pedal controll for hands-free operation
4. Silicone Lamination rolls with anti-stick surface, easy to clean
5. Emergency stop switch and infrared ray finger protection device offering safety guarantee
6. Heated upper roller with preset electronic temperature regularion ---(Room-60 centigrade)
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
110V/220V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Fayon
-
Dimension(L*W*H):
-
2000*660*1300mm
-
Weight:
-
235 KG
-
Product name:
-
Fayon laminator
-
Max laminating width:
-
1620mm
-
Speed:
-
0-7m/min
-
Temperature:
-
Room-60 Celsius
-
Media applicable:
-
Advertising paper and board,glass,etc
-
Base Material:
-
Liner film linerless film and crystal film
-
Power consumption:
-
0.8-1kw/h
-
Laminating thickness max:
-
35mm
Quick Details
-
Packaging Type:
-
case
-
Packaging Material:
-
Wood
-
Driven Type:
-
Pneumatic
-
Voltage:
-
110V/220V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Fayon
-
Dimension(L*W*H):
-
2000*660*1300mm
-
Weight:
-
235 KG
-
Product name:
-
Fayon laminator
-
Max laminating width:
-
1620mm
-
Speed:
-
0-7m/min
-
Temperature:
-
Room-60 Celsius
-
Media applicable:
-
Advertising paper and board,glass,etc
-
Base Material:
-
Liner film linerless film and crystal film
-
Power consumption:
-
0.8-1kw/h
-
Laminating thickness max:
-
35mm
Product Description

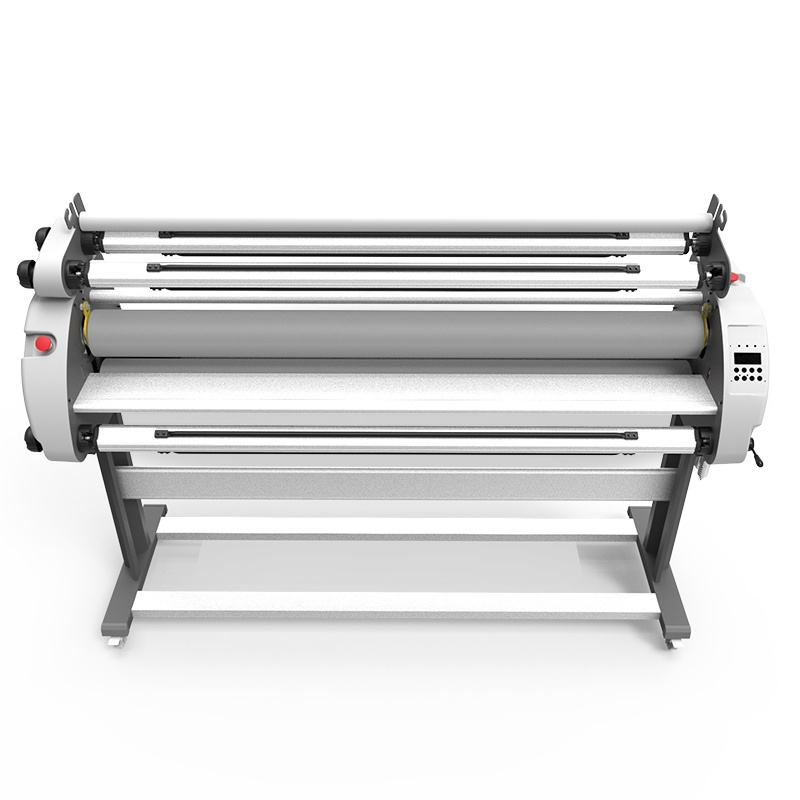

Fayon 64 inches 1620mm large format cold laminator machine FY1600DA roll to roll laminator
Features of 1600DA laminator
Rigid Displays
Printed Exible Material
Flexible Indoor Displays
Floor Graphics
Backlit Displays
Pop-Up Displays
Rigid Outdoor Displays
Printed Exible Material
Flexible Indoor Displays
Floor Graphics
Backlit Displays
Pop-Up Displays
Rigid Outdoor Displays
Detailed Images
High performance laminator suitable for industrial applications. It allows laminating , mounting and incapsulating prints, aplying application tape and double-sided adhesive; compatible with all kinds of cold laminating film on the market.
Size Information
|
Model Number
|
|
FY-1600DA
|
|
|
||||
|
Max Laminating Width
|
|
1620mm (63"）
|
|
|
||||
|
Max Laminating Thickness
|
|
35mm
|
|
|
||||
|
Max Speed
|
|
7m/min
|
|
|
||||
|
Max Roller Temp
|
|
60 degree centigrade
|
|
|
||||
|
Roller Heating
|
|
Infrared (top)
|
|
|
||||
|
Preheating Time
|
|
10-15 min
|
|
|
||||
|
Silicone Roller Diamater
|
|
130mm
|
|
|
||||
|
Silicone Thickness
|
|
6mm
|
|
|
||||
|
Roller Lift up
|
|
Pneumatic cylinder
|
|
|
||||
|
Speed Range
|
|
Adjustable, 0-10m/min
|
|
|
||||
|
Input Voltage
|
|
AC220V, 110V(Custom)
|
|
|
||||
|
Power Input
|
|
0.8-1.0kw/h
|
|
|
||||
|
Machine Sizes (mm)
|
|
2000*660*1300(D*W*H)
|
|
|
||||
|
Shipping Dimensions(mm)
|
|
2240*750*810mm(D*W*H)
|
|
|
||||
|
Net Weight
|
|
180kg
|
|
|
||||
|
Shipping Weight
|
|
210kg
|
|
|
||||
|
Warranty
|
|
1 year
|
|
|
||||
|
* All specification is subject to change without prior notice.
|
|
|
|
|
||||
Related Products
Packing&Shipping
Company Introduction
Delivery
1. The printer is large and heavy, without special requirement , we usually send it by
sea shipping
.
2. For different countries , the sea shipping time will arrange from 1 week to 1 month or longer , please consult our sales before delivery.
3. Bill of lading will be send to pick up package at seaport.
4. Free sea shipping offered. But customers need to pay import tax,destination seaport fee , customs clearance cost .
5. Customs clearance agent are needed if customers do not have import right.
6. If customers have shipping agent in China, pls consult our sales for FOB price.
2. For different countries , the sea shipping time will arrange from 1 week to 1 month or longer , please consult our sales before delivery.
3. Bill of lading will be send to pick up package at seaport.
4. Free sea shipping offered. But customers need to pay import tax,destination seaport fee , customs clearance cost .
5. Customs clearance agent are needed if customers do not have import right.
6. If customers have shipping agent in China, pls consult our sales for FOB price.
