Quick Details
-
Brand Name:
-
Fect
-
Voltage:
-
380V
-
Power:
-
1.5kw
-
Dimension(L*W*H):
-
1200*1200*800mm
-
Weight:
-
480 kg
-
Name:
-
Small automatic firework cnc paper core cardboard tube cutter
-
Product name:
-
core cutting machine
-
Keyword:
-
paper core cutting machine
-
Speed:
-
30-60m/min
-
Application:
-
Producing
-
Finished Products:
-
paper tube
-
Feature:
-
Cheaper
-
Advantage:
-
Easy Operation
-
Model:
-
PFB-600
-
Machine type:
-
Output
Quick Details
-
Production Capacity:
-
30-60m/min
-
Processing Type:
-
paper core cutting machine
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Fect
-
Voltage:
-
380V
-
Power:
-
1.5kw
-
Dimension(L*W*H):
-
1200*1200*800mm
-
Weight:
-
480 kg
-
Name:
-
Small automatic firework cnc paper core cardboard tube cutter
-
Product name:
-
core cutting machine
-
Keyword:
-
paper core cutting machine
-
Speed:
-
30-60m/min
-
Application:
-
Producing
-
Finished Products:
-
paper tube
-
Feature:
-
Cheaper
-
Advantage:
-
Easy Operation
-
Model:
-
PFB-600
-
Machine type:
-
Output

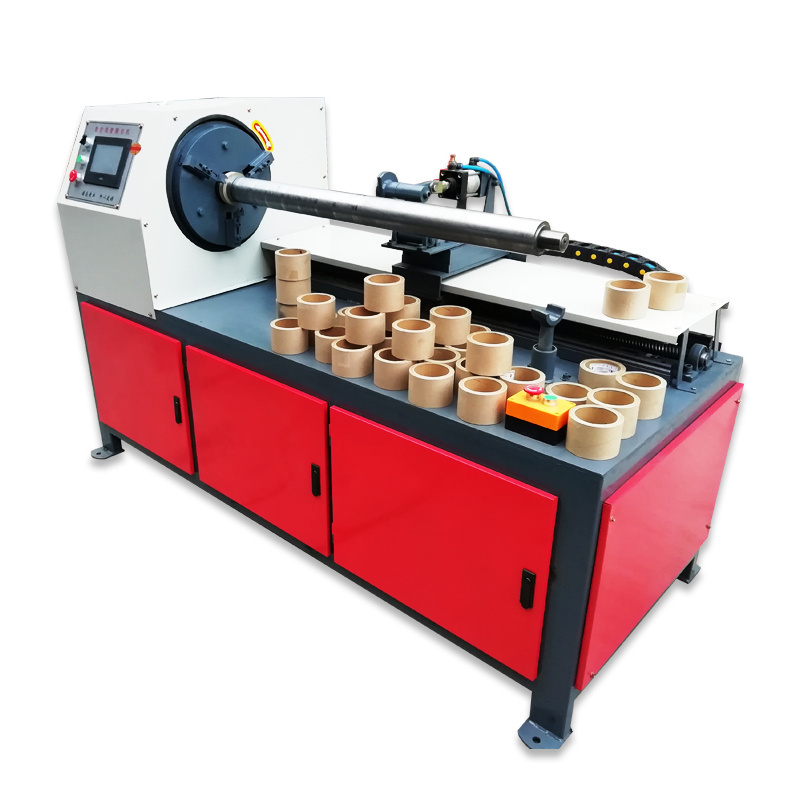

Small automatic firework cnc paper core cardboard tube cutter
♦Application♦
This paper core cutting machine is suitable for cutting all kinds of the tube which short-length and high production. And with Pneumatic cutting, then Easy operation with a low price.
♦Technical parameters♦
|
Length of master tube: |
≤600mm(customizable) |
|
Paper core cutting width: |
1-600mm |
|
Standard core diameter: |
3 inch (customizable) |
|
Paper core cutting thickness: |
1—20mm |
|
Paper core cutting speed: |
30-60m/min |
|
Cutting knife feeding method: |
pneumatic |
|
Control method: |
Servo motor control, PLC |
|
Main motor power: |
3kw |
|
Cutting blade power: |
1.5kw |
|
Weight: |
480KG |
|
Dimension: |
1200*1200*800mm(Differences between different models) |
♦Features♦
1. Cutting blade and the grinding device does move, only the paper tube rotates, which reduces the attrition of the blade and grinding device.
2. It's very easy to change the grinding device.
3.CNC input, pipe cutting length range is large.
4.The pipe cutting speed is fast and the accuracy is high.
5.Cutting surface is smooth.
♦Details♦
|
Control panel
Manual input adjustment ,
Customizable languages
Adjustable parameter:
cutting length,cutting quantity,cutting speed,
cutting multiple sections of different lengths,
|
|
|
Cutter holder
Adjustable cutter position,
for different thickness paper tubes
|
|
|
Pipe cutting guideway
Servo motor controlled coasting
High-precision movement,the error is less than 0.2mm
|
|
|
Pipe cutting spindle
Can change spindles of different sizes
|
♦Factory♦
♦Factory♦-
Package Detail Wooden case/Small automatic firework cnc paper core cardboard tube cutter Package Size 1300*1300*1000mm Gross Weight 580kg
1.Pre-Sales Service:
Our service team will glad to reply inquiry and consulting support in every way as soon
as we can, we can support sample testing.
2. Package & Delivery
Our service team will pack goods under export standard, and prepare delivery in time
as agreement.
3.Technical Support:
Free Replacement of accessories within 1 year
Remote assistance,24 hours online technical service
Detailed operation video
