Heavy duty truck spray booth,length can be 8 meters,12 meters or 18 meters,20 meters,or as you require.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
3Ph, 380V/415V/220V, 50Hz/60Hz
-
Disc Dia.:
-
Painting booth for vehicle
-
No Load Speed:
-
0.35m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Vico
-
Model Number:
-
VPB-SD68
-
Warranty:
-
1 year
-
Product name:
-
Automotive Paint Spray Booth
-
Market:
-
Auto body shop Collision center,Collision center,Body shops
-
Accessories:
-
Blowers,diesel burner,damper,lights,wall panels,basement included
-
Heating System:
-
Diesel burner
-
Lighting System:
-
Ceiling lights,optional side LED lights
-
Wall Panel:
-
50 mm thick EPS boards
-
Usage:
-
Car spray and baking Collision repair
-
Filter system:
-
Pre-filter,ceiling filter,glass fiber filter
-
Blower type:
-
Centrifugal fans
-
Certification:
-
CE approved
Quick Details
-
Power:
-
10KW
-
External Size:
-
7000*5300*3300 mm
-
Internal Size:
-
6900*3900*2650 mm
-
Voltage:
-
3Ph, 380V/415V/220V, 50Hz/60Hz
-
Disc Dia.:
-
Painting booth for vehicle
-
No Load Speed:
-
0.35m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Vico
-
Model Number:
-
VPB-SD68
-
Warranty:
-
1 year
-
Product name:
-
Automotive Paint Spray Booth
-
Market:
-
Auto body shop Collision center,Collision center,Body shops
-
Accessories:
-
Blowers,diesel burner,damper,lights,wall panels,basement included
-
Heating System:
-
Diesel burner
-
Lighting System:
-
Ceiling lights,optional side LED lights
-
Wall Panel:
-
50 mm thick EPS boards
-
Usage:
-
Car spray and baking Collision repair
-
Filter system:
-
Pre-filter,ceiling filter,glass fiber filter
-
Blower type:
-
Centrifugal fans
-
Certification:
-
CE approved
Product Description

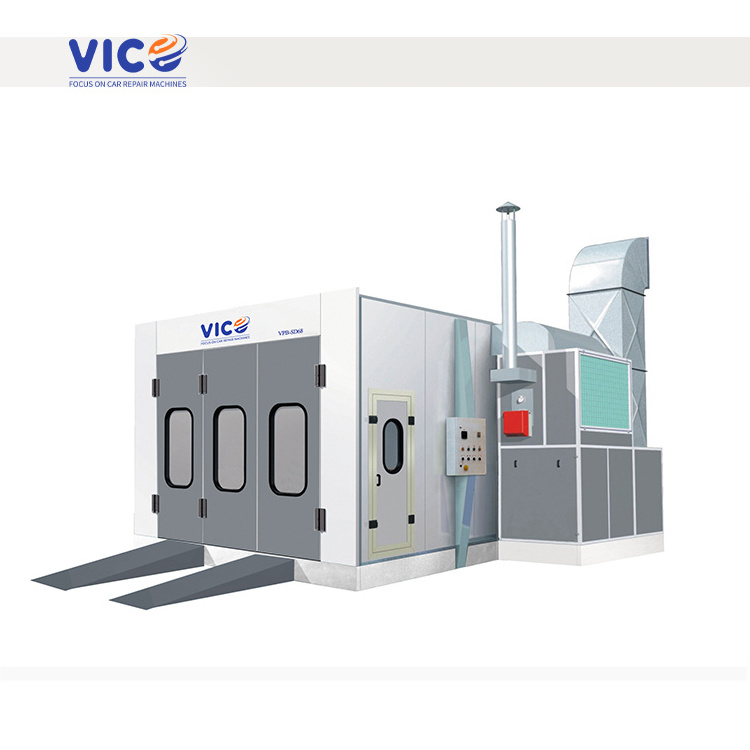

Vico Car Spray booths Paint room Auto body spray booth VPB-SD68 Paint booth spray
Auto body collision repair spray painting booth
Specification
|
Painting booth description
|
One of the hottest sale booths for export,nice performance and good price spray booth
|
|
Outer dimension:(mm)
|
7000*5300*3300mm
|
|
Inner dimension:(mm)
|
6900*3900*2650mm
|
|
Main door size:
|
3000mm(W)*2700mm(H), side small door 680mm*1800mm
|
|
Appearance color
|
Red/ Blue / White grey/ Orange
|
|
Frame system
|
Frame retardant polystyrene insulation board:50 mm thickness, galvanized steel assembled roof. Aluminum alloy front door frame and galvanized steel fixed room frame. The floor is assembly formed by corrosion-resistant rectangular tube with 3 rows of grids and 2 rows of checkered plates. Bottom with glass filters. 2 units drive on ramps.
|
|
Air circulation system
|
2*4kw double channels centrifugal outer-motor ventilating machines, air flow:25000m3/h, exhaust duct is formed from superior
galvanized steel sheet and flange; On load air speed:0.38m/s; Air exchange rate:320 times/h |
|
Exhaust
|
None. (Optional 1 set centrifugal fan, model YDW 5.5KW blower capacity 15000 m
3
/h)
|
|
Filter system
|
High-efficiency imported glue-spreading cotton (VF-600) ceiling filter
Basement bottom grills with bottom glass filters system. |
|
Heating system
|
RIELLO G10 burner, Max. Calorific value:180,000kcal/h.
Exchanger Argon arc welded SUS304 stainless steel Max. Temperature :80℃； Temperature rise rate:5-8min(20-60℃)； |
|
Lighting system
|
Ceiling with two lines of lighting box, each line 4 units.
total with 24pcs of 36w LED lamps. Illuminance:800Lux |
|
E-controlling system
|
Adopt superior electronic components, main circuit has multi-protection.
Function: Lighting switch, heating time setting, normal temperature painting, constant temperature painting, drying switch, emergency stop switch, cumulative time etc. |
|
Total power
|
10KW
|
|
Electric power supply
|
3PH, 220V/380V/415V, 50Hz/60Hz
|
Details Images
