Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Canghai
-
Dimension(L*W*H):
-
7450*1000*1800mm
-
Weight:
-
2500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Corrugated cardboard machine
-
Usage:
-
Making Carton
-
Color:
-
Optional
-
Function:
-
Single facer machine
-
Brand:
-
Canghai
-
Material:
-
High quality steel
-
MOQ:
-
1set
-
OEM:
-
Accept
Quick Details
-
Application:
-
Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles
-
Packaging Material:
-
Plastic, Metal, Wood
-
Voltage:
-
380V
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Canghai
-
Dimension(L*W*H):
-
7450*1000*1800mm
-
Weight:
-
2500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Corrugated cardboard machine
-
Usage:
-
Making Carton
-
Color:
-
Optional
-
Function:
-
Single facer machine
-
Brand:
-
Canghai
-
Material:
-
High quality steel
-
MOQ:
-
1set
-
OEM:
-
Accept

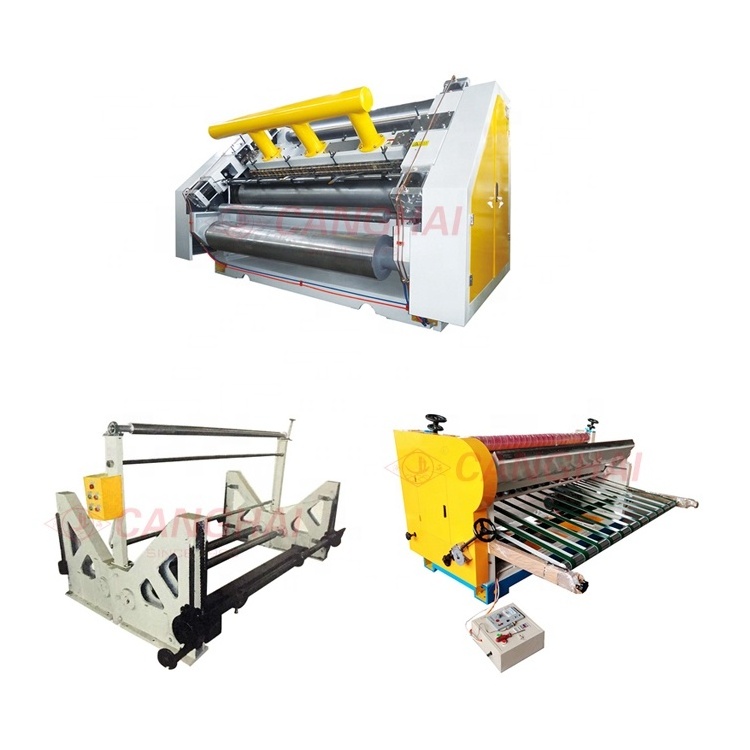

Canghai corrugated cardboard fingerless single facer machine in packaging line
1.Designed speed: 60-100 m/min
2. Available width: 1400 mm,1600 mm,1800 mm.
3. Flute type: A, C, B, E, F for option
4. Electric heating system of corrugator.
5. Immersed / closed gear box lubricating to reduce noise, universal joint power transmission, to insulate vibration.
6. Adjustment of upper corrugating roller, pressure roller, and glue roller, is controlled by pneumatic system
7. Suction blower type paper delivering with air speed adjusting device, to keep good flute shape under high speed running
8. Bearings of upper/lower corrugating roller, and pressure roller, use high-temperature-resist lubrication to keep running
smoothly and durably
9. Gluing section applies with automatic, self-circulating glue supply
10. Upper and lower corrugating machine rollers are made of 48CrMo alloy steel, with heated-treatment for hardness HRC56-60,
and the surface is well treated by grind , board machinery corrugating machine.
11. Surface treatment of gluing roller: Engrave reticulate and chrome plated .
|
Technological Parameters |
MJF-80-1800 Standard |
MJF-120-1800 Middle-speed |
|
Line size L*W*H(m) |
56×4.5×4.2 |
67×4.5×4.2 |
|
Factory size L*W*H(m) |
60×11×5 |
72×11×5 |
|
Total Power (about) |
100kw |
180kw |
|
Steam Cost |
0.8~1.2Mpa (Advise 2t/h boiler) |
0.8~1.2Mpa (Advise 4t/h boiler) |
|
Starch Cost (g/m2) |
20-26 |
20-26 |
|
Raw paper width (mm) |
1800 |
1800 |
|
Mechanical Speed |
80m/min |
120 m/min |
|
Economical speed |
60m/min |
90m/min |
|
Shift capacity (*104m/8h) |
3 |
4.5 |
|
Transversely cutting precision |
±1 |
±1 |
|
Transversely cutting scope (mm) |
500-9999 |
500-9999 |
|
Slitting scope (mm) |
145-1800 |
160-1800 |
|
Slitting precision (mm) |
±1 |
±1 |
|
Workers |
8-11 |
8-11 |
