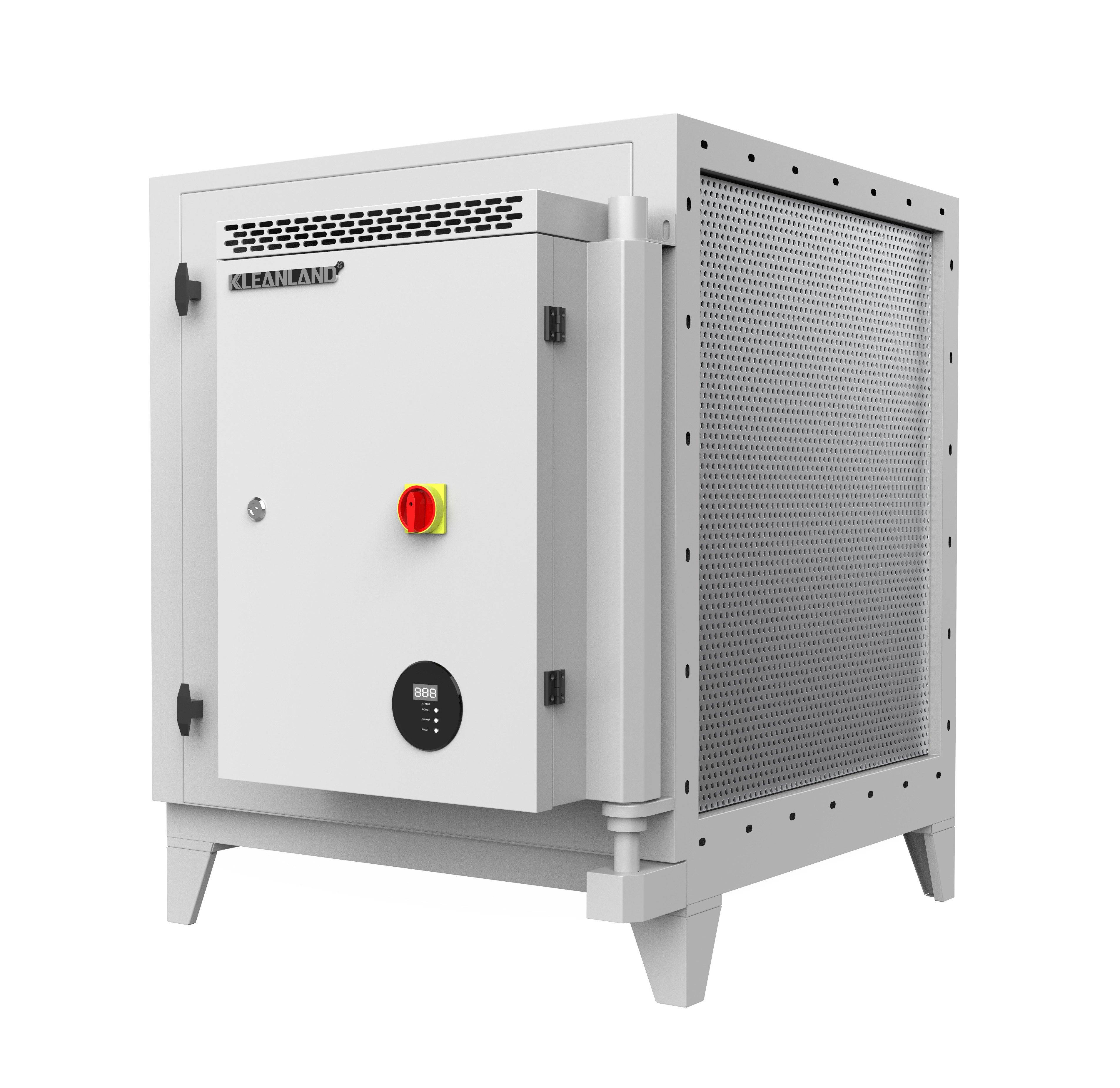

Air filter machine mist eliminator electrostatic oil smoke cleaner

Features:
Hard-core Safety Features
Primary electrical isolation,access dorr interlock,keylocking latch,IP55 Electrical Enclosure,the list goes on.

Electrical Safety Guaranteed

Best-selling filters are UL listed and CE certified.All filters are configured with multiple protection schemes.

User-Friendly Interface

Real-time status readings,intuitive diagnostics and controls,selective operating modes,BMS connectivity,remote control capability,etc are made available.

Eliminates up to 98% of Smoke Particles
Smokeless emission at street level,lowered cooking odor,reduces grease build-up in the duct,minimal smoke pollution to neighbourhood,you name it.

Bidirectional Airflow Direction
A hassle-free alternative to traditional filters with fixed airflow direction
Optional Auto-Clean Function

Improved filtration efficiency,and significant savings labor and money in a long run.

Versatile Handing Capactity

Single filter handing capacity ranges from 2000 to 72000m3/h and above,.it can be  configured to accommodate almost any air flow
"Pick and Mix"Solution

Stackable filter structure and modular selection of add-on features enable contractors to create bespoke integrated solutions

Q1: How does the auto-clean device work
A1:Enclosed please kindly check the diagram.The auto-clean device consist of solenoid value,water pipe,roated nozzles and Water-heating Auto-clean Tank.The water-heating auto-clean tank consist of Programmable Logic Controller (PLC),water pump and water tank.The roated nozzles are controlled by solenoid valves.

Q2:Whether detergent consumption is needed during cleaning?
A2:As oil mist is very easy to clean with hot water for our honeycomb filter cells.Detergent is no need in our auto-clean proces.The water in the tank will be heated and used to wash the filter cells.

Q3:What is the washing cycle?
A3: Washing period depends on your setting as well as the washing time.Generally the ESP has to be washed every three to four weeks by auto-clean device.If your fume is heavy,you can shorten the washing period.

Q4: Please advice the drain connection.
A4: Please kindly check the attached introduction for the structure and connections details. With the auto-clean device,the ESP can operate maintenance-free for along time,thus your time,cost and trouble of frequent manual cleaning can be saved.

Q5: Installation.
A5: You can install our product inside your kitchen,shown in the attached image.For installation,you can some kind of ventilation engineering company who is specialized in ventilation installation and knows well the local law about kitchen air filter's installation.You can get answers or advices from this ventilation engineering company about how to install our product with permission of the law

Q6: Whether there is blanking plate?
A6: Enclosed pls kindly find attached flange image.A blanking plate will be added between the flanges.Otherwise,the total air leakage factor of the whole ESP system is about 15%.With trials and researches carried by our professional technicians,the air leakage factor is reliable and workable for purification efficiency as well as running.

Q7: All product certifications&other marketing materials.
A7: The certificates are show in the catalogue(refer to Catering Catalogue Page 17&18).The most requested certificate(CE)is attached.Our ESP gets 33patents,and the design is unique.There are many videos which can help your marketing.They shows the company image,scale,technical;efficiency of filter and some maintenance of the products.
