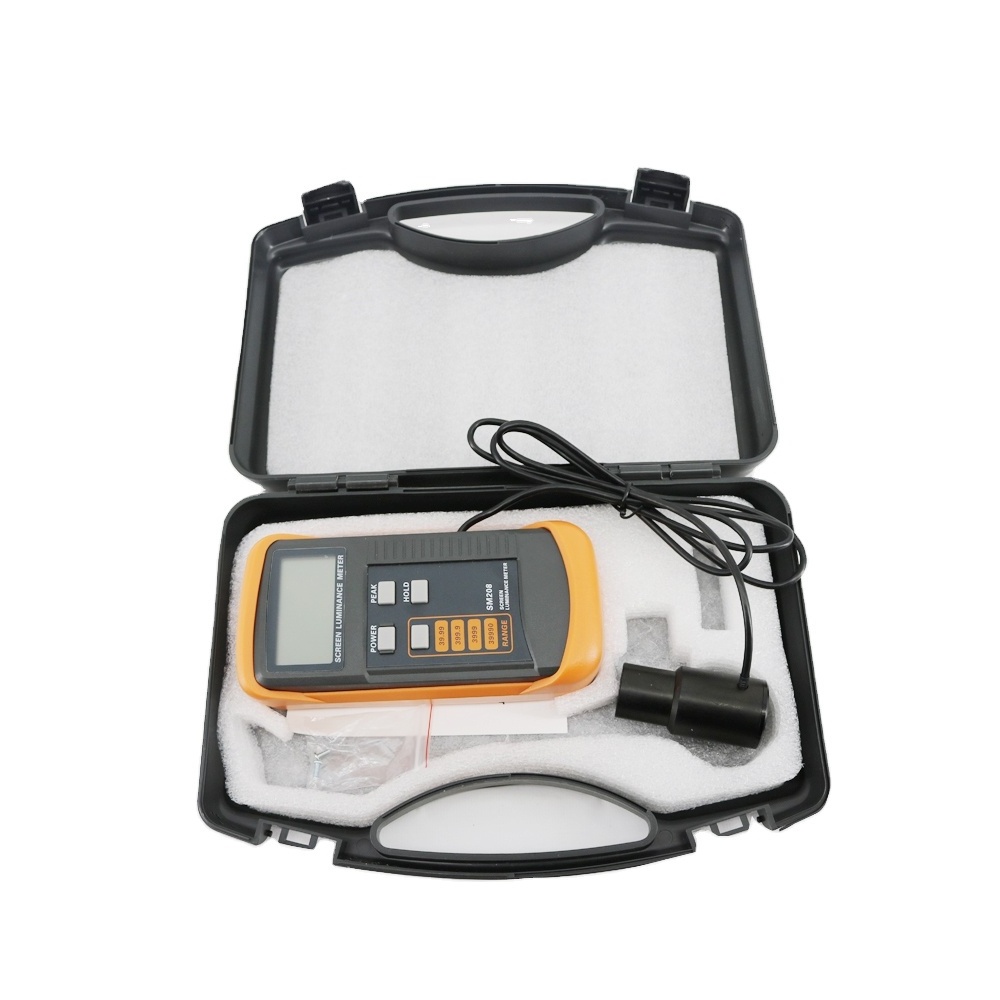

SM208 Digital Screen Brightness Meter LED Display Lightness Tester

I.Features:

Adopting a detector powered by a silicone photocell with high stability, photostability, and shock resistance, strict vision correction and accurate photometric measurement can be realized.

With a wide measuring range, it can measure between 0.01-39990cd/m2 without a dimmer.

It is a digital display with good indication reproducibility, data latching and peak value latching functions;

With very low power consumption, it can operate continuously for 100 hours on a 9V layer-built battery;

Mini light probe, measuring angle <10O;

Compact, portable, easy to use

II.Specification:

Measuring range 0.01-39990cd/m2
Measuring distance<&=1m
Object size >&=Dia20, increasing with the increase of measuring distance

Precision:
<&=+0.5% of the measured value +1 figure
Indication error:
<&=+0.5% of the measured value +1 figure (relative to NIM standard)
Spectrum response characteristics:
In accordance with the standard of national grade I illuminometer
Linearity error:
<&=+0.2% of the measured value +1 figure
Temperature characteristics:
<&=+0.1% of the measured value +1 figure
Operating environment:
Temperature: (0-40)0C
Relative humidity: <&=85%
Dimensions and weight: 149X71X41mm3
Power supply: 9V layer-built battery (model 6F22)
